Engine Compartment Pre-Fuse Box Wiring Diagram - PE54.15-P-2522-97IBA
Model 177

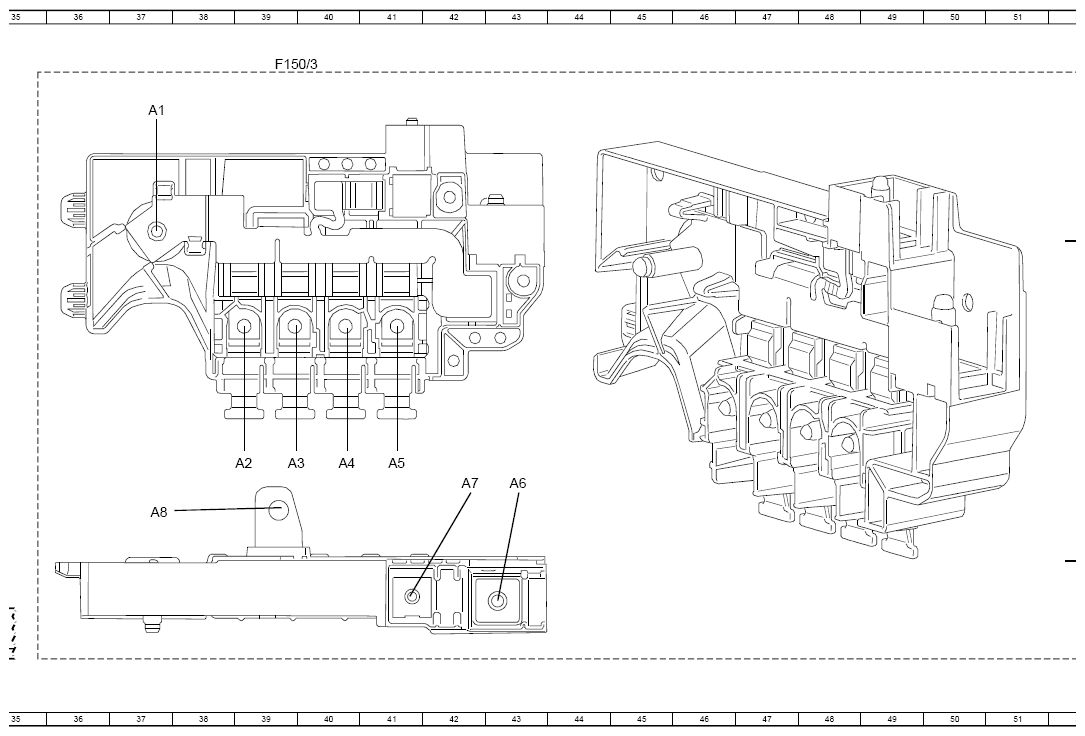

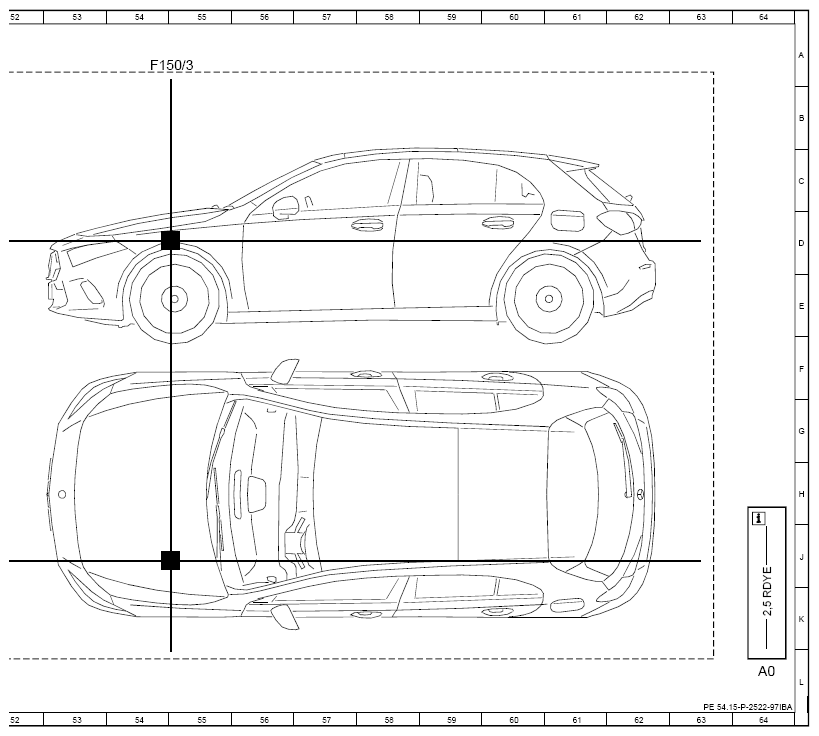

Fuse box F150/3
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 64L |
| Code 426 | 8G-DCT | 17A |
| Code B01 | 48V technology | 9J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 1E |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 19F |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 13A |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 29A |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 19E |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 11A |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 24A |
| Code M654 | 4-CYLINDER INLINE DIESEL ENGINE OM654 | 27A |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 8J |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 1F |
| F150/1 | Starter battery pre-fuse box | 4L |
| F150/1f2 | Fuse 2 | 2K |

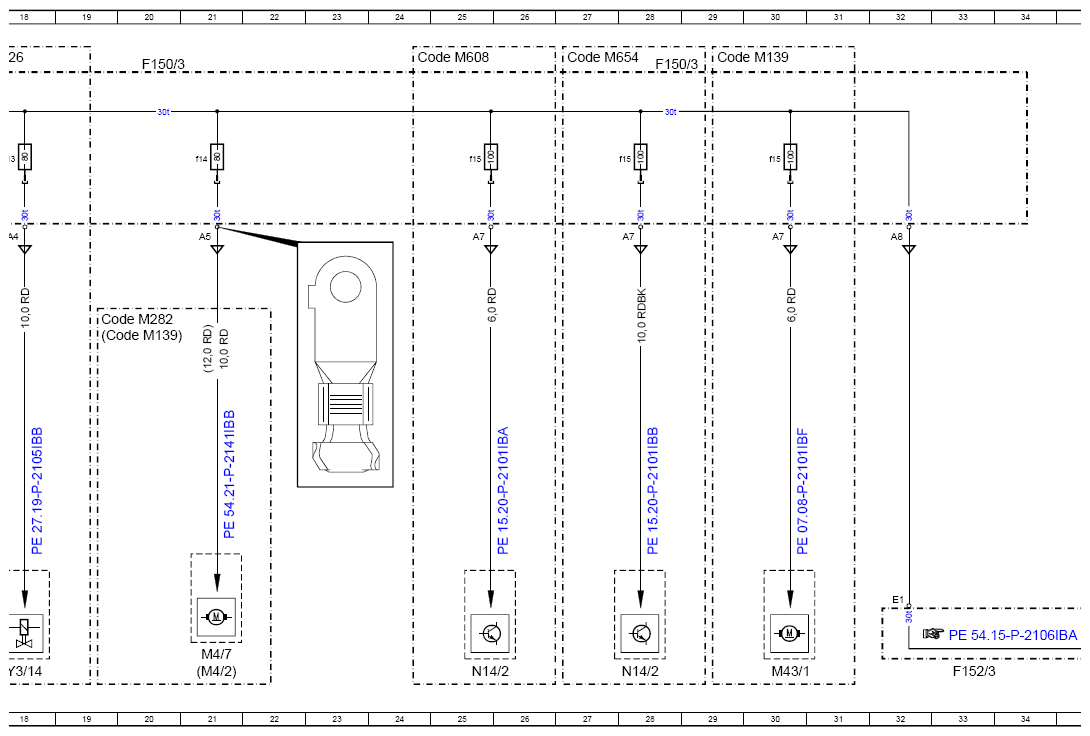

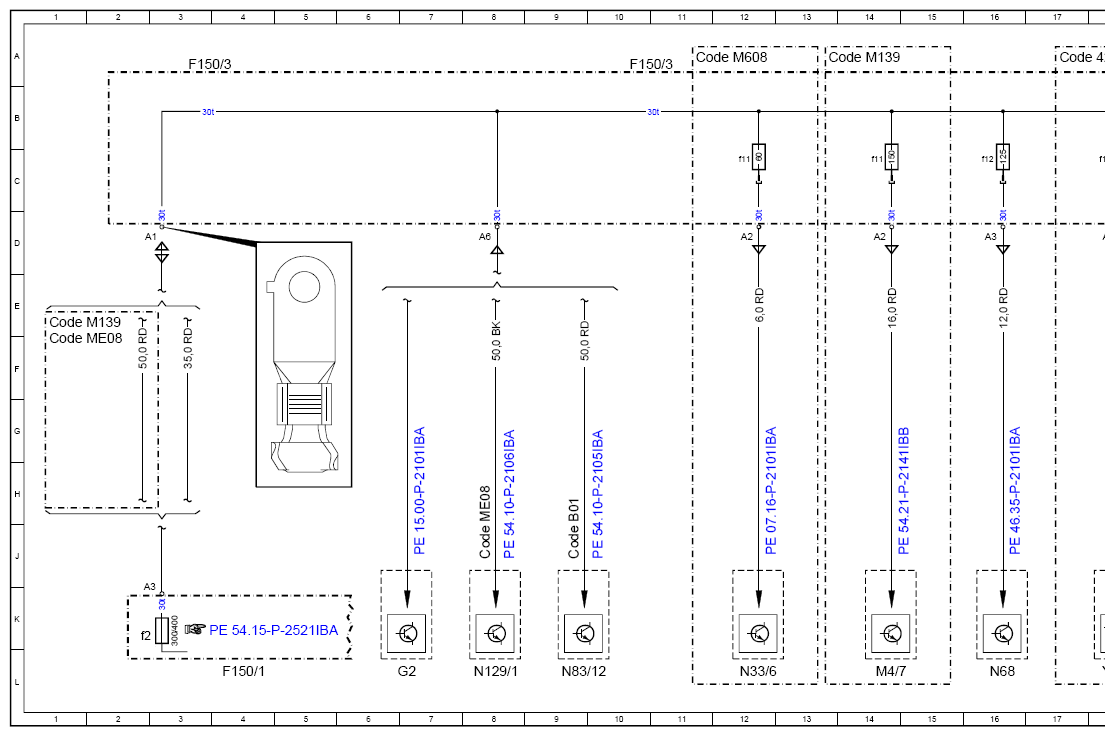

| F150/3 | Engine compartment pre-fuse box | 3A |
| F150/3 | Engine compartment pre-fuse box | 10A |
| F150/3 | Engine compartment pre-fuse box | 20A |
| F150/3 | Engine compartment pre-fuse box | 28A |
| F150/3 | Engine compartment pre-fuse box | 39A |
| F150/3 | Engine compartment pre-fuse box | 54A |
| F150/3f11 | Fuse 11 | 12C |
| F150/3f11 | Fuse 11 | 14C |
| F150/3f12 | Fuse 12 | 16C |
| F150/3f13 | Fuse 13 | 18C |
| F150/3f14 | Fuse 14 | 21C |
| F150/3f15 | Fuse 15 | 25C |
| F150/3f15 | Fuse 15 | 30C |
| F150/3f15 | Fuse 15 | 28C |
| F152/3 | Engine compartment fuse and relay module | 33L |
| G2 | Alternator | 7L |
| M4/2 | Coolant fan motor | 21L |
| M4/7 | Fan motor | 14L |
| M4/7 | Fan motor | 21L |
| M43/1 | Low temperature coolant pump | 30L |
| N129/1 | Power electronics control unit | 8L |
| N14/2 | Glow output stage | 25L |
| N14/2 | Glow output stage | 28L |
| N33/6 | Fuel preheater control unit | 12L |
| N68 | Electrical power steering control unit | 16L |
| N83/12 | DC/DC converter (48 V) control unit | 9L |
| Y3/14 | Dual clutch transmission fully integrated transmission control electrohydraulic controller unit | 18L |
