Connector Separation Point Wiring Diagram - PE54.18-P-2300-97IBE
Model 177

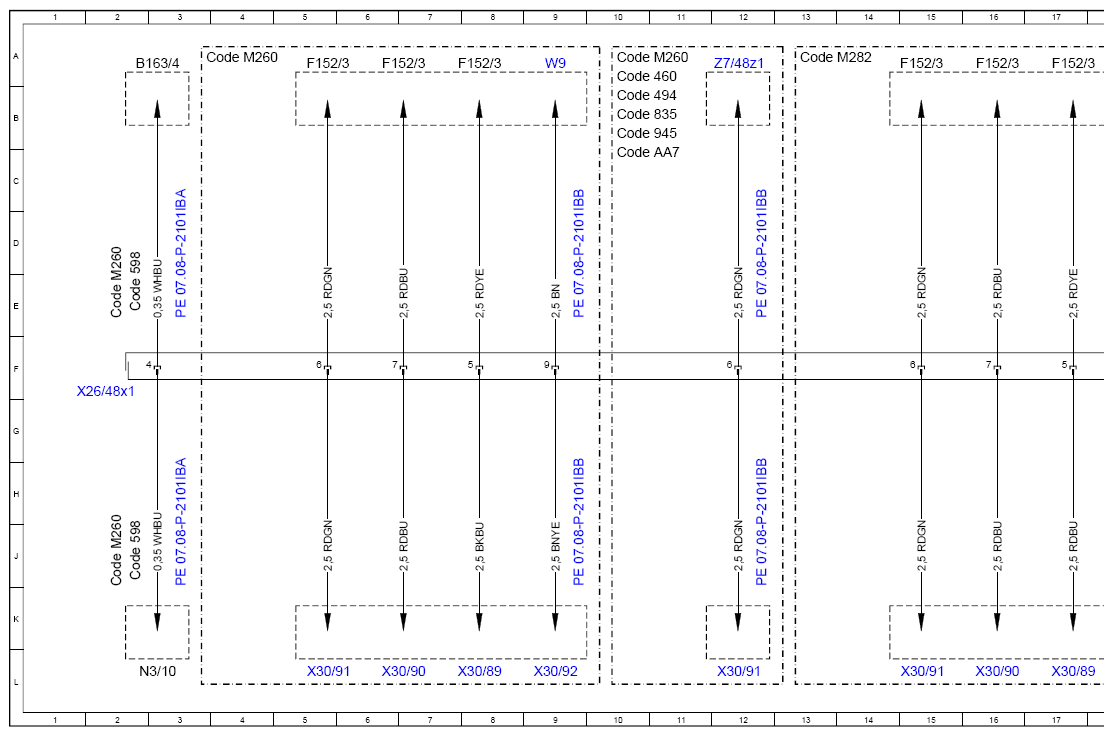

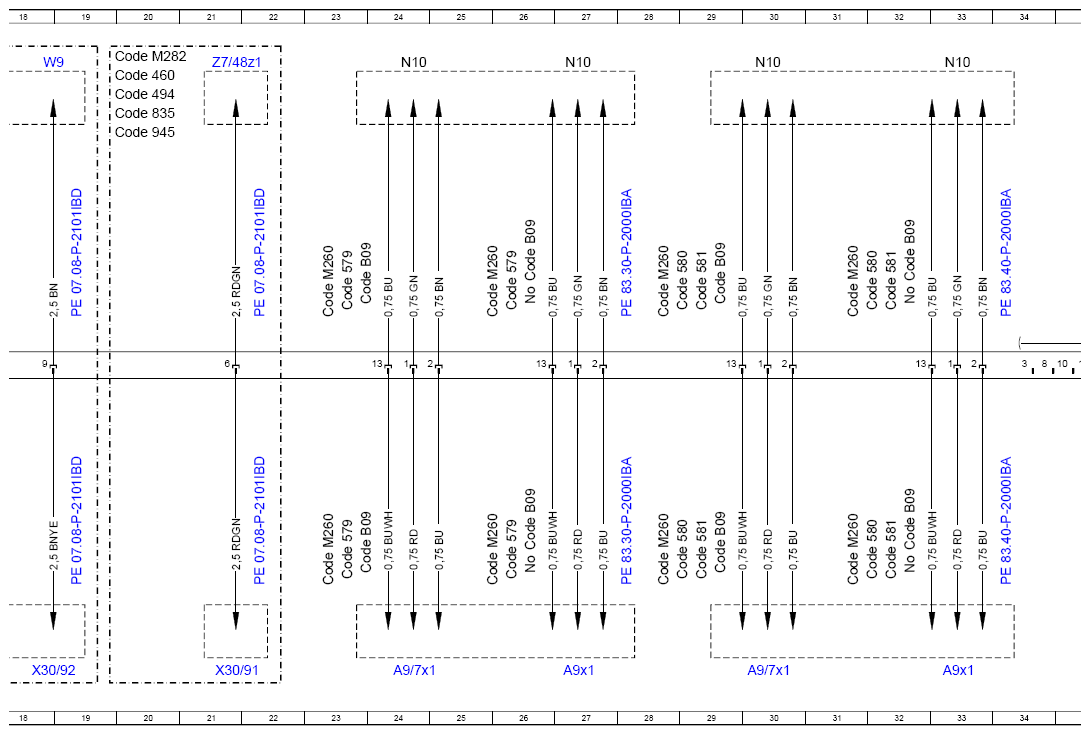

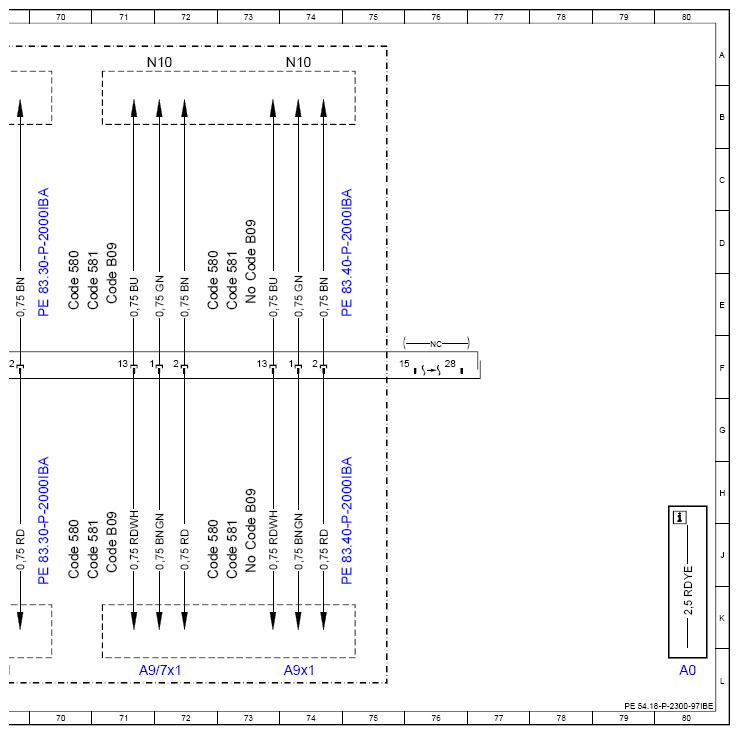

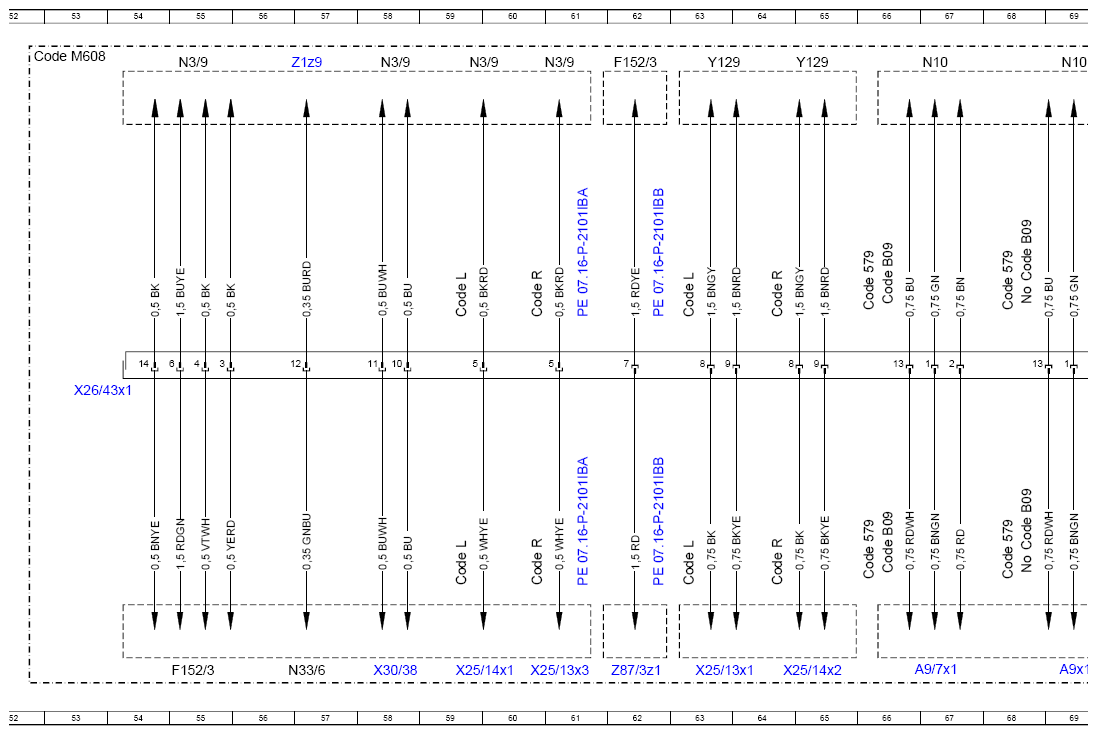

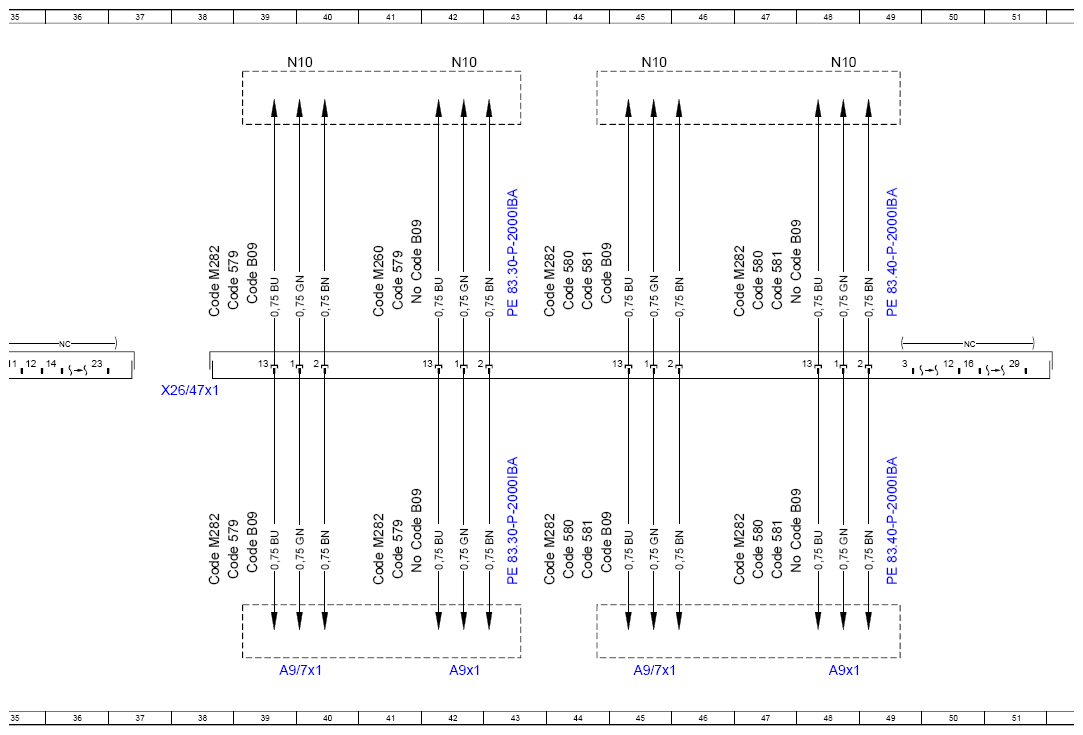

X26/48x1, X26/47x1, X26/43x1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 80L |
| A9/7x1 | Electrical connector for refrigerant compressor with magnetic clutch | 24L |
| A9/7x1 | Electrical connector for refrigerant compressor with magnetic clutch | 30L |
| A9/7x1 | Electrical connector for refrigerant compressor with magnetic clutch | 39L |
| A9/7x1 | Electrical connector for refrigerant compressor with magnetic clutch | 45L |
| A9/7x1 | Electrical connector for refrigerant compressor with magnetic clutch | 67L |
| A9/7x1 | Electrical connector for refrigerant compressor with magnetic clutch | 71L |
| A9x1 | Refrigerant compressor electrical connector | 27L |
| A9x1 | Refrigerant compressor electrical connector | 33L |
| A9x1 | Refrigerant compressor electrical connector | 42L |
| A9x1 | Refrigerant compressor electrical connector | 48L |
| A9x1 | Refrigerant compressor electrical connector | 69L |
| A9x1 | Refrigerant compressor electrical connector | 74L |
| B163/4 | Temperature sensor upstream of gasoline particulate filter | 2A |
| Code 460 | Canada version | 10A |
| Code 460 | Canada version | 19A |
| Code 494 | USA version | 10B |
| Code 494 | USA version | 19B |
| Code 579 | Single-zone air conditioning | 23E |
| Code 579 | Single-zone air conditioning | 23J |
| Code 579 | Single-zone air conditioning | 26J |
| Code 579 | Single-zone air conditioning | 26E |
| Code 579 | Single-zone air conditioning | 39J |
| Code 579 | Single-zone air conditioning | 41J |
| Code 579 | Single-zone air conditioning | 41E |
| Code 579 | Single-zone air conditioning | 39E |
| Code 579 | Single-zone air conditioning | 68J |
| Code 579 | Single-zone air conditioning | 66J |
| Code 579 | Single-zone air conditioning | 66E |
| Code 579 | Single-zone air conditioning | 68E |
| Code 580 | Air conditioning | 29J |
| Code 580 | Air conditioning | 29E |
| Code 580 | Air conditioning | 32J |
| Code 580 | Air conditioning | 32E |
| Code 580 | Air conditioning | 44J |
| Code 580 | Air conditioning | 44E |
| Code 580 | Air conditioning | 47E |
| Code 580 | Air conditioning | 47J |
| Code 580 | Air conditioning | 70J |
| Code 580 | Air conditioning | 70E |
| Code 580 | Air conditioning | 73J |
| Code 580 | Air conditioning | 73E |
| Code 581 | Automatic air conditioning | 29J |
| Code 581 | Automatic air conditioning | 29E |
| Code 581 | Automatic air conditioning | 32J |
| Code 581 | Automatic air conditioning | 32E |
| Code 581 | Automatic air conditioning | 44J |
| Code 581 | Automatic air conditioning | 44E |
| Code 581 | Automatic air conditioning | 47E |
| Code 581 | Automatic air conditioning | 47J |
| Code 581 | Automatic air conditioning | 73J |
| Code 581 | Automatic air conditioning | 71J |
| Code 581 | Automatic air conditioning | 73E |
| Code 581 | Automatic air conditioning | 71E |
| Code 598 | Gasoline particulate filter (OPF) with sensor system | 2J |
| Code 598 | Gasoline particulate filter (OPF) with sensor system | 2E |
| Code 835 | Additional parts for South Korea vehicles | 10B |
| Code 835 | Additional parts for South Korea vehicles | 19B |
| Code 945 | China Stage 6 exhaust treatment | 10B |
| Code 945 | China Stage 6 exhaust treatment | 19B |
| Code AA7 | POWER VARIANT UPRATED 2 | 10C |
| Code B09 | Refrigerant compressor with magnetic clutch | 24E |
| Code B09 | Refrigerant compressor with magnetic clutch | 24J |
| Code B09 | Refrigerant compressor with magnetic clutch | 26J |
| Code B09 | Refrigerant compressor with magnetic clutch | 26E |
| Code B09 | Refrigerant compressor with magnetic clutch | 32J |
| Code B09 | Refrigerant compressor with magnetic clutch | 29J |
| Code B09 | Refrigerant compressor with magnetic clutch | 32E |
| Code B09 | Refrigerant compressor with magnetic clutch | 29E |
| Code B09 | Refrigerant compressor with magnetic clutch | 42J |
| Code B09 | Refrigerant compressor with magnetic clutch | 39J |
| Code B09 | Refrigerant compressor with magnetic clutch | 42E |
| Code B09 | Refrigerant compressor with magnetic clutch | 39E |
| Code B09 | Refrigerant compressor with magnetic clutch | 45E |
| Code B09 | Refrigerant compressor with magnetic clutch | 48E |
| Code B09 | Refrigerant compressor with magnetic clutch | 45J |
| Code B09 | Refrigerant compressor with magnetic clutch | 48J |
| Code B09 | Refrigerant compressor with magnetic clutch | 68J |
| Code B09 | Refrigerant compressor with magnetic clutch | 66J |
| Code B09 | Refrigerant compressor with magnetic clutch | 66E |
| Code B09 | Refrigerant compressor with magnetic clutch | 68E |
| Code B09 | Refrigerant compressor with magnetic clutch | 73J |
| Code B09 | Refrigerant compressor with magnetic clutch | 71J |
| Code B09 | Refrigerant compressor with magnetic clutch | 73E |
| Code B09 | Refrigerant compressor with magnetic clutch | 71E |
| Code L | LEFT-HAND DRIVE | 59J |
| Code L | LEFT-HAND DRIVE | 59E |
| Code L | LEFT-HAND DRIVE | 63J |
| Code L | LEFT-HAND DRIVE | 63E |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 2J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 2E |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 3A |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 10A |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 23E |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 23J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 26J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 26E |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 28J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 28E |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 31J |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 31E |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 41E |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 13A |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 19A |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 38J |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 44J |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 41J |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 44E |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 38E |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 47E |
| Code M282 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M282 | 47J |
| Code M608 | 4-CYLINDER INLINE DIESEL ENGINE OM608 | 52A |
| Code R | RIGHT-HAND DRIVE | 60J |
| Code R | RIGHT-HAND DRIVE | 60E |
| Code R | RIGHT-HAND DRIVE | 64J |
| Code R | RIGHT-HAND DRIVE | 64E |
| F152/3 | Engine compartment fuse and relay module | 5A |
| F152/3 | Engine compartment fuse and relay module | 6A |
| F152/3 | Engine compartment fuse and relay module | 8A |
| F152/3 | Engine compartment fuse and relay module | 15A |
| F152/3 | Engine compartment fuse and relay module | 16A |
| F152/3 | Engine compartment fuse and relay module | 17A |
| F152/3 | Engine compartment fuse and relay module | 55L |
| F152/3 | Engine compartment fuse and relay module | 62A |
| N10 | Central control module | 24A |
| N10 | Central control module | 27A |
| N10 | Central control module | 30A |
| N10 | Central control module | 33A |
| N10 | Central control module | 39A |
| N10 | Central control module | 42A |
| N10 | Central control module | 45A |
| N10 | Central control module | 48A |
| N10 | Central control module | 67A |
| N10 | Central control module | 69A |
| N10 | Central control module | 71A |
| N10 | Central control module | 74A |
| N3/10 | ME-SFI [ME] control unit | 3L |
| N3/9 | CDI control unit | 55A |
| N3/9 | CDI control unit | 58A |
| N3/9 | CDI control unit | 59A |
| N3/9 | CDI control unit | 61A |
| N33/6 | Fuel preheater control unit | 57L |
| W9 | Left front ground point | 9A |
| W9 | Left front ground point | 18A |
| X25/13x1 | Left engine compartment/vehicle interior electrical connector | 63L |
| X25/13x3 | Left engine compartment/vehicle interior electrical connector | 61L |
| X25/14x1 | Right engine compartment/vehicle interior electrical connector | 59L |
| X25/14x2 | Right engine compartment/vehicle interior electrical connector | 65L |
| X26/43x1 | Engine wiring harness/engine compartment electrical connector | 53F |
| X26/47x1 | Engine wiring harness/engine compartment electrical connector | 38F |
| X26/48x1 | Engine wiring harness/engine compartment electrical connector | 2F |
| X30/38 | Drive train sensor CAN (CAN I) potential distributor | 58L |
| X30/89 | Power supply potential distributor 1 | 8L |
| X30/89 | Power supply potential distributor 1 | 17L |
| X30/90 | Power supply potential distributor 2 | 6L |
| X30/90 | Power supply potential distributor 2 | 16L |
| X30/91 | Power supply potential distributor 3 | 5L |
| X30/91 | Power supply potential distributor 3 | 12L |
| X30/91 | Power supply potential distributor 3 | 21L |
| X30/91 | Power supply potential distributor 3 | 15L |
| X30/92 | Circuit 31 potential distributor 1 | 9L |
| X30/92 | Circuit 31 potential distributor 1 | 18L |
| Y129 | AdBlue® metering valve | 63A |
| Y129 | AdBlue® metering valve | 65A |
| Z1z9 | Connector sleeve LIN C1 | 57A |
| Z7/48z1 | Circuit 87M connector sleeve | 12A |
| Z7/48z1 | Circuit 87M connector sleeve | 21A |
| Z87/3z1 | Voltage supply connector sleeve | 62L |
