Connector Separation Point Wiring Diagram - PE54.18-P-2300-97IBC
Model 177

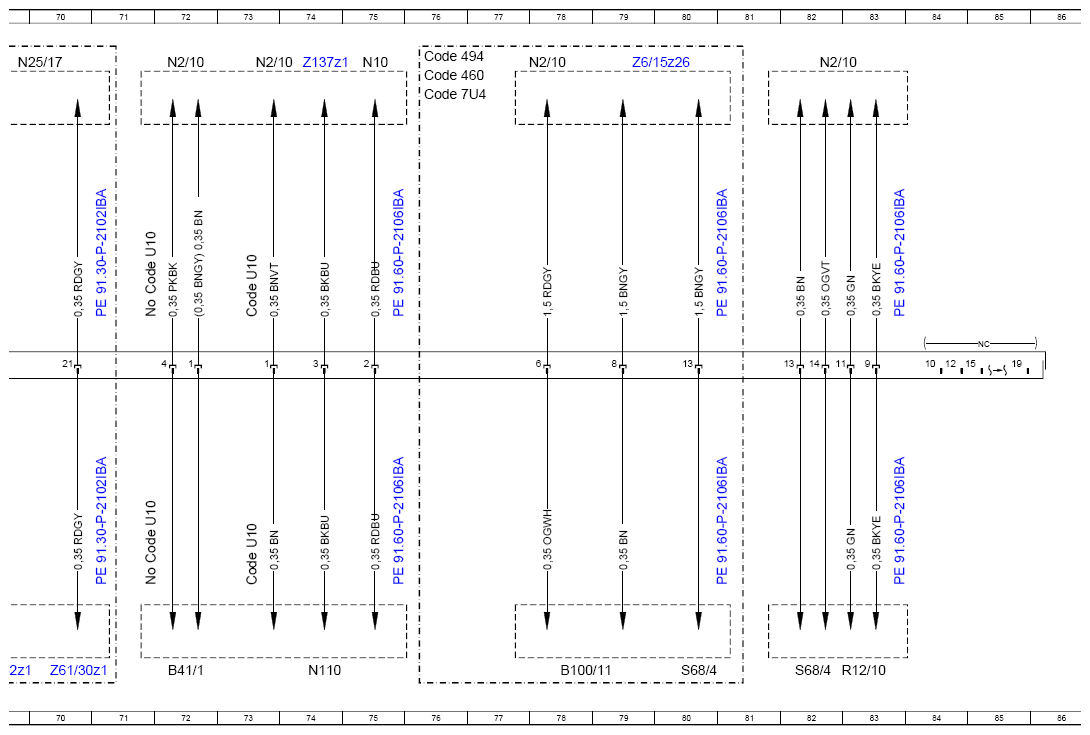

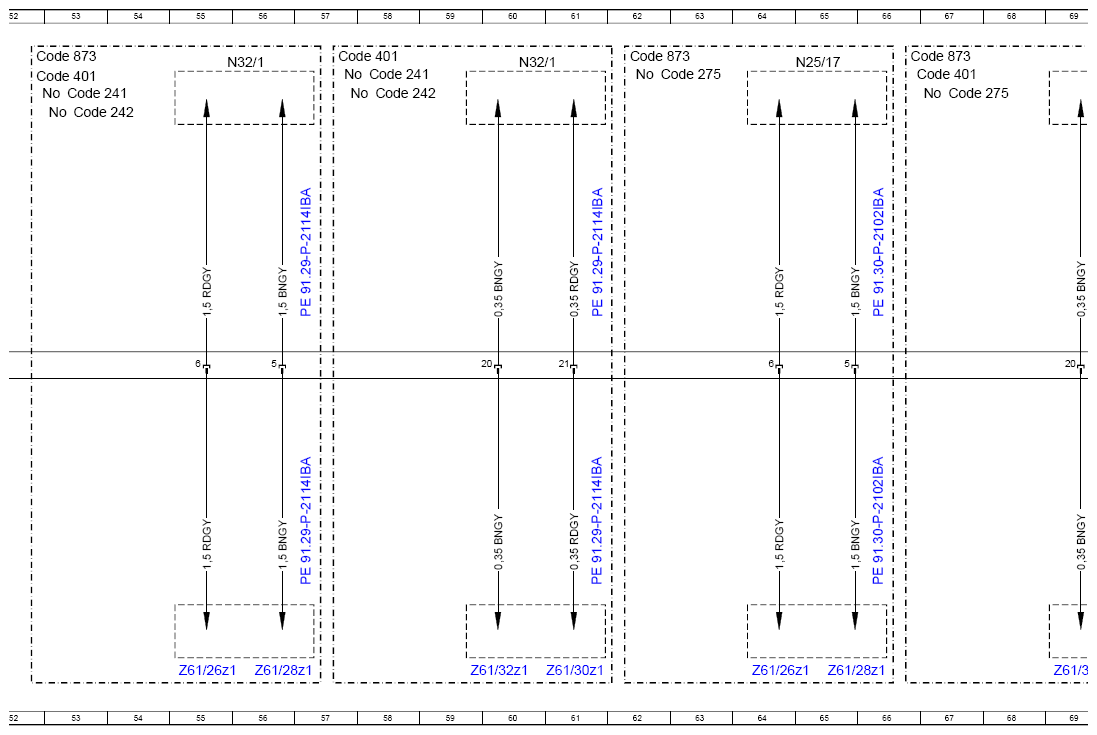

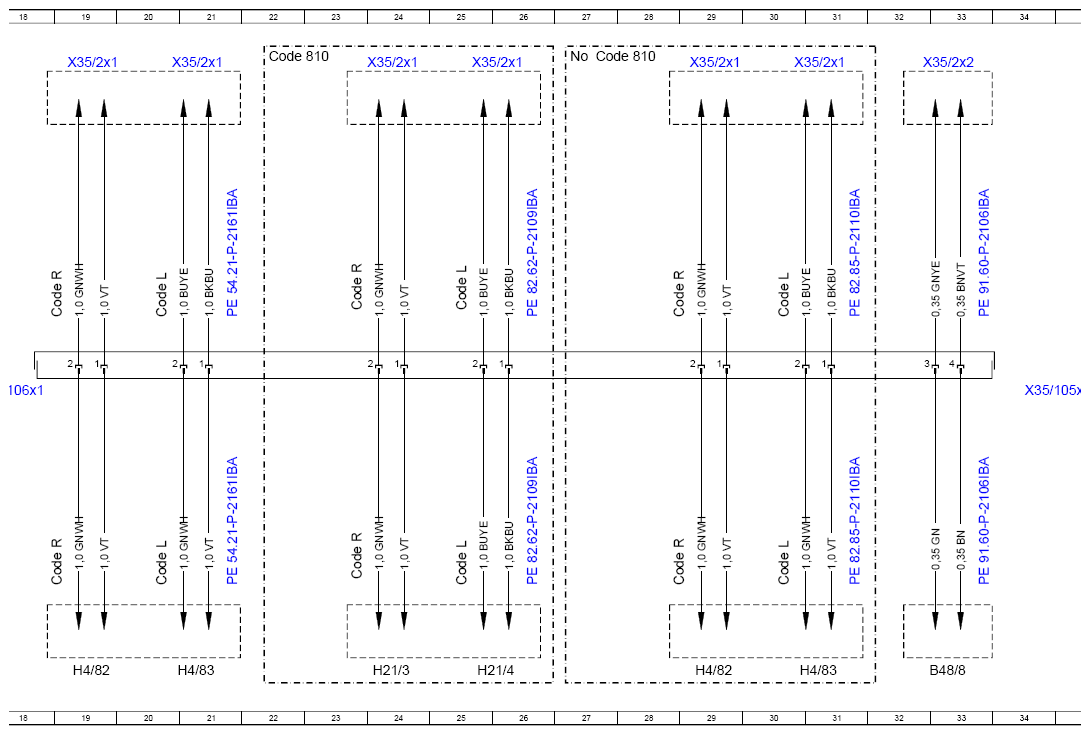

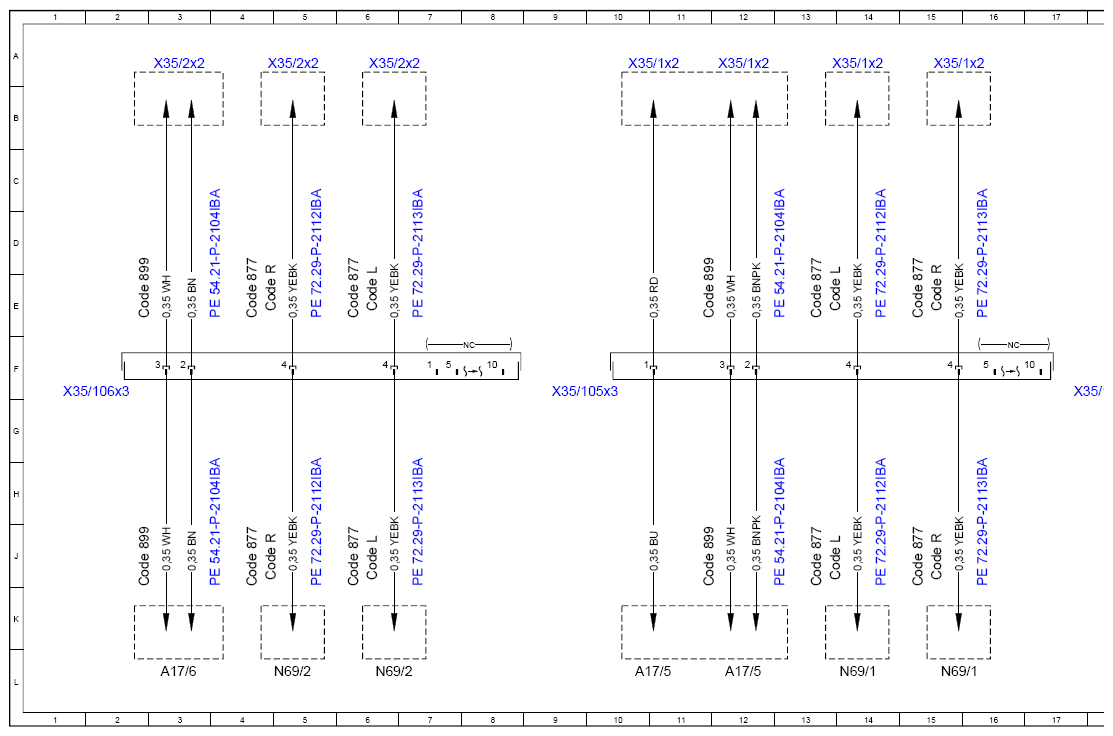

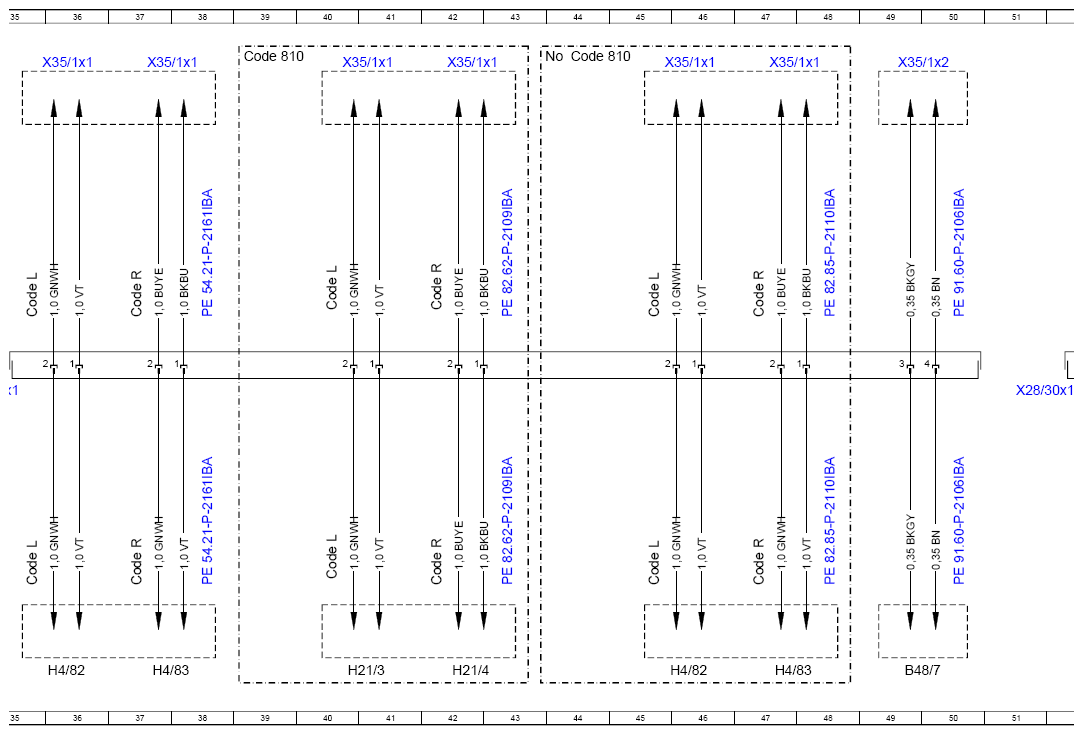

X35/106x3, X35/105x3, X35/106x1, X35/105x1, X28/30x1
| Code: | Designation: | Position: |
|---|---|---|

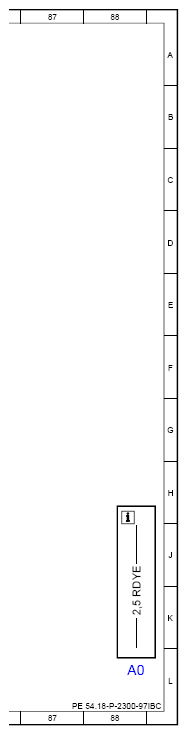

| A0 | Use of wiring diagrams | 88L |
| A17/5 | Driver door KEYLESS-GO door handle | 10L |
| A17/5 | Driver door KEYLESS-GO door handle | 12L |
| A17/6 | Front passenger door KEYLESS-GO door handle | 3L |
| B100/11 | Front passenger seat position Hall sensor | 78L |
| B41/1 | Front passenger seat occupied recognition | 72L |
| B48/7 | Driver door pressure sensor | 49L |
| B48/8 | Front passenger door pressure sensor | 33L |
| Code 241 | Memory switch for electrically adjustable front passenger seat, left | 58A |
| Code 241 | Memory switch for electrically adjustable front passenger seat, left | 53B |
| Code 242 | Electrically adjustable front passenger seat with memory function | 53B |
| Code 242 | Electrically adjustable front passenger seat with memory function | 58B |
| Code 275 | Electrically adjustable driver seat with memory function | 62A |
| Code 275 | Electrically adjustable driver seat with memory function | 67B |
| Code 401 | Seat climate control for driver and front passenger | 52A |
| Code 401 | Seat climate control for driver and front passenger | 57A |
| Code 401 | Seat climate control for driver and front passenger | 66A |
| Code 460 | Canada version | 76A |
| Code 494 | USA version | 76A |
| Code 7U4 | Seat model variant 4 | 76B |
| Code 810 | Sound system | 22A |
| Code 810 | Sound system | 27A |
| Code 810 | Sound system | 39A |
| Code 810 | Sound system | 44A |
| Code 873 | Seat heater for driver and front passenger | 52A |
| Code 873 | Seat heater for driver and front passenger | 62A |
| Code 873 | Seat heater for driver and front passenger | 66A |
| Code 877 | Ambiance illumination | 6J |
| Code 877 | Ambiance illumination | 4J |
| Code 877 | Ambiance illumination | 15J |
| Code 877 | Ambiance illumination | 13J |
| Code 877 | Ambiance illumination | 15E |
| Code 877 | Ambiance illumination | 13E |
| Code 877 | Ambiance illumination | 6E |
| Code 877 | Ambiance illumination | 4E |
| Code 899 | Wireless phone charging at front and antenna | 3J |
| Code 899 | Wireless phone charging at front and antenna | 12J |
| Code 899 | Wireless phone charging at front and antenna | 3E |
| Code 899 | Wireless phone charging at front and antenna | 12E |
| Code L | LEFT-HAND DRIVE | 6J |
| Code L | LEFT-HAND DRIVE | 14J |
| Code L | LEFT-HAND DRIVE | 20J |
| Code L | LEFT-HAND DRIVE | 30J |
| Code L | LEFT-HAND DRIVE | 25J |
| Code L | LEFT-HAND DRIVE | 35J |
| Code L | LEFT-HAND DRIVE | 40J |
| Code L | LEFT-HAND DRIVE | 6E |
| Code L | LEFT-HAND DRIVE | 14E |
| Code L | LEFT-HAND DRIVE | 20E |
| Code L | LEFT-HAND DRIVE | 30E |
| Code L | LEFT-HAND DRIVE | 25E |
| Code L | LEFT-HAND DRIVE | 35E |
| Code L | LEFT-HAND DRIVE | 40E |
| Code L | LEFT-HAND DRIVE | 45J |
| Code L | LEFT-HAND DRIVE | 45E |
| Code R | RIGHT-HAND DRIVE | 5J |
| Code R | RIGHT-HAND DRIVE | 15J |
| Code R | RIGHT-HAND DRIVE | 23J |
| Code R | RIGHT-HAND DRIVE | 19J |
| Code R | RIGHT-HAND DRIVE | 29J |
| Code R | RIGHT-HAND DRIVE | 37J |
| Code R | RIGHT-HAND DRIVE | 42J |
| Code R | RIGHT-HAND DRIVE | 5E |
| Code R | RIGHT-HAND DRIVE | 15E |
| Code R | RIGHT-HAND DRIVE | 19E |
| Code R | RIGHT-HAND DRIVE | 23E |
| Code R | RIGHT-HAND DRIVE | 29E |
| Code R | RIGHT-HAND DRIVE | 37E |
| Code R | RIGHT-HAND DRIVE | 42E |
| Code R | RIGHT-HAND DRIVE | 47J |
| Code R | RIGHT-HAND DRIVE | 47E |
| Code U10 | Automatic front passenger airbag shutoff | 72J |
| Code U10 | Automatic front passenger airbag shutoff | 73J |
| Code U10 | Automatic front passenger airbag shutoff | 72E |
| Code U10 | Automatic front passenger airbag shutoff | 73E |
| H21/3 | Left front door surround sound system midrange speaker | 24L |
| H21/3 | Left front door surround sound system midrange speaker | 40L |
| H21/4 | Right front door surround sound system midrange speaker | 25L |
| H21/4 | Right front door surround sound system midrange speaker | 42L |
| H4/82 | Left front door woofer/midrange speaker | 19L |
| H4/82 | Left front door woofer/midrange speaker | 29L |
| H4/82 | Left front door woofer/midrange speaker | 36L |
| H4/82 | Left front door woofer/midrange speaker | 46L |
| H4/83 | Right front door woofer/midrange speaker | 31L |
| H4/83 | Right front door woofer/midrange speaker | 21L |
| H4/83 | Right front door woofer/midrange speaker | 37L |
| H4/83 | Right front door woofer/midrange speaker | 47L |
| N10 | Central control module | 75A |
| N110 | Weight Sensing System (WSS) control unit | 74L |
| N2/10 | Supplemental restraint system control unit | 72A |
| N2/10 | Supplemental restraint system control unit | 73A |
| N2/10 | Supplemental restraint system control unit | 78A |
| N2/10 | Supplemental restraint system control unit | 82A |
| N25/17 | Front seat heater/seat ventilation control unit | 65A |
| N25/17 | Front seat heater/seat ventilation control unit | 69A |
| N32/1 | Driver seat control unit | 56A |
| N32/1 | Driver seat control unit | 60A |
| N69/1 | Driver door control unit | 15L |
| N69/1 | Driver door control unit | 14L |
| N69/2 | Front passenger door control unit | 6L |
| N69/2 | Front passenger door control unit | 5L |
| R12/10 | Front passenger side airbag squib | 83L |
| S68/4 | Front passenger seat belt buckle switch | 80L |
| S68/4 | Front passenger seat belt buckle switch | 82L |
| X28/30x1 | Interior wiring harness/front passenger seat electrical connector | 51F |
| X35/105x1 | Driver door module electrical connector | 35F |
| X35/105x3 | Driver door module electrical connector | 10F |
| X35/106x1 | Passenger door module electrical connector | 18F |
| X35/106x3 | Passenger door module electrical connector | 2F |
| X35/1x1 | Driver door electrical connector | 37A |
| X35/1x1 | Driver door electrical connector | 36A |
| X35/1x1 | Driver door electrical connector | 40A |
| X35/1x1 | Driver door electrical connector | 42A |
| X35/1x1 | Driver door electrical connector | 46A |
| X35/1x1 | Driver door electrical connector | 47A |
| X35/1x2 | Driver door electrical connector | 12A |
| X35/1x2 | Driver door electrical connector | 10A |
| X35/1x2 | Driver door electrical connector | 15A |
| X35/1x2 | Driver door electrical connector | 14A |
| X35/1x2 | Driver door electrical connector | 49A |
| X35/2x1 | Front passenger door electrical connector | 31A |
| X35/2x1 | Front passenger door electrical connector | 24A |
| X35/2x1 | Front passenger door electrical connector | 21A |
| X35/2x1 | Front passenger door electrical connector | 19A |
| X35/2x1 | Front passenger door electrical connector | 25A |
| X35/2x1 | Front passenger door electrical connector | 29A |
| X35/2x2 | Front passenger door electrical connector | 3A |
| X35/2x2 | Front passenger door electrical connector | 6A |
| X35/2x2 | Front passenger door electrical connector | 5A |
| X35/2x2 | Front passenger door electrical connector | 33A |
| Z137z1 | LIN E2 connector sleeve | 74A |
| Z6/15z26 | Ground connection connector sleeve | 79A |
| Z61/26z1 | Voltage supply connector sleeve | 55L |
| Z61/26z1 | Voltage supply connector sleeve | 64L |
| Z61/28z1 | Ground connection connector sleeve | 56L |
| Z61/28z1 | Ground connection connector sleeve | 65L |
| Z61/30z1 | DC motor connector sleeve (potential according to rotation direction) | 61L |
| Z61/30z1 | DC motor connector sleeve (potential according to rotation direction) | 70L |
| Z61/32z1 | DC motor connector sleeve (potential according to rotation direction) | 60L |
| Z61/32z1 | DC motor connector sleeve (potential according to rotation direction) | 69L |
