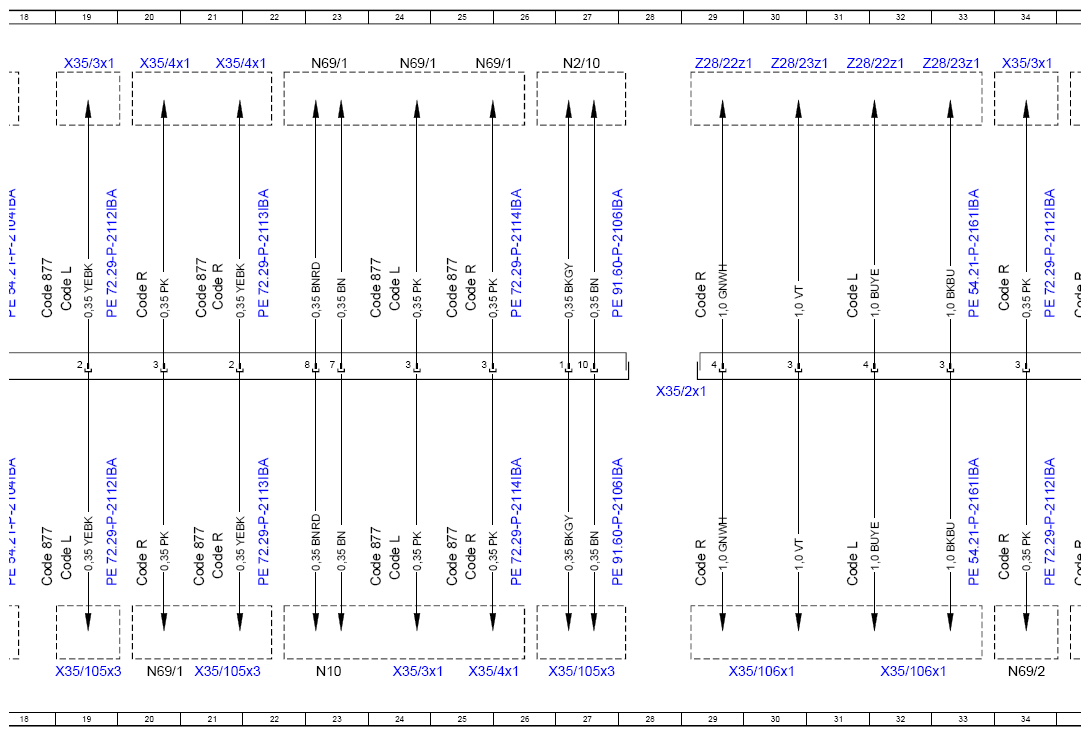

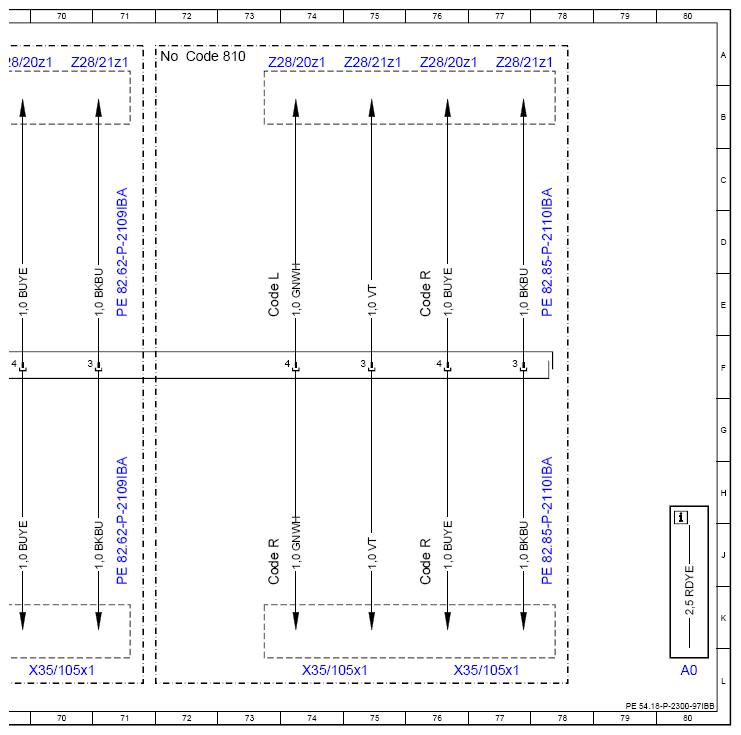

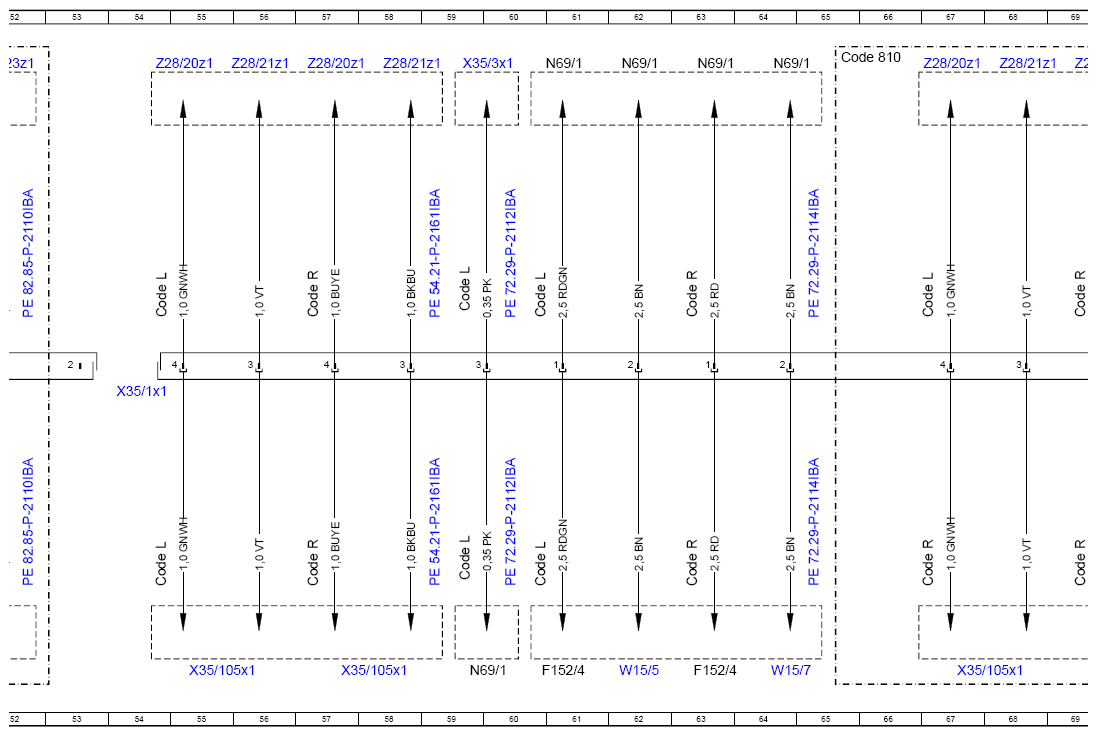

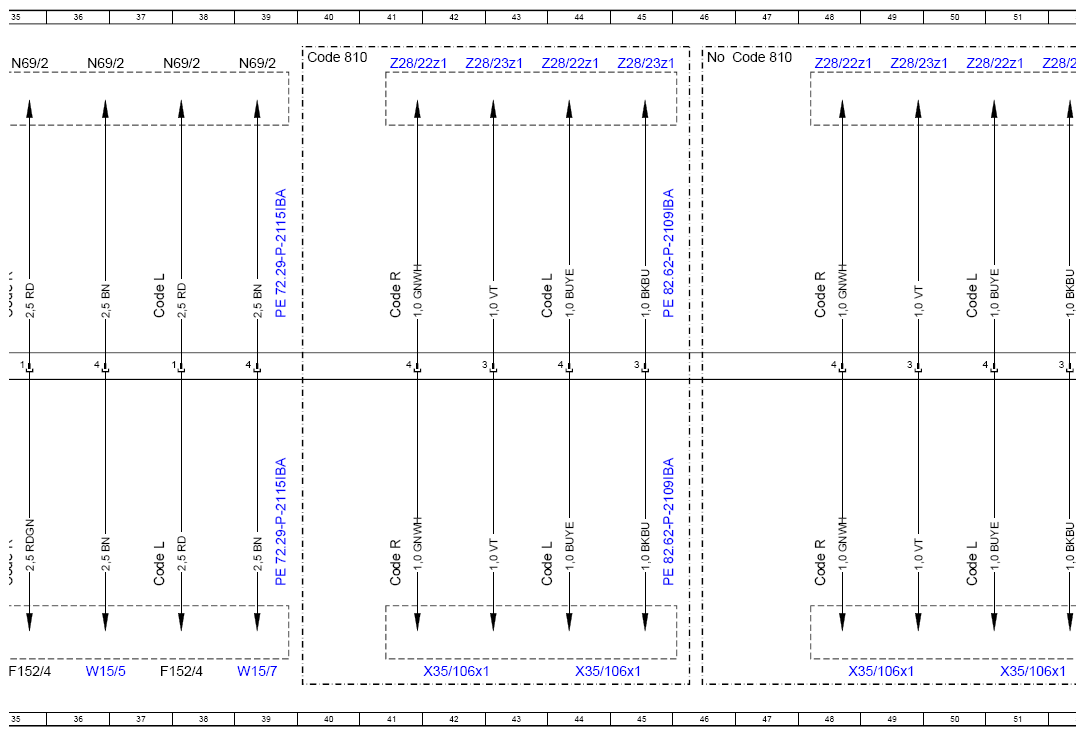

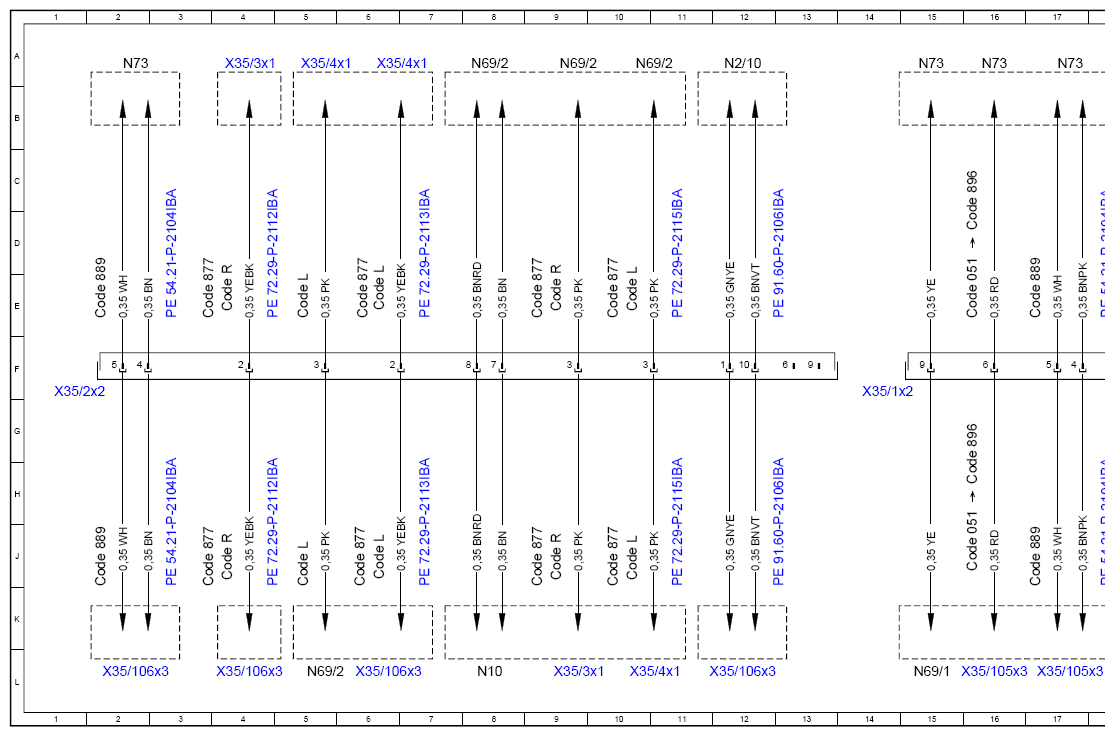

Connector Separation Point Wiring Diagram - PE54.18-P-2300-97IBB
Model 177
X35/2x2, X35/1x2, X35/2x1, X35/1x1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 80L |
| Code 051 | YoM 20/2 | 16E |
| Code 051 | YoM 20/2 | 16J |
| Code 810 | Sound system | 40A |
| Code 810 | Sound system | 46A |
| Code 810 | Sound system | 65A |
| Code 810 | Sound system | 72A |
| Code 877 | Ambiance illumination | 6J |
| Code 877 | Ambiance illumination | 6E |
| Code 877 | Ambiance illumination | 9J |
| Code 877 | Ambiance illumination | 9E |
| Code 877 | Ambiance illumination | 10J |
| Code 877 | Ambiance illumination | 10E |
| Code 877 | Ambiance illumination | 21J |
| Code 877 | Ambiance illumination | 25J |
| Code 877 | Ambiance illumination | 24J |
| Code 877 | Ambiance illumination | 21E |
| Code 877 | Ambiance illumination | 25E |
| Code 877 | Ambiance illumination | 24E |
| Code 877 | Ambiance illumination | 4J |
| Code 877 | Ambiance illumination | 4E |
| Code 877 | Ambiance illumination | 18J |
| Code 877 | Ambiance illumination | 18E |
| Code 889 | KEYLESS-GO | 2E |
| Code 889 | KEYLESS-GO | 2J |
| Code 889 | KEYLESS-GO | 17J |
| Code 889 | KEYLESS-GO | 17E |
| Code 896 | Vehicle access and drive authorization via mobile phone | 16H |
| Code 896 | Vehicle access and drive authorization via mobile phone | 16D |
| Code L | LEFT-HAND DRIVE | 5J |
| Code L | LEFT-HAND DRIVE | 5E |
| Code L | LEFT-HAND DRIVE | 6J |
| Code L | LEFT-HAND DRIVE | 6E |
| Code L | LEFT-HAND DRIVE | 10J |
| Code L | LEFT-HAND DRIVE | 10E |
| Code L | LEFT-HAND DRIVE | 19J |
| Code L | LEFT-HAND DRIVE | 24J |
| Code L | LEFT-HAND DRIVE | 19E |
| Code L | LEFT-HAND DRIVE | 24E |
| Code L | LEFT-HAND DRIVE | 31E |
| Code L | LEFT-HAND DRIVE | 31J |
| Code L | LEFT-HAND DRIVE | 37J |
| Code L | LEFT-HAND DRIVE | 37E |
| Code L | LEFT-HAND DRIVE | 44J |
| Code L | LEFT-HAND DRIVE | 44E |
| Code L | LEFT-HAND DRIVE | 50J |
| Code L | LEFT-HAND DRIVE | 50E |
| Code L | LEFT-HAND DRIVE | 54J |
| Code L | LEFT-HAND DRIVE | 60J |
| Code L | LEFT-HAND DRIVE | 59J |
| Code L | LEFT-HAND DRIVE | 54E |
| Code L | LEFT-HAND DRIVE | 60E |
| Code L | LEFT-HAND DRIVE | 59E |
| Code L | LEFT-HAND DRIVE | 67E |
| Code L | LEFT-HAND DRIVE | 73E |
| Code R | RIGHT-HAND DRIVE | 4E |
| Code R | RIGHT-HAND DRIVE | 4J |
| Code R | RIGHT-HAND DRIVE | 9E |
| Code R | RIGHT-HAND DRIVE | 9J |
| Code R | RIGHT-HAND DRIVE | 25J |
| Code R | RIGHT-HAND DRIVE | 21J |
| Code R | RIGHT-HAND DRIVE | 20J |
| Code R | RIGHT-HAND DRIVE | 25E |
| Code R | RIGHT-HAND DRIVE | 20E |
| Code R | RIGHT-HAND DRIVE | 21E |
| Code R | RIGHT-HAND DRIVE | 29J |
| Code R | RIGHT-HAND DRIVE | 29E |
| Code R | RIGHT-HAND DRIVE | 34J |
| Code R | RIGHT-HAND DRIVE | 34E |
| Code R | RIGHT-HAND DRIVE | 35J |
| Code R | RIGHT-HAND DRIVE | 35E |
| Code R | RIGHT-HAND DRIVE | 41J |
| Code R | RIGHT-HAND DRIVE | 41E |
| Code R | RIGHT-HAND DRIVE | 48J |
| Code R | RIGHT-HAND DRIVE | 48E |
| Code R | RIGHT-HAND DRIVE | 57J |
| Code R | RIGHT-HAND DRIVE | 67J |
| Code R | RIGHT-HAND DRIVE | 63J |
| Code R | RIGHT-HAND DRIVE | 57E |
| Code R | RIGHT-HAND DRIVE | 63E |
| Code R | RIGHT-HAND DRIVE | 69J |
| Code R | RIGHT-HAND DRIVE | 69E |
| Code R | RIGHT-HAND DRIVE | 76J |
| Code R | RIGHT-HAND DRIVE | 73J |
| Code R | RIGHT-HAND DRIVE | 76E |
| F152/4 | Vehicle interior fuse and relay module | 35L |
| F152/4 | Vehicle interior fuse and relay module | 37L |
| F152/4 | Vehicle interior fuse and relay module | 61L |
| F152/4 | Vehicle interior fuse and relay module | 63L |
| N10 | Central control module | 8L |
| N10 | Central control module | 23L |
| N2/10 | Supplemental restraint system control unit | 12A |
| N2/10 | Supplemental restraint system control unit | 27A |
| N69/1 | Driver door control unit | 20L |
| N69/1 | Driver door control unit | 25A |
| N69/1 | Driver door control unit | 23A |
| N69/1 | Driver door control unit | 24A |
| N69/1 | Driver door control unit | 15L |
| N69/1 | Driver door control unit | 59L |
| N69/1 | Driver door control unit | 62A |
| N69/1 | Driver door control unit | 61A |
| N69/1 | Driver door control unit | 63A |
| N69/1 | Driver door control unit | 64A |
| N69/2 | Front passenger door control unit | 5L |
| N69/2 | Front passenger door control unit | 8A |
| N69/2 | Front passenger door control unit | 9A |
| N69/2 | Front passenger door control unit | 10A |
| N69/2 | Front passenger door control unit | 34L |
| N69/2 | Front passenger door control unit | 35A |
| N69/2 | Front passenger door control unit | 36A |
| N69/2 | Front passenger door control unit | 38A |
| N69/2 | Front passenger door control unit | 39A |
| N73 | Electronic ignition switch control unit | 2A |
| N73 | Electronic ignition switch control unit | 17A |
| N73 | Electronic ignition switch control unit | 16A |
| N73 | Electronic ignition switch control unit | 15A |
| W15/5 | Left front footwell ground point | 36L |
| W15/5 | Left front footwell ground point | 62L |
| W15/7 | Right front footwell ground point | 39L |
| W15/7 | Right front footwell ground point | 64L |
| X35/105x1 | Driver door module electrical connector | 55L |
| X35/105x1 | Driver door module electrical connector | 57L |
| X35/105x1 | Driver door module electrical connector | 67L |
| X35/105x1 | Driver door module electrical connector | 70L |
| X35/105x1 | Driver door module electrical connector | 74L |
| X35/105x1 | Driver door module electrical connector | 77L |
| X35/105x3 | Driver door module electrical connector | 17L |
| X35/105x3 | Driver door module electrical connector | 21L |
| X35/105x3 | Driver door module electrical connector | 19L |
| X35/105x3 | Driver door module electrical connector | 27L |
| X35/105x3 | Driver door module electrical connector | 16L |
| X35/106x1 | Passenger door module electrical connector | 30L |
| X35/106x1 | Passenger door module electrical connector | 32L |
| X35/106x1 | Passenger door module electrical connector | 42L |
| X35/106x1 | Passenger door module electrical connector | 44L |
| X35/106x1 | Passenger door module electrical connector | 49L |
| X35/106x1 | Passenger door module electrical connector | 51L |
| X35/106x3 | Passenger door module electrical connector | 2L |
| X35/106x3 | Passenger door module electrical connector | 4L |
| X35/106x3 | Passenger door module electrical connector | 6L |
| X35/106x3 | Passenger door module electrical connector | 12L |
| X35/1x1 | Driver door electrical connector | 54F |
| X35/1x2 | Driver door electrical connector | 14F |
| X35/2x1 | Front passenger door electrical connector | 28F |
| X35/2x2 | Front passenger door electrical connector | 1F |
| X35/3x1 | Left rear door electrical connector | 4A |
| X35/3x1 | Left rear door electrical connector | 9L |
| X35/3x1 | Left rear door electrical connector | 24L |
| X35/3x1 | Left rear door electrical connector | 19A |
| X35/3x1 | Left rear door electrical connector | 34A |
| X35/3x1 | Left rear door electrical connector | 59A |
| X35/4x1 | Right rear door electrical connector | 5A |
| X35/4x1 | Right rear door electrical connector | 6A |
| X35/4x1 | Right rear door electrical connector | 10L |
| X35/4x1 | Right rear door electrical connector | 25L |
| X35/4x1 | Right rear door electrical connector | 21A |
| X35/4x1 | Right rear door electrical connector | 20A |
| Z28/20z1 | Audio signal HIGH connector sleeve | 54A |
| Z28/20z1 | Audio signal HIGH connector sleeve | 57A |
| Z28/20z1 | Audio signal HIGH connector sleeve | 67A |
| Z28/20z1 | Audio signal HIGH connector sleeve | 69A |
| Z28/20z1 | Audio signal HIGH connector sleeve | 74A |
| Z28/20z1 | Audio signal HIGH connector sleeve | 76A |
| Z28/21z1 | Audio signal LOW connector sleeve | 58A |
| Z28/21z1 | Audio signal LOW connector sleeve | 56A |
| Z28/21z1 | Audio signal LOW connector sleeve | 68A |
| Z28/21z1 | Audio signal LOW connector sleeve | 70A |
| Z28/21z1 | Audio signal LOW connector sleeve | 77A |
| Z28/21z1 | Audio signal LOW connector sleeve | 75A |
| Z28/22z1 | Audio signal HIGH connector sleeve | 29A |
| Z28/22z1 | Audio signal HIGH connector sleeve | 31A |
| Z28/22z1 | Audio signal HIGH connector sleeve | 41A |
| Z28/22z1 | Audio signal HIGH connector sleeve | 44A |
| Z28/22z1 | Audio signal HIGH connector sleeve | 48A |
| Z28/22z1 | Audio signal HIGH connector sleeve | 50A |
| Z28/23z1 | Audio signal LOW connector sleeve | 30A |
| Z28/23z1 | Audio signal LOW connector sleeve | 33A |
| Z28/23z1 | Audio signal LOW connector sleeve | 45A |
| Z28/23z1 | Audio signal LOW connector sleeve | 42A |
| Z28/23z1 | Audio signal LOW connector sleeve | 49A |
| Z28/23z1 | Audio signal LOW connector sleeve | 52A |
