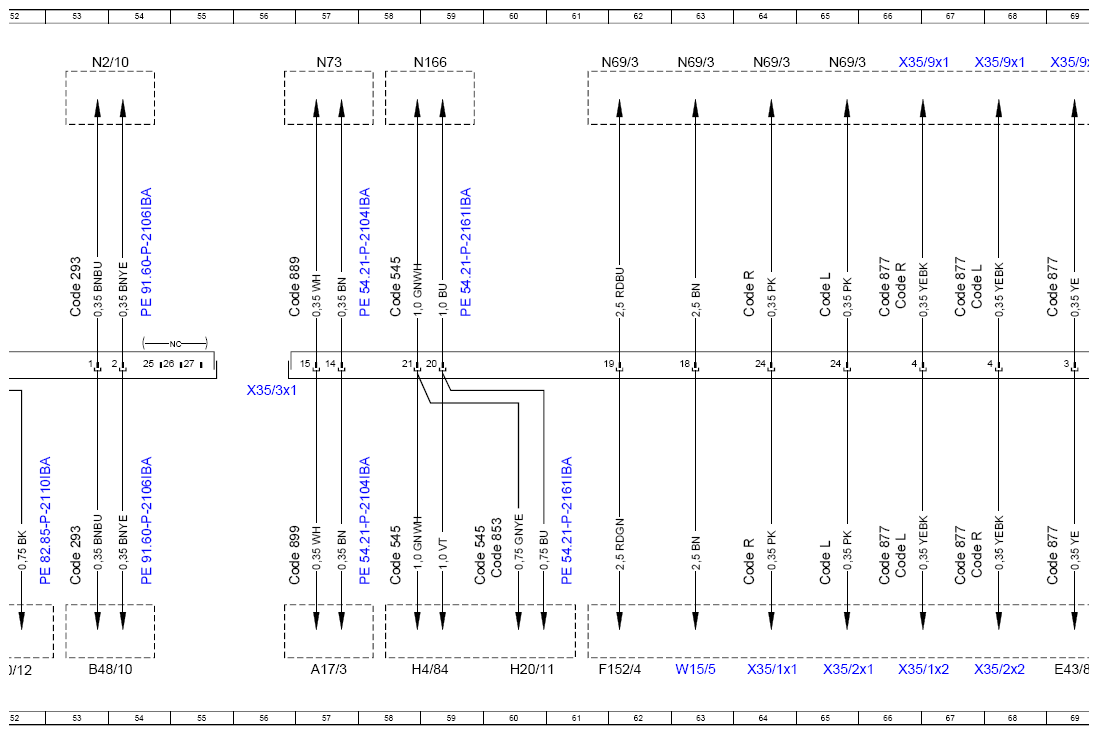

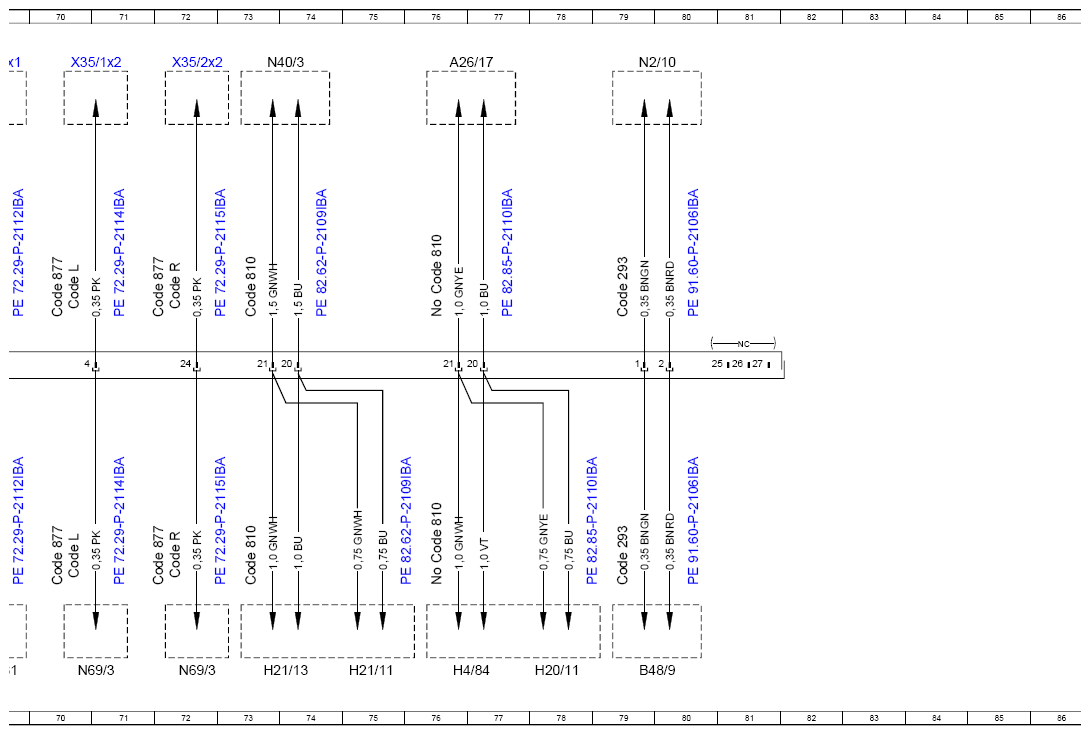

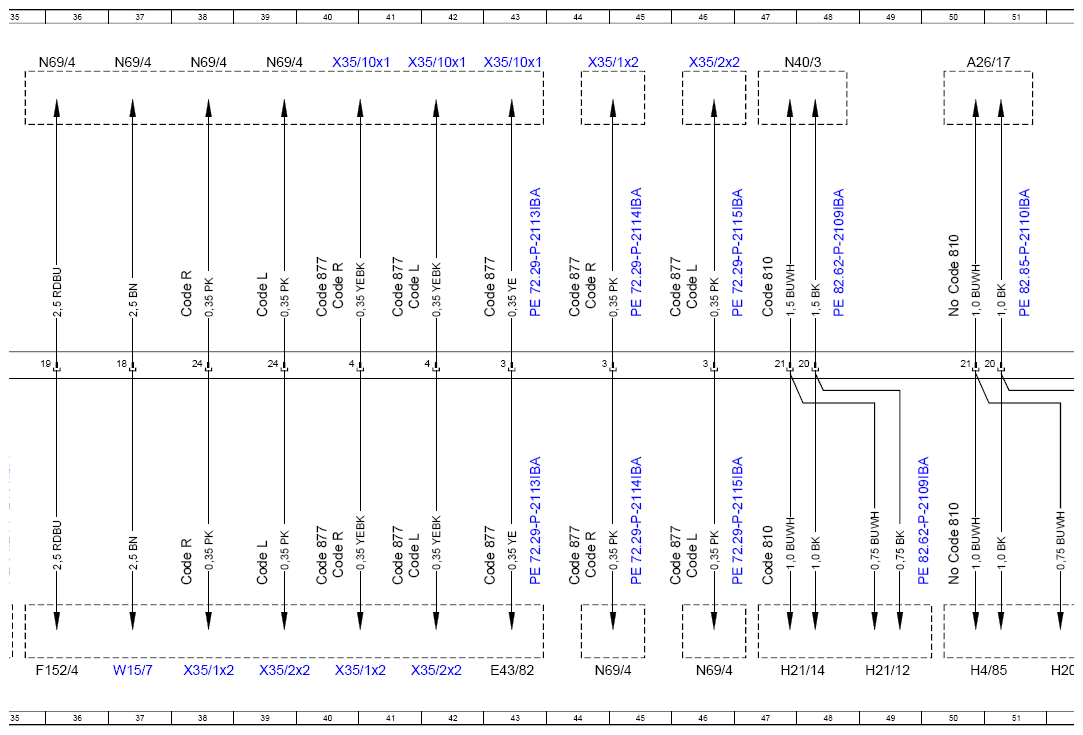

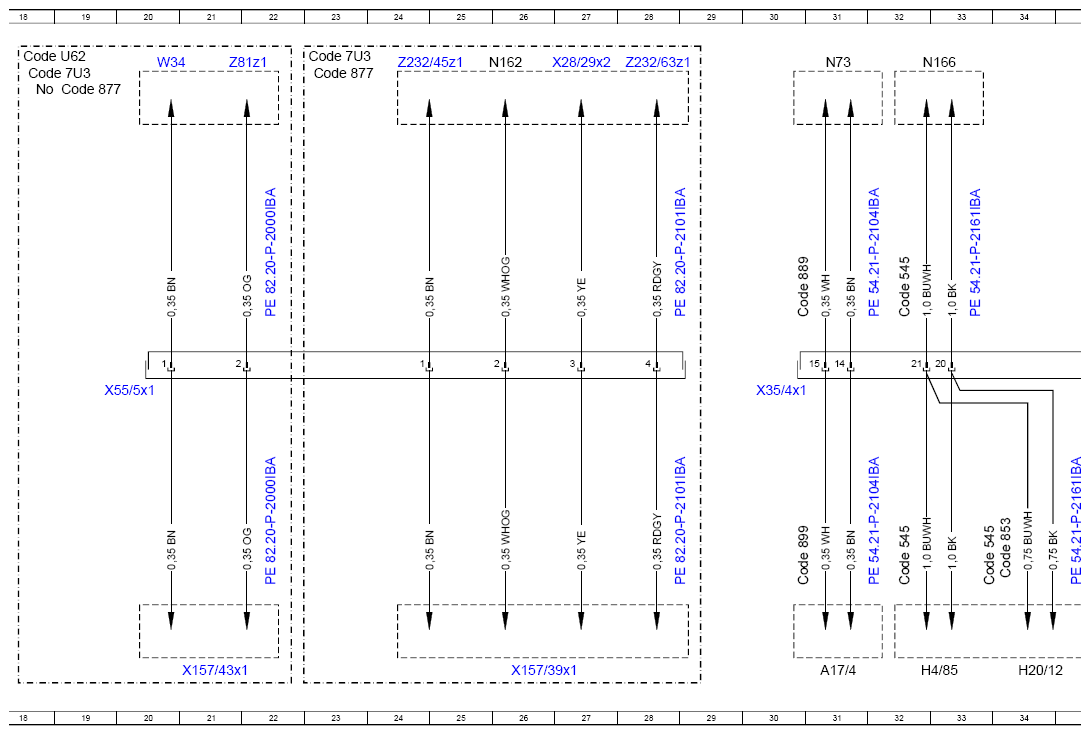

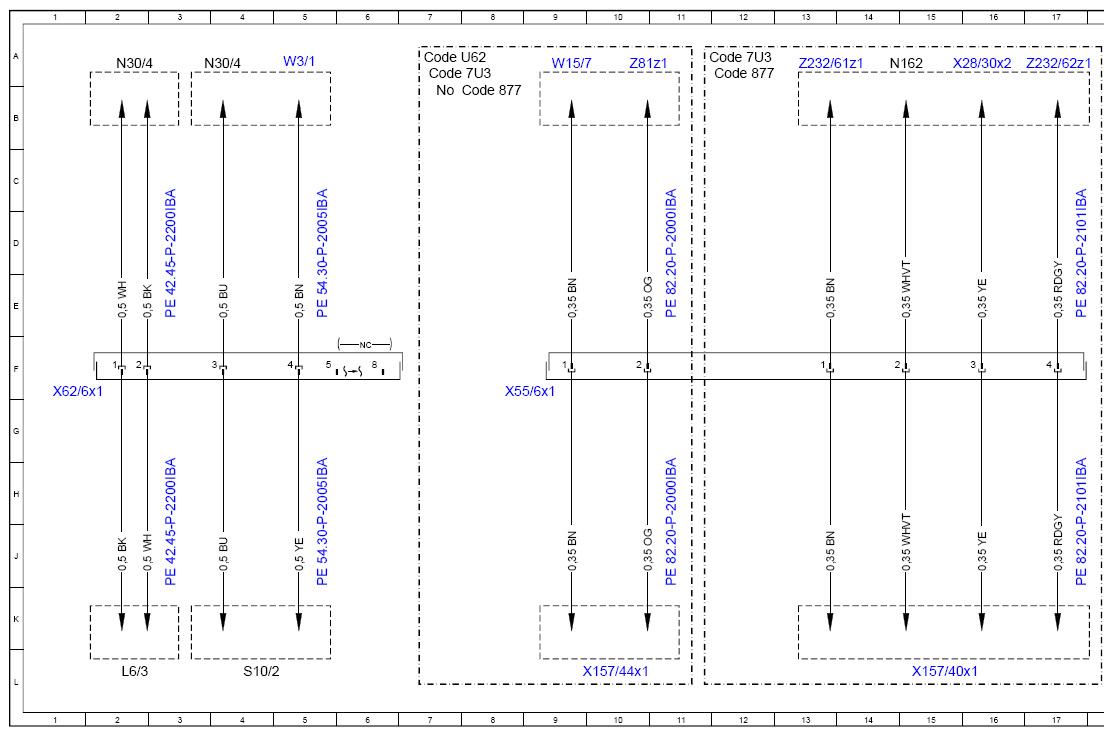

Connector Separation Point Wiring Diagram - PE54.18-P-2300-97IBA
Model 177
X62/6x1, X55/6x1, X55/5x1, X35/4x1, X35/3x1
| Code: | Designation: | Position: |
|---|---|---|

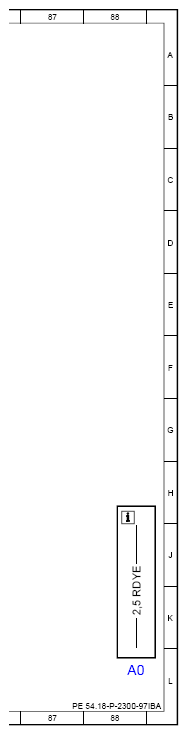

| A0 | Use of wiring diagrams | 88L |
| A17/3 | Left rear KEYLESS GO door handle | 57L |
| A17/4 | Right rear KEYLESS GO door handle | 31L |
| A26/17 | Head unit | 50A |
| A26/17 | Head unit | 76A |
| B48/10 | Right rear door pressure sensor | 53L |
| B48/9 | Left rear door pressure sensor | 79L |
| Code 293 | Side airbags in the rear | 53E |
| Code 293 | Side airbags in the rear | 53J |
| Code 293 | Side airbags in the rear | 79J |
| Code 293 | Side airbags in the rear | 79E |
| Code 545 | Connect 5 (NTG6) | 32J |
| Code 545 | Connect 5 (NTG6) | 34J |
| Code 545 | Connect 5 (NTG6) | 32E |
| Code 545 | Connect 5 (NTG6) | 58J |
| Code 545 | Connect 5 (NTG6) | 60J |
| Code 545 | Connect 5 (NTG6) | 58E |
| Code 7U3 | Seat model variant 3 | 7A |
| Code 7U3 | Seat model variant 3 | 11A |
| Code 7U3 | Seat model variant 3 | 18A |
| Code 7U3 | Seat model variant 3 | 23A |
| Code 810 | Sound system | 47J |
| Code 810 | Sound system | 47E |
| Code 810 | Sound system | 50J |
| Code 810 | Sound system | 50E |
| Code 810 | Sound system | 73J |
| Code 810 | Sound system | 76J |
| Code 810 | Sound system | 73E |
| Code 810 | Sound system | 76E |
| Code 853 | Midline sound system | 34J |
| Code 853 | Midline sound system | 60J |
| Code 877 | Ambiance illumination | 8B |
| Code 877 | Ambiance illumination | 12A |
| Code 877 | Ambiance illumination | 19B |
| Code 877 | Ambiance illumination | 23A |
| Code 877 | Ambiance illumination | 40J |
| Code 877 | Ambiance illumination | 41J |
| Code 877 | Ambiance illumination | 43J |
| Code 877 | Ambiance illumination | 43E |
| Code 877 | Ambiance illumination | 40E |
| Code 877 | Ambiance illumination | 41E |
| Code 877 | Ambiance illumination | 44J |
| Code 877 | Ambiance illumination | 44E |
| Code 877 | Ambiance illumination | 46J |
| Code 877 | Ambiance illumination | 46E |
| Code 877 | Ambiance illumination | 70J |
| Code 877 | Ambiance illumination | 67J |
| Code 877 | Ambiance illumination | 66J |
| Code 877 | Ambiance illumination | 69J |
| Code 877 | Ambiance illumination | 72J |
| Code 877 | Ambiance illumination | 72E |
| Code 877 | Ambiance illumination | 70E |
| Code 877 | Ambiance illumination | 67E |
| Code 877 | Ambiance illumination | 66E |
| Code 877 | Ambiance illumination | 69E |
| Code 889 | KEYLESS-GO | 31E |
| Code 889 | KEYLESS-GO | 57E |
| Code 899 | Wireless phone charging at front and antenna | 31J |
| Code 899 | Wireless phone charging at front and antenna | 57J |
| Code L | LEFT-HAND DRIVE | 39J |
| Code L | LEFT-HAND DRIVE | 41J |
| Code L | LEFT-HAND DRIVE | 39E |
| Code L | LEFT-HAND DRIVE | 41E |
| Code L | LEFT-HAND DRIVE | 46J |
| Code L | LEFT-HAND DRIVE | 46E |
| Code L | LEFT-HAND DRIVE | 65J |
| Code L | LEFT-HAND DRIVE | 66J |
| Code L | LEFT-HAND DRIVE | 70J |
| Code L | LEFT-HAND DRIVE | 70E |
| Code L | LEFT-HAND DRIVE | 67E |
| Code L | LEFT-HAND DRIVE | 65E |
| Code R | RIGHT-HAND DRIVE | 38J |
| Code R | RIGHT-HAND DRIVE | 40J |
| Code R | RIGHT-HAND DRIVE | 38E |
| Code R | RIGHT-HAND DRIVE | 40E |
| Code R | RIGHT-HAND DRIVE | 44J |
| Code R | RIGHT-HAND DRIVE | 44E |
| Code R | RIGHT-HAND DRIVE | 64J |
| Code R | RIGHT-HAND DRIVE | 64E |
| Code R | RIGHT-HAND DRIVE | 67J |
| Code R | RIGHT-HAND DRIVE | 72J |
| Code R | RIGHT-HAND DRIVE | 72E |
| Code R | RIGHT-HAND DRIVE | 66E |
| Code U62 | Light and vision package | 7A |
| Code U62 | Light and vision package | 18A |
| E43/81 | Left front footwell ambiance illumination | 69L |
| E43/82 | Right front footwell ambiance illumination | 43L |
| F152/4 | Vehicle interior fuse and relay module | 36L |
| F152/4 | Vehicle interior fuse and relay module | 62L |
| H20/11 | Left rear door tweeter | 60L |
| H20/11 | Left rear door tweeter | 78L |
| H20/12 | Right rear door tweeter | 34L |
| H20/12 | Right rear door tweeter | 52L |
| H21/11 | Left rear door surround sound system tweeter | 75L |
| H21/12 | Right rear door surround sound system tweeter | 49L |
| H21/13 | Left rear door surround sound system midrange speaker | 73L |
| H21/14 | Right rear door surround sound system midrange speaker | 47L |
| H4/84 | Left rear door woofer/midrange speaker | 59L |
| H4/84 | Left rear door woofer/midrange speaker | 76L |
| H4/85 | Right rear door woofer/midrange speaker | 33L |
| H4/85 | Right rear door woofer/midrange speaker | 50L |
| L6/3 | Left rear axle rpm sensor | 2L |
| N162 | Ambiance illumination control unit | 14A |
| N162 | Ambiance illumination control unit | 26A |
| N166 | Head unit/instrument cluster control unit | 33A |
| N166 | Head unit/instrument cluster control unit | 59A |
| N2/10 | Supplemental restraint system control unit | 53A |
| N2/10 | Supplemental restraint system control unit | 79A |
| N30/4 | Electronic Stability Program control unit | 2A |
| N30/4 | Electronic Stability Program control unit | 4A |
| N40/3 | Sound system amplifier control unit | 47A |
| N40/3 | Sound system amplifier control unit | 73A |
| N69/3 | Left rear door control unit | 64A |
| N69/3 | Left rear door control unit | 62A |
| N69/3 | Left rear door control unit | 63A |
| N69/3 | Left rear door control unit | 70L |
| N69/3 | Left rear door control unit | 72L |
| N69/3 | Left rear door control unit | 65A |
| N69/4 | Right rear door control unit | 36A |
| N69/4 | Right rear door control unit | 37A |
| N69/4 | Right rear door control unit | 38A |
| N69/4 | Right rear door control unit | 39A |
| N69/4 | Right rear door control unit | 44L |
| N69/4 | Right rear door control unit | 46L |
| N73 | Electronic ignition switch control unit | 31A |
| N73 | Electronic ignition switch control unit | 57A |
| S10/2 | Right front brake wear sensor | 4L |
| W15/5 | Left front footwell ground point | 63L |
| W15/7 | Right front footwell ground point | 9A |
| W15/7 | Right front footwell ground point | 37L |
| W3/1 | Ground point (right front wheel well) | 5A |
| W34 | Left footwell ground point | 20A |
| X157/39x1 | Left rear seat head restraint ambiance illumination electrical connector | 26L |
| X157/40x1 | Right rear seat head restraint ambiance illumination electrical connector | 15L |
| X157/43x1 | Left rear seat head restraint illumination electrical connector | 21L |
| X157/44x1 | Right rear seat head restraint illumination electrical connector | 10L |
| X28/29x2 | Frame floor assembly/driver seat electrical connector | 27A |
| X28/30x2 | Frame floor assembly/front passenger seat electrical connector | 16A |
| X35/10x1 | Right rear door, door module/door panel electrical connector | 42A |
| X35/10x1 | Right rear door, door module/door panel electrical connector | 43A |
| X35/10x1 | Right rear door, door module/door panel electrical connector | 40A |
| X35/1x1 | Driver door electrical connector | 64L |
| X35/1x2 | Driver door electrical connector | 38L |
| X35/1x2 | Driver door electrical connector | 40L |
| X35/1x2 | Driver door electrical connector | 44A |
| X35/1x2 | Driver door electrical connector | 66L |
| X35/1x2 | Driver door electrical connector | 70A |
| X35/2x1 | Front passenger door electrical connector | 65L |
| X35/2x2 | Front passenger door electrical connector | 39L |
| X35/2x2 | Front passenger door electrical connector | 42L |
| X35/2x2 | Front passenger door electrical connector | 46A |
| X35/2x2 | Front passenger door electrical connector | 68L |
| X35/2x2 | Front passenger door electrical connector | 72A |
| X35/3x1 | Left rear door electrical connector | 56F |
| X35/4x1 | Right rear door electrical connector | 30F |
| X35/9x1 | Left rear door, door module/door panel electrical connector | 66A |
| X35/9x1 | Left rear door, door module/door panel electrical connector | 69A |
| X35/9x1 | Left rear door, door module/door panel electrical connector | 68A |
| X55/5x1 | Left rear seat electrical connector | 20F |
| X55/6x1 | Right rear seat electrical connector | 9F |
| X62/6x1 | Front axle electrical connector, right distributor | 1F |
| Z232/45z1 | Ground connection connector sleeve | 24A |
| Z232/61z1 | Ground connection connector sleeve | 13A |
| Z232/62z1 | Voltage supply connector sleeve | 17A |
| Z232/63z1 | Voltage supply connector sleeve | 28A |
| Z81z1 | Circuit 58d connector sleeve | 10A |
| Z81z1 | Circuit 58d connector sleeve | 21A |
