Retrofit Wiring Harness For Mercedes-Benz Dashcam At Rear With Existing Mercedes-Benz Dashcam At Front - AZ54.71-P-0003-01MFM
Model 177.1
| Topical note | Notes on retrofitting electrical/optical lines | AH82.00-P-0000-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A |
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1144-02A | Adhesive tape roll, non-woven Tesa tape, 50 meters, 50 mm wide | A 008 989 50 85 09 |

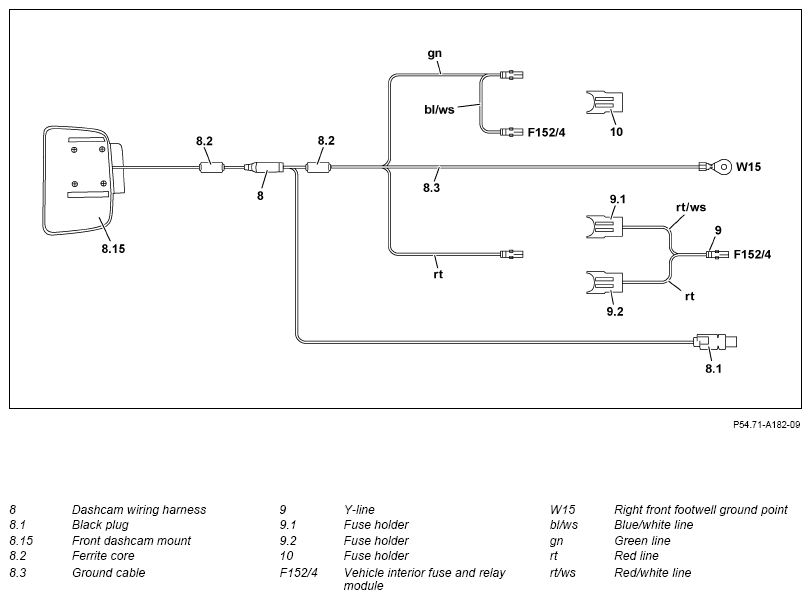

Connection scheme

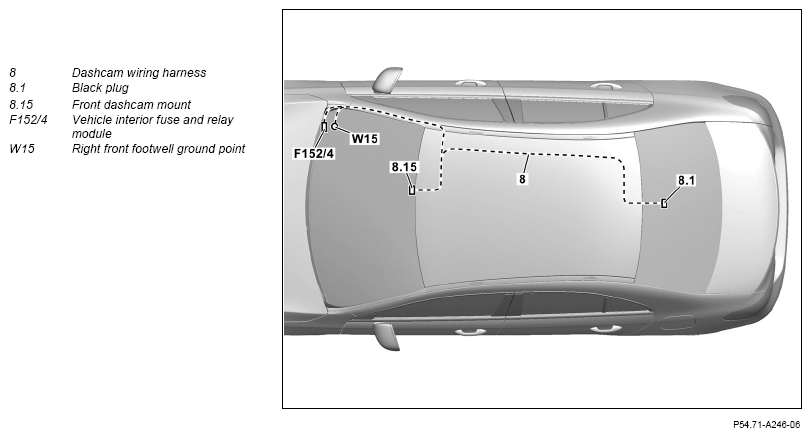

Routing diagram
- Expose strapped down branch-off line (arrow M) for rear dashcam.
- Expose black plug (8.1) of dashcam wiring harness (8).
To do this, remove the fabric tape (41) and pocket (40) from dashcam wiring harness (8).
- Route branch-off line for rear dashcam of dashcam wiring harness (8) from vehicle interior fuse and relay module (F152/4) to A-pillar at top.
Route branch-off line for dashcam at rear above the window airbag (30).
Use a pull-through device.
- Route branch-off line for rear dashcam of dashcam wiring harness (8) on roof lining towards rear up to center of roof lining.
Route branch-off line for rear dashcam behind mount for rear clothes hook (arrow).
Route dashcam wiring harness (8) in front area at same height.
Route branch-off line for rear dashcam behind mount for rear grab handle.
- Strap down extended lengths of dashcam wiring harness (8) in area of their routing.
- Fasten dashcam wiring harness (8) on roof lining using felt adhesive tape.
Shown on vehicle with code 413 (Panoramic sliding sunroof/panoramic roof) with removed roof lining
- Route dashcam wiring harness (8) by dimension (a) beyond edge of cutout for additional brake lamp in roof lining (b).
a = 280 mm
