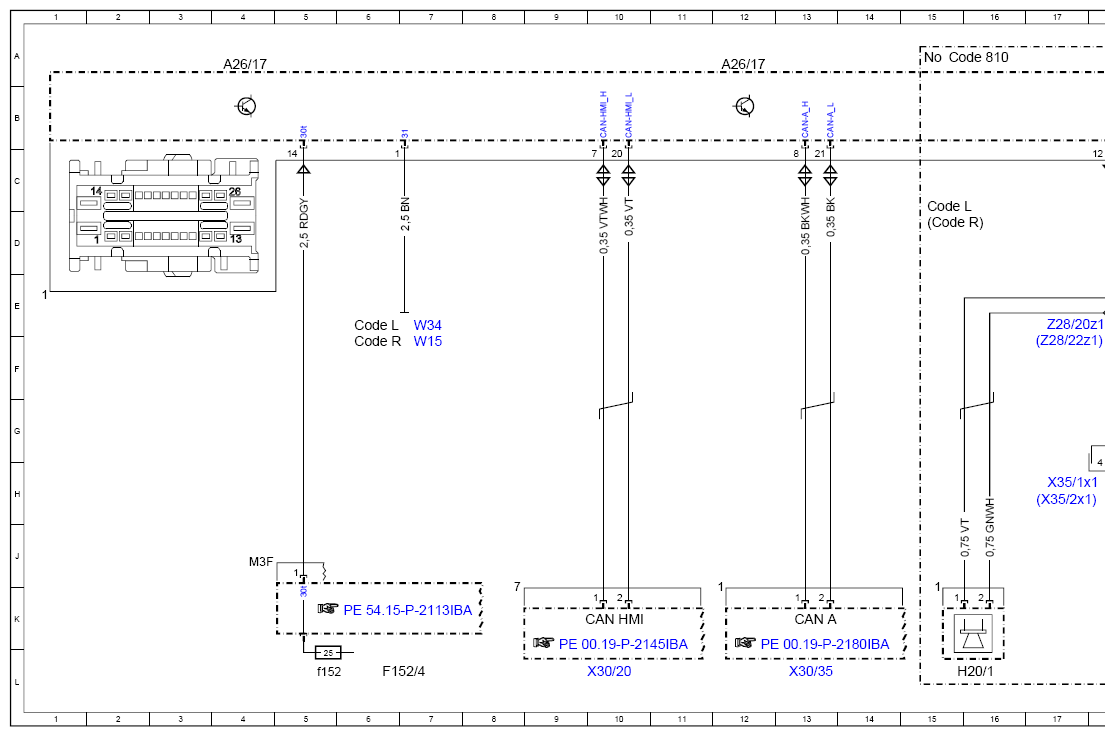

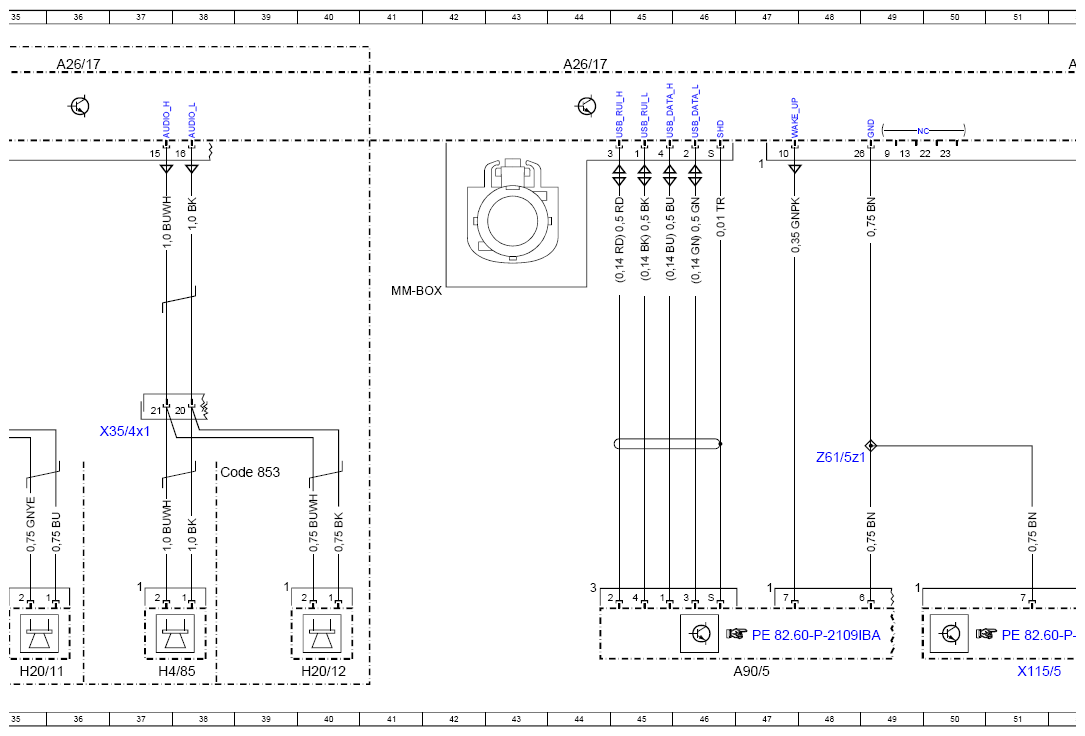

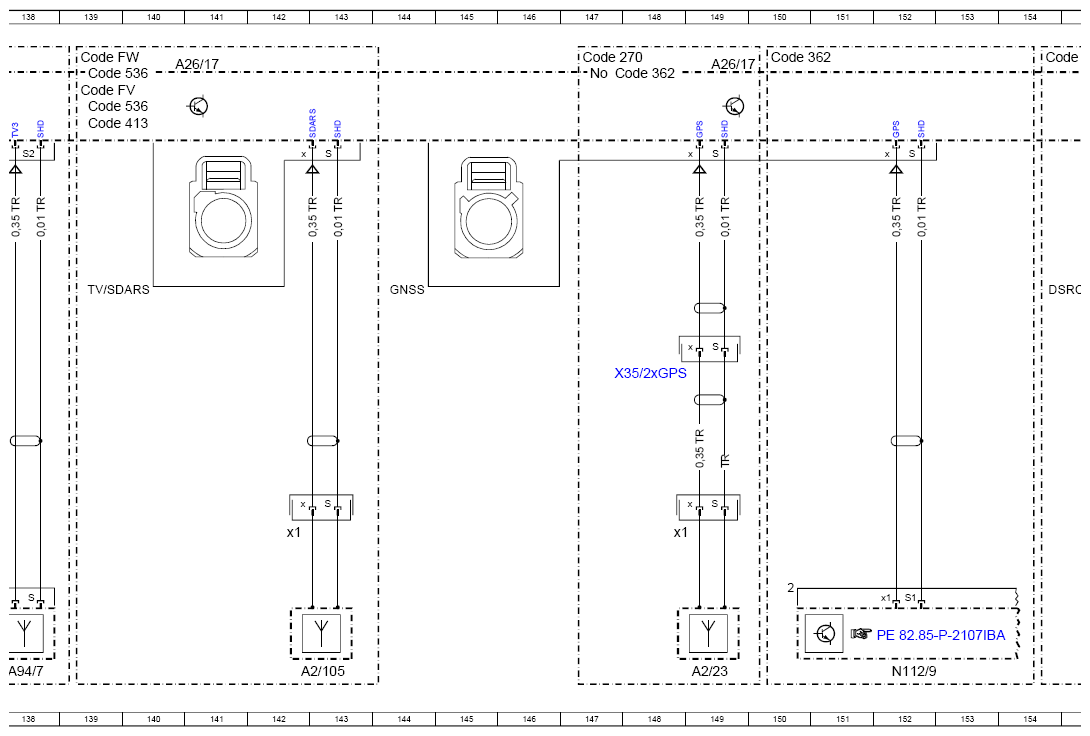

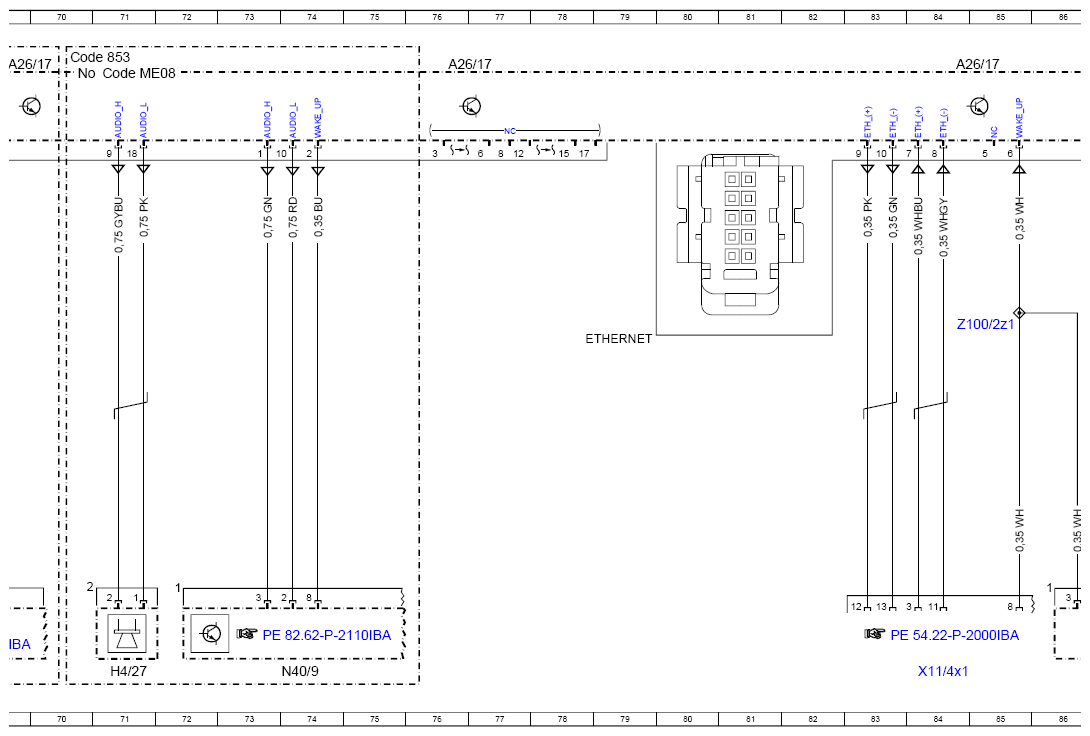

Wiring Diagram Of Head Unit - PE82.85-P-2110-97IBA
Model 177
with code 547 (Connect 20 Entry (NTG6))
Head unit A26/17
Model 177
with code 548 (Connect 20 MID (NTG6))
Head unit A26/17
Model 177
with code 549 (Connect 20 HIGH (NTG6))
Head unit A26/17
| Code: | Designation: | Position: |
|---|---|---|

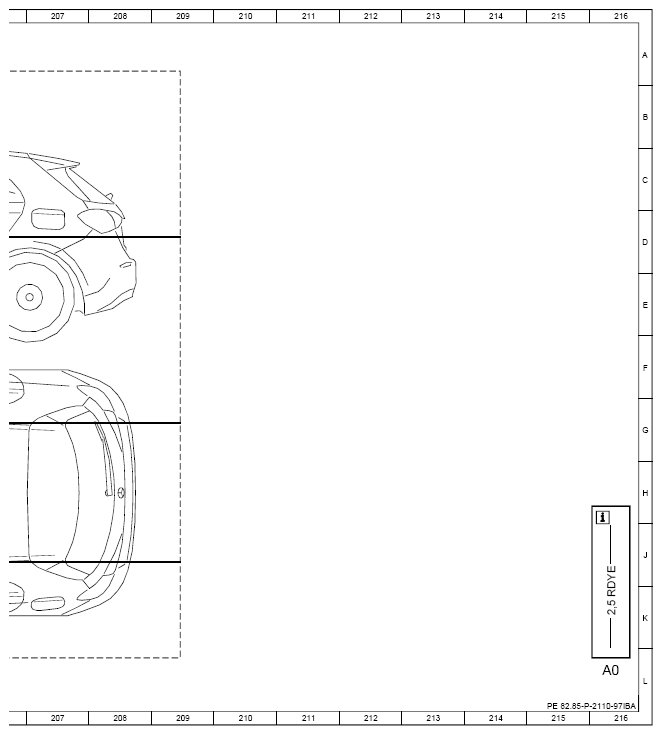

| A0 | Use of wiring diagrams | 216L |
| A2/105 | SDARS antenna | 143L |
| A2/105x1 | SDARS antenna electrical connector | 142J |

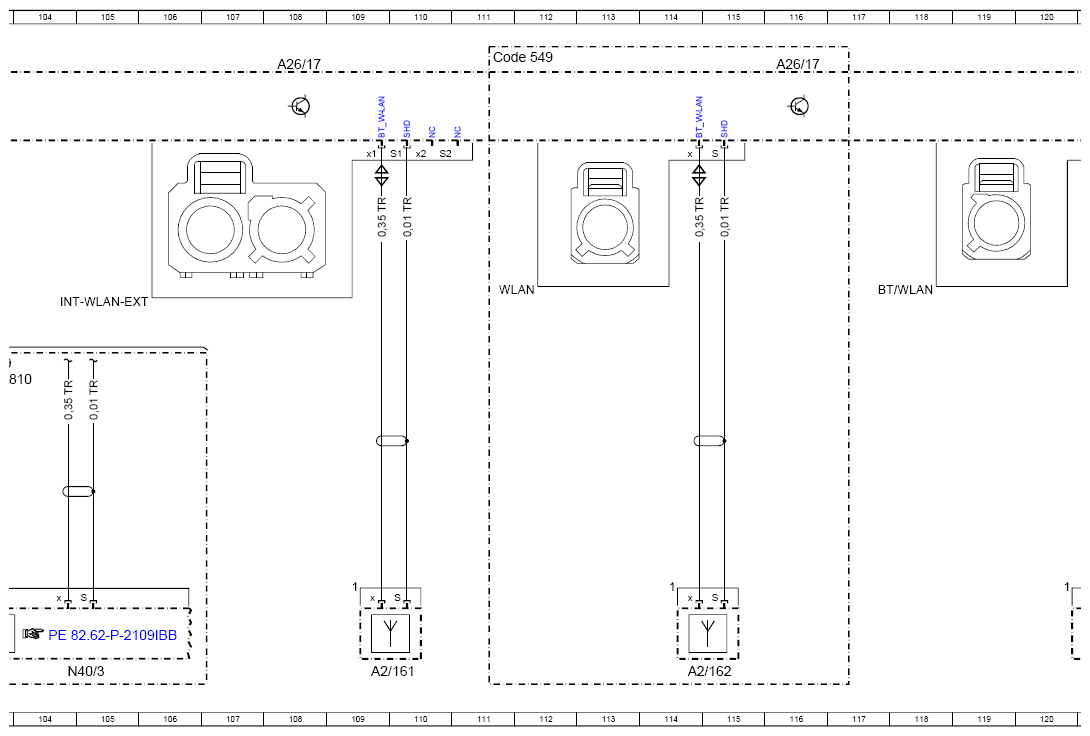

| A2/161 | Bluetooth®/Wi-Fi antenna | 109L |
| A2/162 | Bluetooth®/Wi-Fi antenna | 114L |

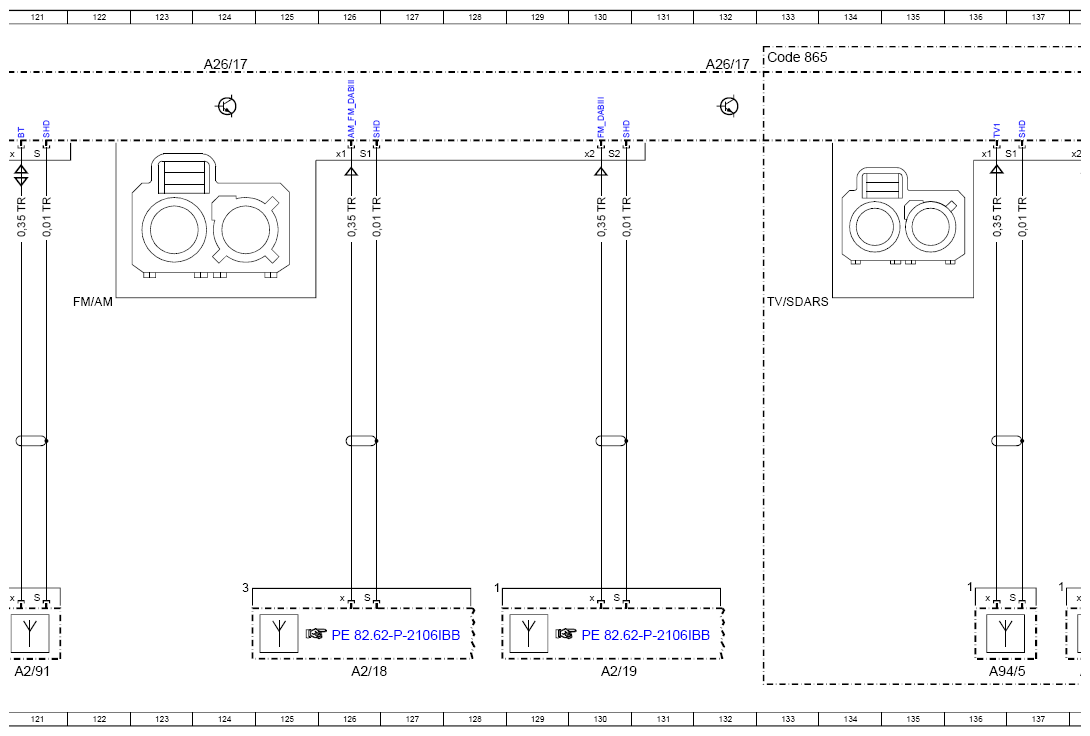

| A2/18 | FM, AM, CL, DAB and KEYLESS-GO antenna amplifier | 126L |
| A2/19 | FM2, DAB and TV2 antenna amplifier | 130L |
| A2/23 | GPS antenna | 149L |
| A2/23x1 | GPS antenna electrical connector | 148J |
| A2/91 | Bluetooth®/Wi-Fi antenna | 121L |

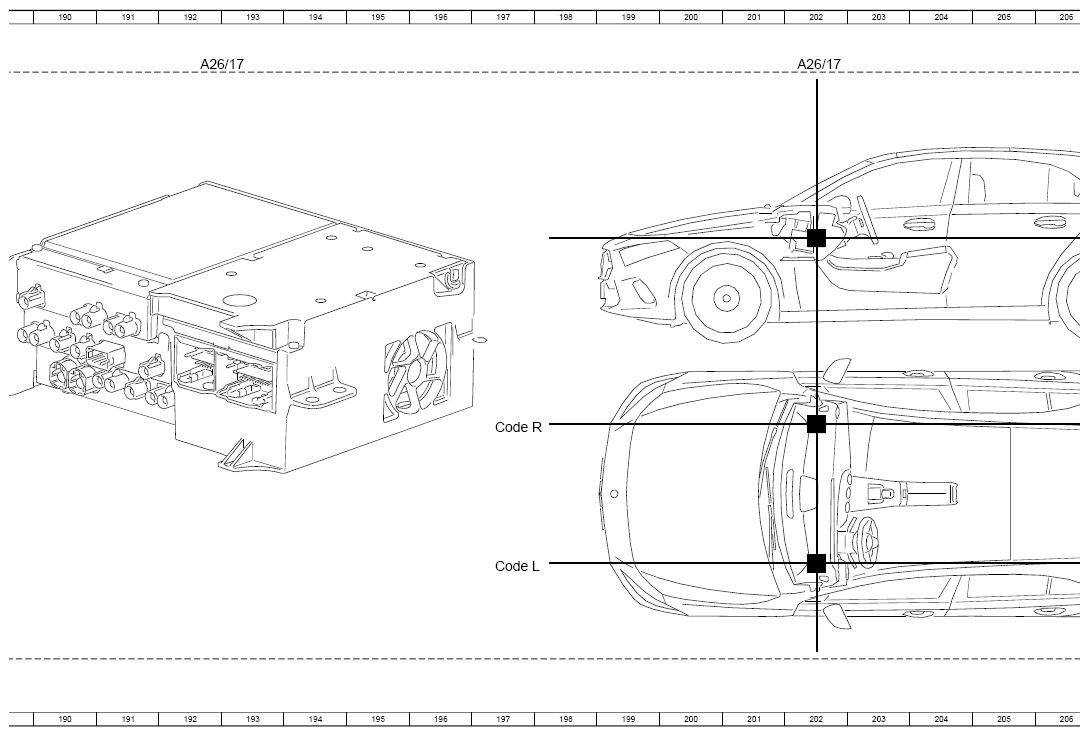

| A26/17 | Head unit | 4A |
| A26/17 | Head unit | 12A |
| A26/17 | Head unit | 20A |
| A26/17 | Head unit | 28A |
| A26/17 | Head unit | 36A |
| A26/17 | Head unit | 44A |
| A26/17 | Head unit | 52A |
| A26/17 | Head unit | 60A |
| A26/17 | Head unit | 69A |
| A26/17 | Head unit | 76A |
| A26/17 | Head unit | 84A |
| A26/17 | Head unit | 92A |
| A26/17 | Head unit | 100A |
| A26/17 | Head unit | 108A |
| A26/17 | Head unit | 116A |
| A26/17 | Head unit | 124A |
| A26/17 | Head unit | 132A |
| A26/17 | Head unit | 156A |
| A26/17 | Head unit | 141A |
| A26/17 | Head unit | 149A |
| A26/17 | Head unit | 164A |
| A26/17 | Head unit | 172A |
| A26/17 | Head unit | 183A |
| A26/17 | Head unit | 192A |
| A26/17 | Head unit | 202A |
| A40/16 | Head unit/instrument cluster display cluster | 96L |

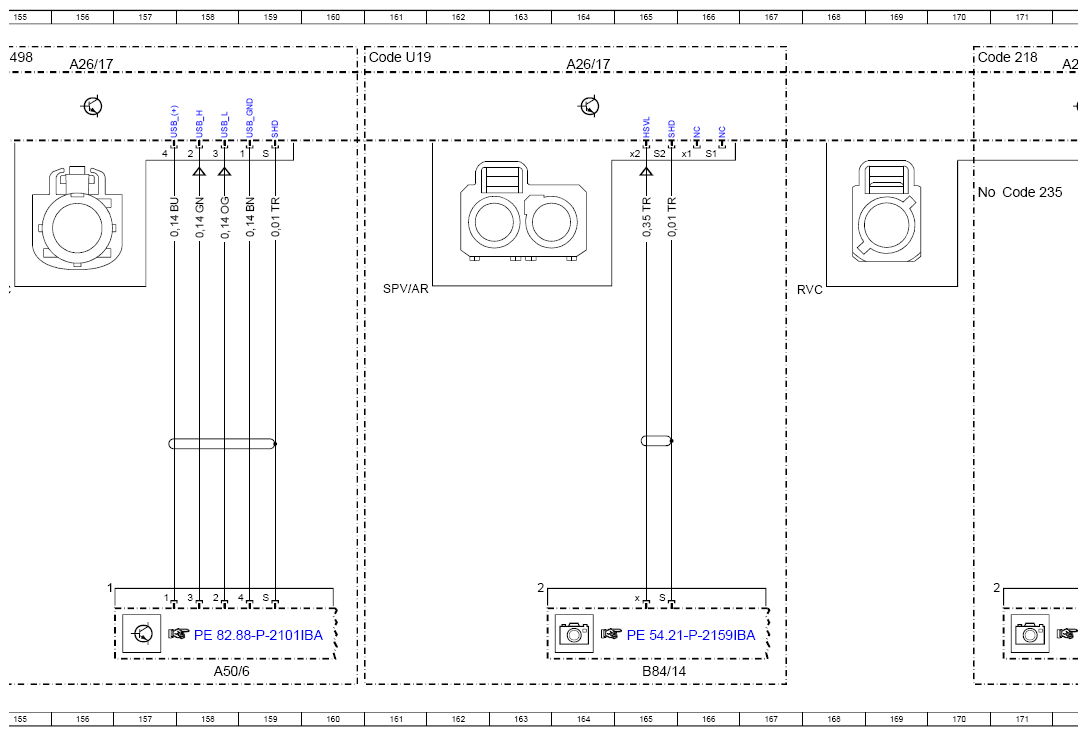

| A50/6 | Dedicated Short-Range Communications control unit | 158L |
| A90/5 | Multimedia connection unit | 47L |
| A94/5 | TV 1 antenna amplifier | 136L |
| A94/7 | TV 3 antenna amplifier | 138L |

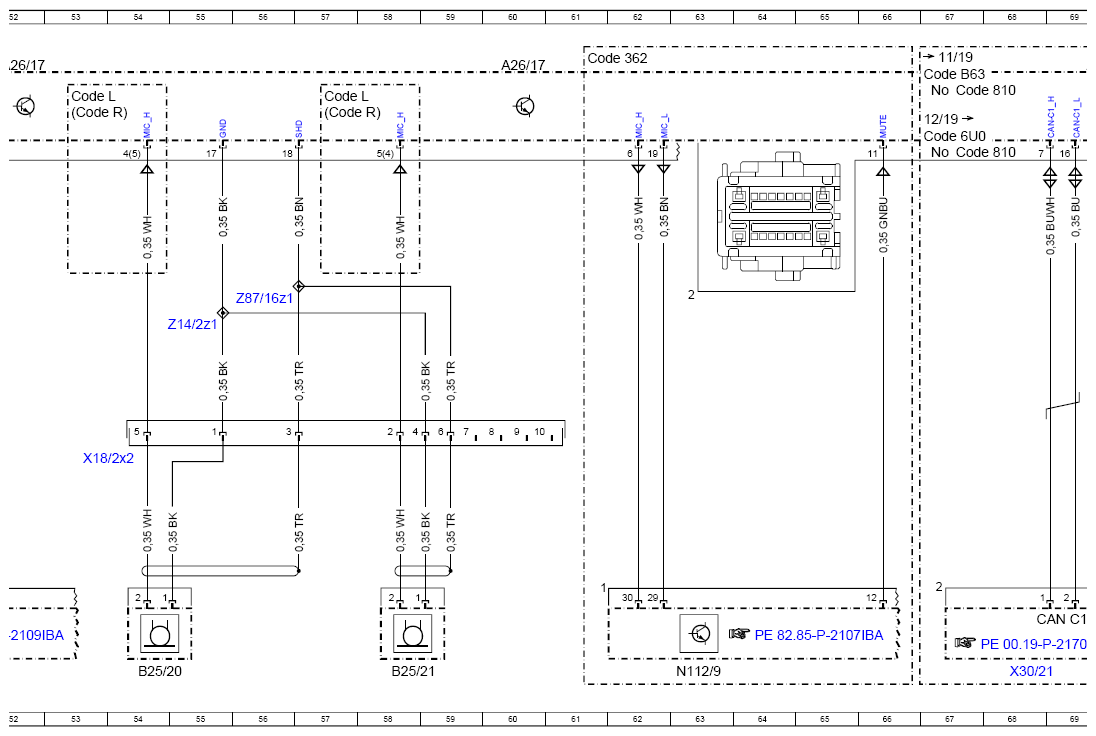

| B25/20 | Driver hands-free system microphone | 54L |
| B25/21 | Front passenger hands-free system microphone | 58L |
| B84/14 | Augmented reality camera | 165L |
| CAN A | Telematics CAN | 13K |
| CAN C1 | Drive train CAN | 69K |
| CAN HMI | User interface CAN | 10K |
| Code 218 | Backup camera | 170A |
| Code 235 | Active Parking Assist with PARKTRONIC | 171C |
| Code 235 | Active Parking Assist with PARKTRONIC | 175C |
| Code 270 | GPS antenna | 147A |
| Code 362 | HERMES LTE | 61A |
| Code 362 | HERMES LTE | 147A |
| Code 362 | HERMES LTE | 150A |
| Code 413 | Panoramic sliding sunroof | 139B |
| Code 498 | Japan version | 154A |
| Code 536 | SIRIUS satellite radio | 139B |
| Code 536 | SIRIUS satellite radio | 139A |
| Code 536 | SIRIUS satellite radio | 182C |
| Code 549 | Connect 20 HIGH (NTG6) | 111A |
| Code 6U0 | Engine sound via speakers | 67B |
| Code 810 | Sound system | 103F |
| Code 810 | Sound system | 15A |
| Code 810 | Sound system | 67C |
| Code 810 | Sound system | 98F |
| Code 810 | Sound system | 67B |
| Code 853 | Midline sound system | 34H |
| Code 853 | Midline sound system | 38H |
| Code 853 | Midline sound system | 70A |
| Code 865 | TV tuner | 133A |
| Code 865 | TV tuner | 184C |
| Code B63 | Sporty engine sound | 67A |
| Code FV | LONG SEDAN | 139B |
| Code FW | SEDAN | 139A |
| Code L | LEFT-HAND DRIVE | 6E |
| Code L | LEFT-HAND DRIVE | 15C |
| Code L | LEFT-HAND DRIVE | 53B |
| Code L | LEFT-HAND DRIVE | 57B |
| Code L | LEFT-HAND DRIVE | 197J |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 102F |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 98F |
| Code ME08 | Hybrid drive 75-84 KW VARIANT (INCLUDING PLUGIN) | 71A |
| Code R | RIGHT-HAND DRIVE | 6F |
| Code R | RIGHT-HAND DRIVE | 15D |
| Code R | RIGHT-HAND DRIVE | 53B |
| Code R | RIGHT-HAND DRIVE | 57B |
| Code R | RIGHT-HAND DRIVE | 197G |
| Code U19 | Augmented Reality | 161A |
| F152/4 | Vehicle interior fuse and relay module | 6L |
| F152/4f152 | Fuse 152 | 5L |
| H20/1 | Left A-pillar tweeter | 16L |
| H20/11 | Left rear door tweeter | 35L |
| H20/12 | Right rear door tweeter | 40L |
| H20/2 | Right A-pillar tweeter | 24L |
| H4/27 | Center instrument panel speaker | 71L |

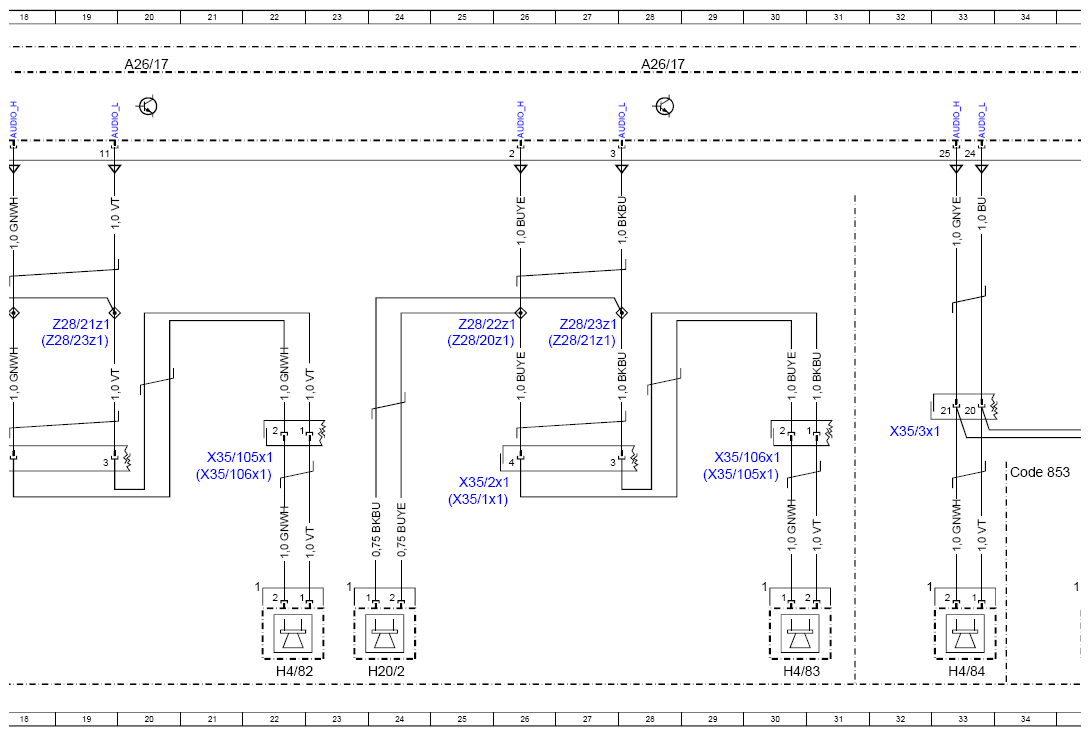

| H4/82 | Left front door woofer/midrange speaker | 22L |
| H4/83 | Right front door woofer/midrange speaker | 30L |
| H4/84 | Left rear door woofer/midrange speaker | 33L |
| H4/85 | Right rear door woofer/midrange speaker | 37L |
| N112/9 | HERMES control unit | 63L |
| N112/9 | HERMES control unit | 152L |

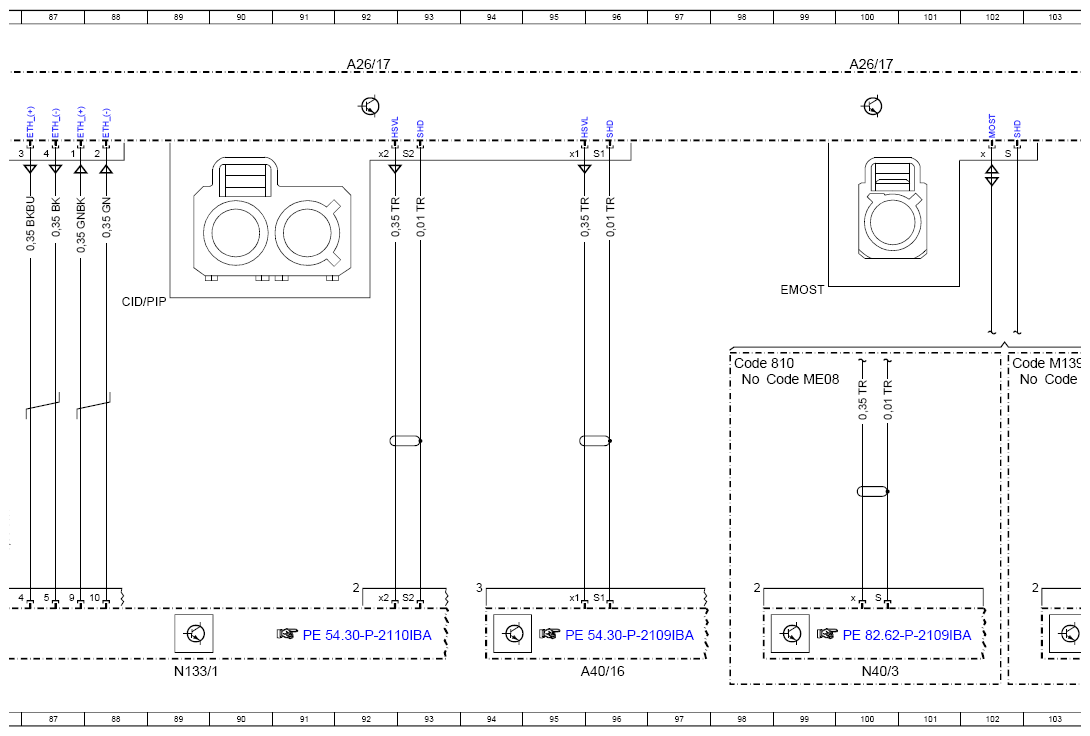

| N133/1 | Instrument cluster control unit | 89L |
| N40/3 | Sound system amplifier control unit | 100L |
| N40/3 | Sound system amplifier control unit | 105L |
| N40/9 | Subwoofer amplifier | 74L |

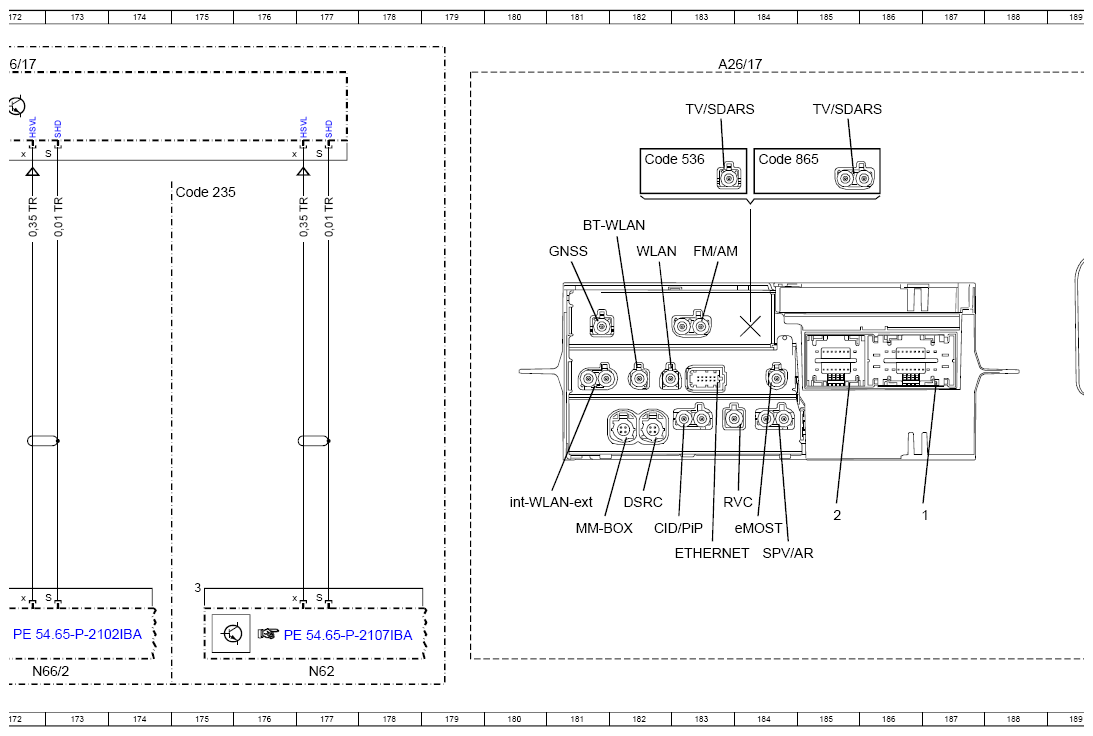

| N62 | Parking system control unit | 177L |
| N66/2 | Backup camera control unit | 172L |
| W15 | Right front footwell ground point | 7F |
| W34 | Left footwell ground point | 7E |
| X11/4x1 | Diagnostic connector | 84L |
| X115/5 | Front center console USB connector | 51L |
| X18/2x2 | Vehicle interior/roof electrical connector | 54H |
| X30/20 | User interface CAN (CAN HMI) potential distributor | 10L |
| X30/21 | Drive train CAN (CAN C1) potential distributor | 68L |
| X30/35 | Telematics CAN potential distributor (CAN A) | 13L |
| X35/105x1 | Driver door module electrical connector | 21H |
| X35/105x1 | Driver door module electrical connector | 29H |
| X35/106x1 | Passenger door module electrical connector | 21H |
| X35/106x1 | Passenger door module electrical connector | 30H |
| X35/1x1 | Driver door electrical connector | 25H |
| X35/1x1 | Driver door electrical connector | 17H |
| X35/2x1 | Front passenger door electrical connector | 17H |
| X35/2x1 | Front passenger door electrical connector | 25H |
| X35/2xGPS | Front passenger door electrical connector | 148F |
| X35/3x1 | Left rear door electrical connector | 32G |
| X35/4x1 | Right rear door electrical connector | 37G |
| Z100/2z1 | Wake-up signal connector sleeve | 85E |
| Z14/2z1 | Ground connection connector sleeve | 55E |
| Z28/20z1 | Audio signal HIGH connector sleeve | 17E |
| Z28/20z1 | Audio signal HIGH connector sleeve | 25F |
| Z28/21z1 | Audio signal LOW connector sleeve | 19E |
| Z28/21z1 | Audio signal LOW connector sleeve | 27F |
| Z28/22z1 | Audio signal HIGH connector sleeve | 17F |
| Z28/22z1 | Audio signal HIGH connector sleeve | 25E |
| Z28/23z1 | Audio signal LOW connector sleeve | 19F |
| Z28/23z1 | Audio signal LOW connector sleeve | 27E |
| Z61/5z1 | Ground connection connector sleeve | 48G |
| Z87/16z1 | Shielding connector sleeve | 56E |
