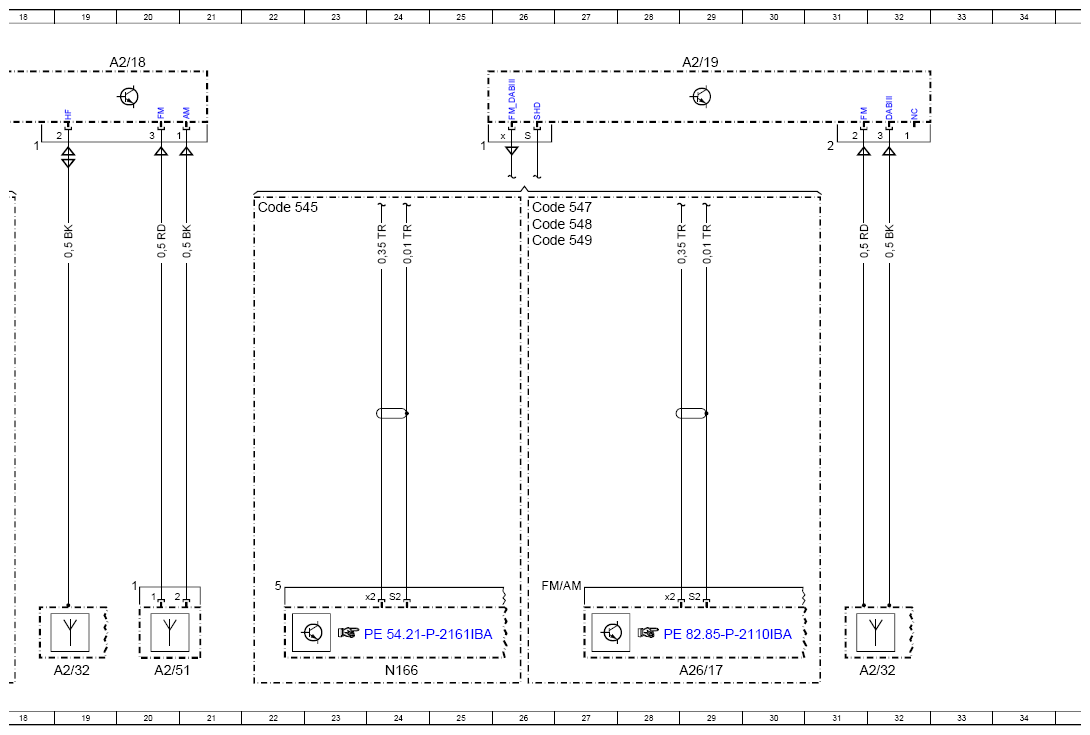

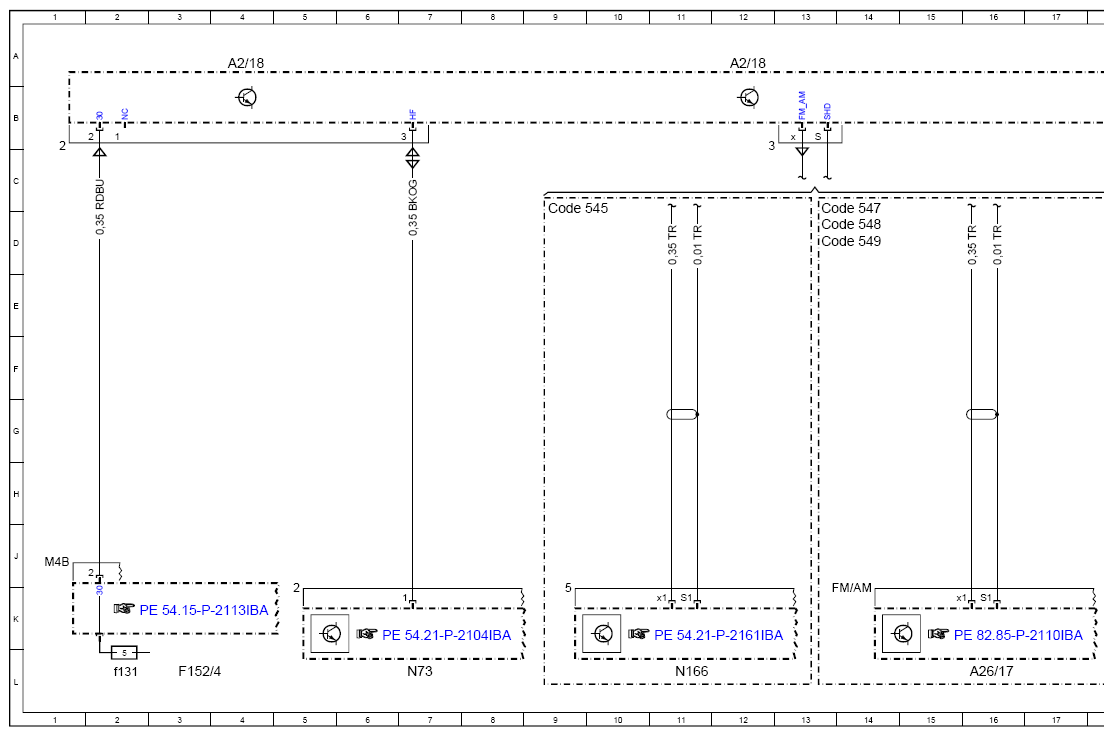

Wiring Diagram For Antennas - PE82.62-P-2106-97IBB
Model 177
Rear window/rear spoiler antennas
| Code: | Designation: | Position: |
|---|---|---|

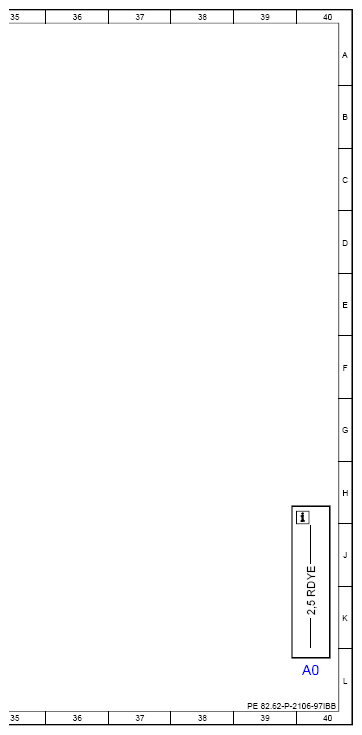

| A0 | Use of wiring diagrams | 40L |
| A2/18 | FM, AM, CL, DAB and KEYLESS-GO antenna amplifier | 4A |
| A2/18 | FM, AM, CL, DAB and KEYLESS-GO antenna amplifier | 12A |
| A2/18 | FM, AM, CL, DAB and KEYLESS-GO antenna amplifier | 20A |
| A2/19 | FM2, DAB and TV2 antenna amplifier | 29A |
| A2/32 | Rear window antenna | 19L |
| A2/32 | Rear window antenna | 32L |
| A2/51 | Rear spoiler antenna | 20L |
| A26/17 | Head unit | 16L |
| A26/17 | Head unit | 29L |
| Code 545 | Connect 5 (NTG6) | 9D |
| Code 545 | Connect 5 (NTG6) | 22D |
| Code 547 | Connect 20 Entry (NTG6) | 26D |
| Code 547 | Connect 20 Entry (NTG6) | 13D |
| Code 548 | Connect 20 MID (NTG6) | 26D |
| Code 548 | Connect 20 MID (NTG6) | 13D |
| Code 549 | Connect 20 HIGH (NTG6) | 26D |
| Code 549 | Connect 20 HIGH (NTG6) | 13D |
| F152/4 | Vehicle interior fuse and relay module | 3L |
| F152/4f131 | Fuse 131 | 2L |
| N166 | Head unit/instrument cluster control unit | 11L |
| N166 | Head unit/instrument cluster control unit | 24L |
| N73 | Electronic ignition switch control unit | 7L |
