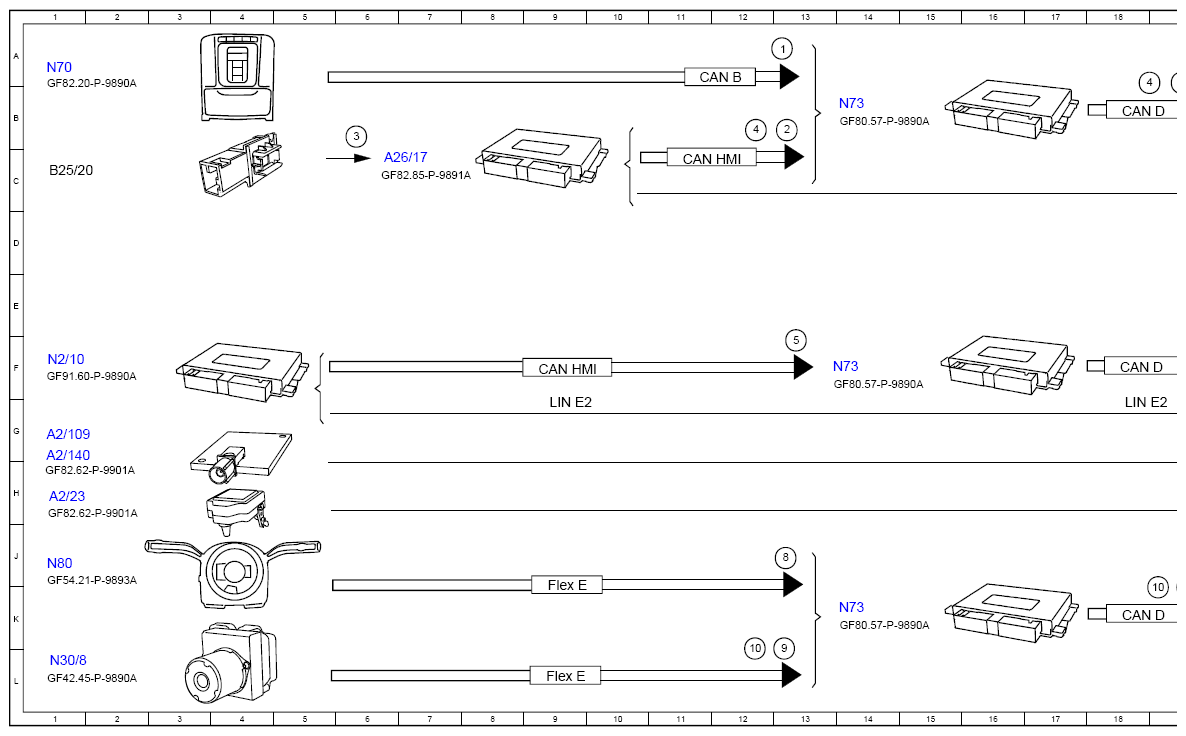

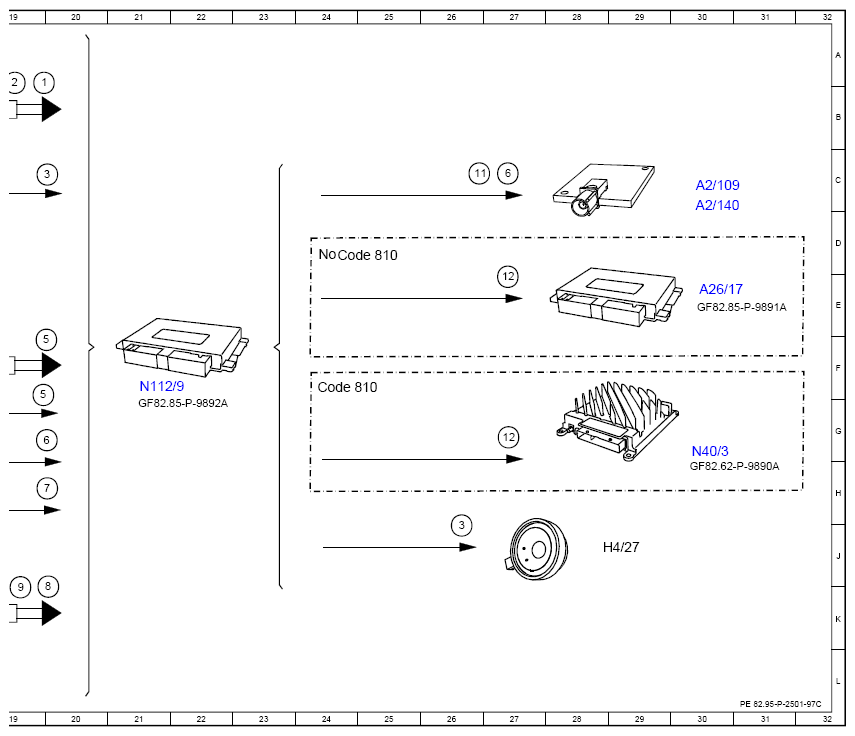

(Function Schematic For Triggering Emergency Call - PE82.95-P-2501-97C)
Model 293 with code 362 (HERMES communications module LTE)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Manual emergency call, signal | 13A |
| 1 | Manual emergency call, signal | 20A |
| 10 | Wheel speed, signal | 19K |
| 10 | Wheel speed, signal | 12L |
| 11 | Emergency call data telegram, signal | 26C |
| 12 | Mute function, signal | 27D |
| 12 | Mute function, signal | 27G |
| 2 | Operation, signal | 13C |
| 2 | Operation, signal | 19B |
| 3 | Audio, signal | 26H |
| 3 | Audio, signal | 6B |
| 3 | Audio, signal | 20C |
| 4 | Position data, signal | 12B |
| 4 | Position data, signal | 19B |
| 5 | Crash, signal | 13F |
| 5 | Crash, signal | 19F |
| 6 | Telephone, signal | 27C |
| 6 | Telephone, signal | 19G |
| 7 | GPS, signal | 20H |
| 8 | Steering wheel angle sensor, signal | 13J |
| 8 | Steering wheel angle sensor, signal | 20K |
| 9 | Yaw rate, signal | 13L |
| 9 | Yaw rate, signal | 19K |
| A2/109 | Telephone antenna splitter | 30C |
| A2/109 | Telephone antenna splitter | 1G |
| A2/140 | Emergency call system antenna 1 | 30C |
| A2/140 | Emergency call system antenna 1 | 1G |
| A2/23 | GPS antenna | 1H |
| A26/17 | Head unit | 30E |
| A26/17 | Head unit | 6C |
| B25/20 | Driver hands-free system microphone | 1C |
| CAN B | Interior CAN | 12A |
| CAN D | Diagnostic CAN | 18F |
| CAN D | Diagnostic CAN | 18K |
| CAN D | Diagnostic CAN | 18B |
| CAN HMI | User interface CAN | 9F |
| CAN HMI | User interface CAN | 11C |
| Code 810 | Sound system | 24F |
| Code 810 | Sound system | 24D |
| Flex E | Chassis FlexRay | 9K |
| Flex E | Chassis FlexRay | 9L |
| H4/27 | Center instrument panel speaker | 29J |
| LIN E2 | Seat occupied recognition LIN | 9G |
| LIN E2 | Seat occupied recognition LIN | 18G |
| N112/9 | HERMES control unit | 21F |
| N2/10 | Supplemental restraint system control unit | 1F |
| N30/8 | Regenerative braking system control unit | 1L |
| N40/3 | Sound system amplifier control unit | 30G |
| N70 | Overhead control panel control unit | 1A |
| N73 | Ignition lock control unit | 14F |
| N73 | Ignition lock control unit | 14K |
| N73 | Ignition lock control unit | 14B |
| N80 | Steering column module control unit | 1J |
