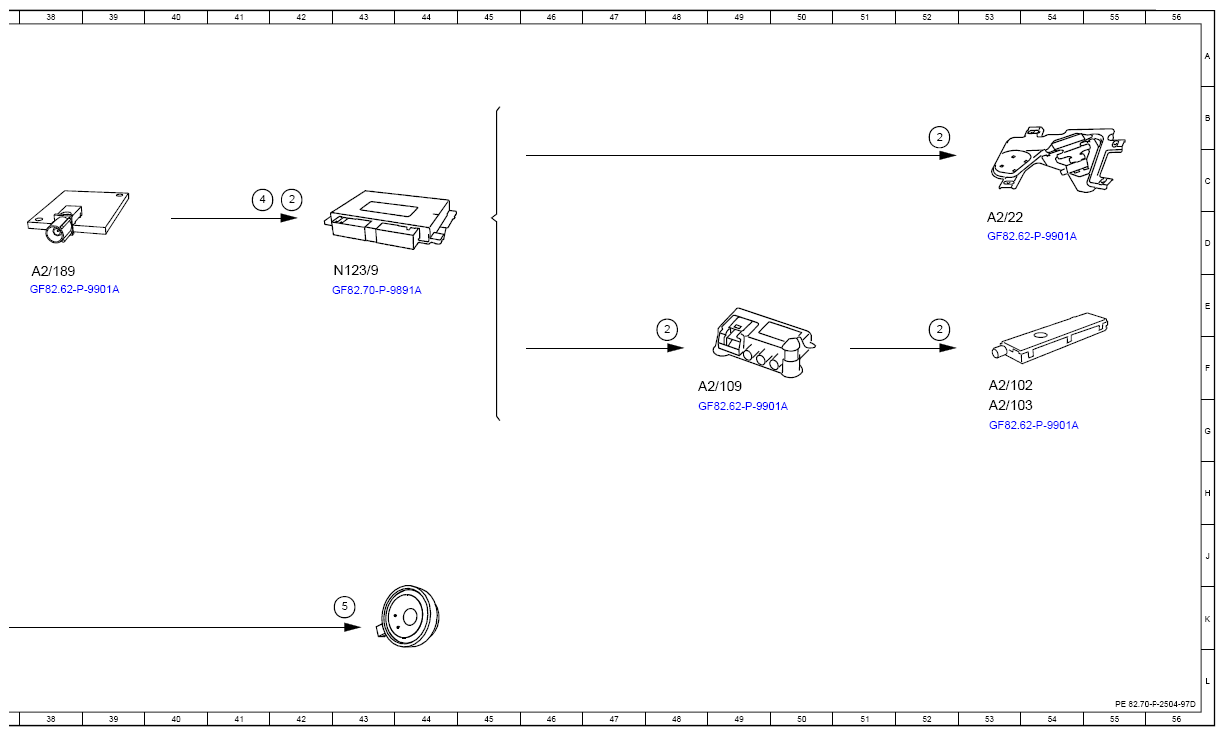

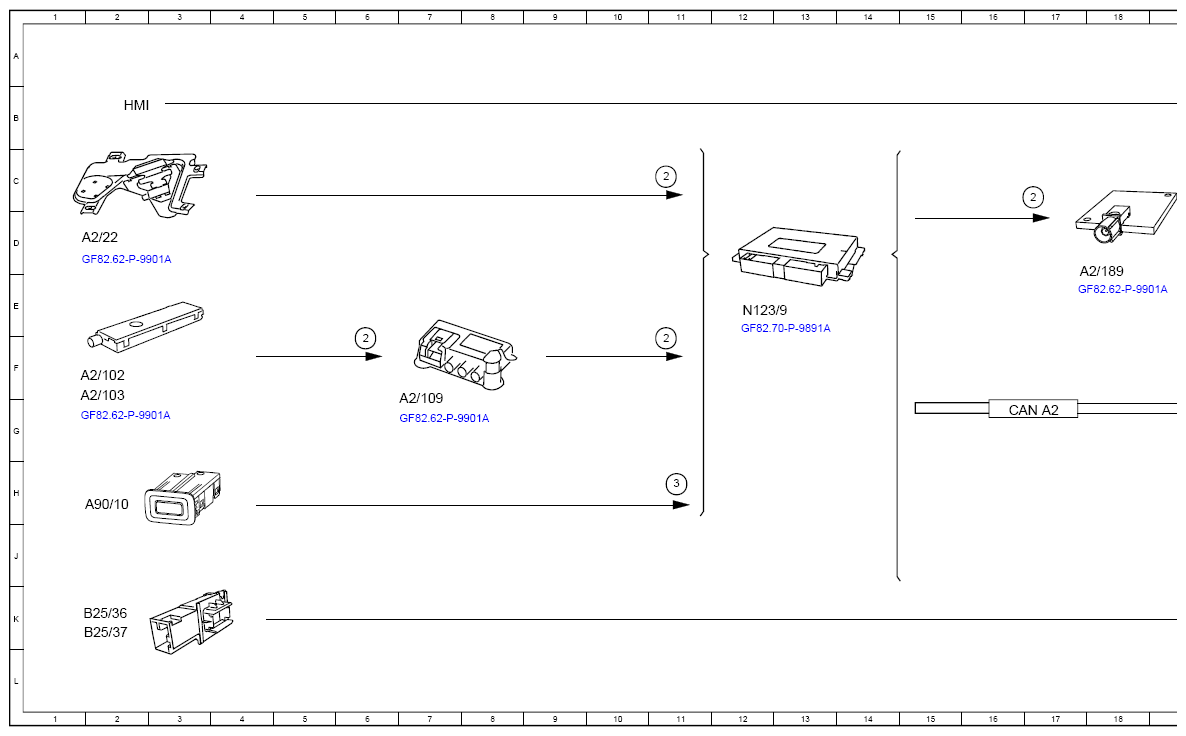

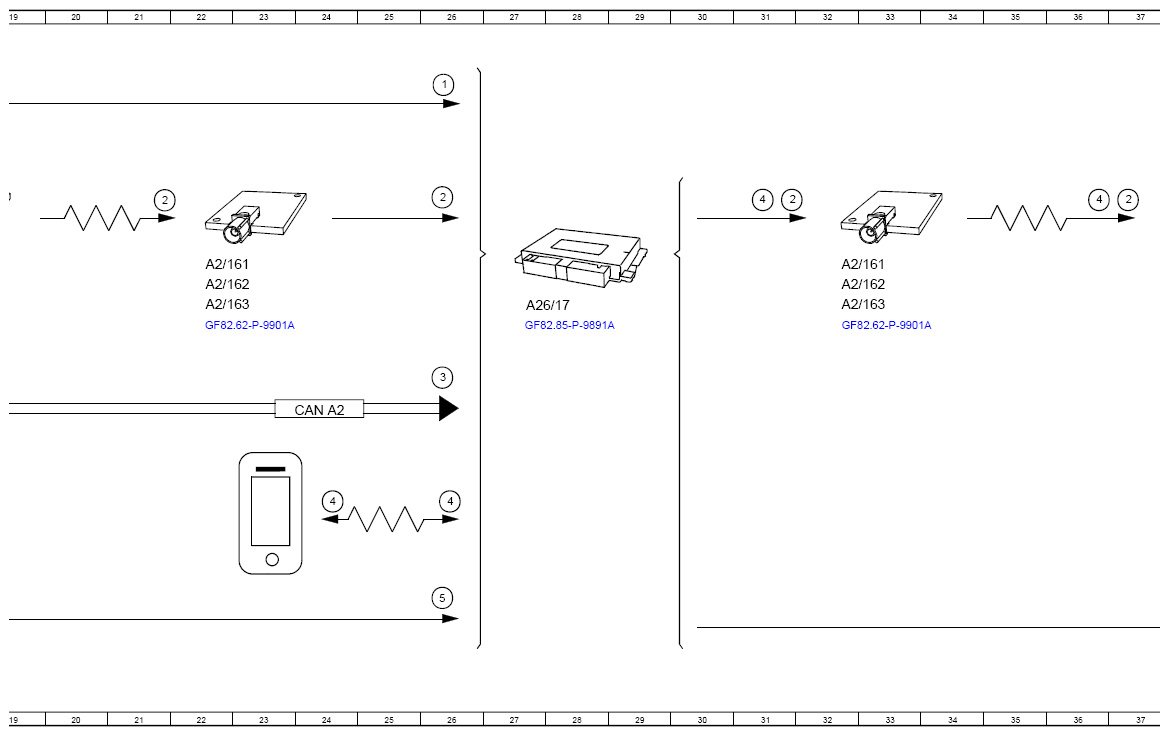

(Function Schematic For Telephony With Telephone Control Unit - PE82.70-P-2504-97D)
Model 192, 232 with code 380 (Car telephony package)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Operation, signal | 26A |
| 2 | Telephone, signal | 11F |
| 2 | Telephone, signal | 6F |
| 2 | Telephone, signal | 52E |
| 2 | Telephone, signal | 48E |
| 2 | Telephone, signal | 11C |
| 2 | Telephone, signal | 52B |
| 2 | Telephone, signal | 17C |
| 2 | Telephone, signal | 21C |
| 2 | Telephone, signal | 26C |
| 2 | Telephone, signal | 31C |
| 2 | Telephone, signal | 37C |
| 2 | Telephone, signal | 42C |
| 3 | SIM card, status | 11H |
| 3 | SIM card, status | 26F |
| 4 | Bluetooth® SAP, communication | 24H |
| 4 | Bluetooth® SAP, communication | 26H |
| 4 | Bluetooth® SAP, communication | 31C |
| 4 | Bluetooth® SAP, communication | 36C |
| 4 | Bluetooth® SAP, communication | 41C |
| 5 | Audio, signal | 43K |
| 5 | Audio, signal | 26K |
| A2/102 | Left telephone antenna | 1F |
| A2/102 | Left telephone antenna | 53F |
| A2/103 | Right telephone antenna | 1G |
| A2/103 | Right telephone antenna | 53G |
| A2/109 | Telephone antenna splitter | 7G |
| A2/109 | Telephone antenna splitter | 48F |
| A2/161 | Bluetooth®/Wi-Fi antenna | 22D |
| A2/161 | Bluetooth®/Wi-Fi antenna | 32D |
| A2/162 | Bluetooth®/Wi-Fi antenna | 22E |
| A2/162 | Bluetooth®/Wi-Fi antenna | 32E |
| A2/163 | Bluetooth®/Wi-Fi antenna | 22E |
| A2/163 | Bluetooth®/Wi-Fi antenna | 32E |
| A2/189 | Bluetooth®/Wi-Fi antenna | 18E |
| A2/189 | Bluetooth®/Wi-Fi antenna | 38E |
| A2/22 | Telephone antenna | 53D |
| A2/22 | Telephone antenna | 1D |
| A26/17 | Head unit | 27E |
| A90/10 | Multimedia connection unit | 2H |
| B25/36 | Microphone | 2K |
| B25/37 | Microphone | 2K |
| CAN A2 | CAN 2 for telematics | 16G |
| CAN A2 | CAN 2 for telematics | 24G |
| N123/9 | Telephone control unit | 12E |
| N123/9 | Telephone control unit | 43E |
