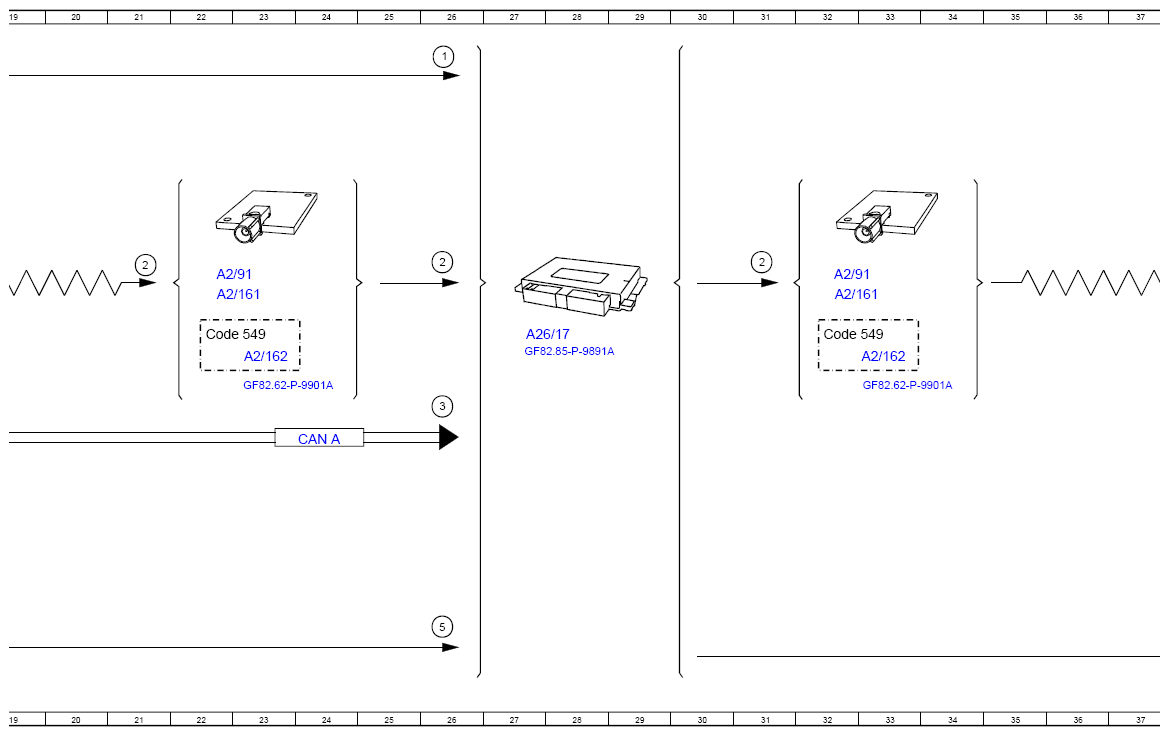

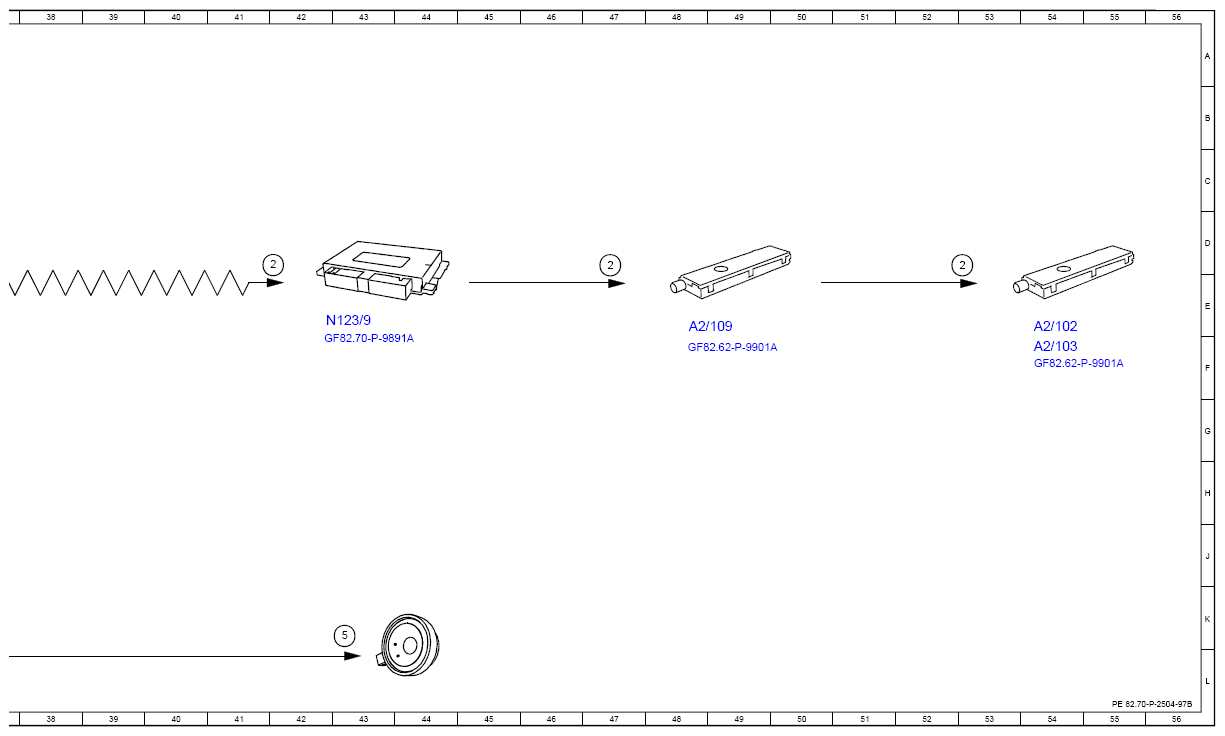

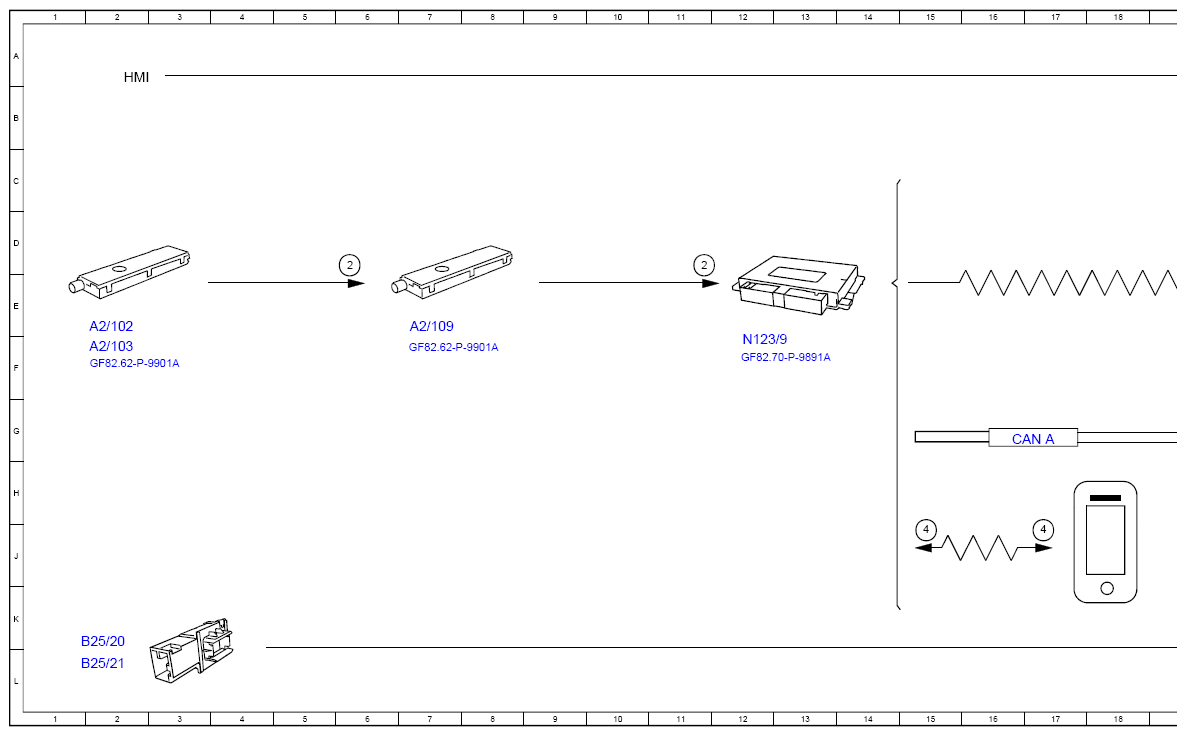

(Function Schematic For Telephony With Telephone Control Unit - PE82.70-P-2504-97B)
Model 213, 238.3, 257 as of model year 2021 with code 380 (Car telephony package)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Operation, signal | 26A |
| 2 | Telephone, signal | 11D |
| 2 | Telephone, signal | 6D |
| 2 | Telephone, signal | 53D |
| 2 | Telephone, signal | 47D |
| 2 | Telephone, signal | 21D |
| 2 | Telephone, signal | 26D |
| 2 | Telephone, signal | 31D |
| 2 | Telephone, signal | 42D |
| 3 | SIM card, status | 26G |
| 4 | Bluetooth® SAP, communication | 15J |
| 4 | Bluetooth® SAP, communication | 17J |
| 5 | Audio, signal | 43K |
| 5 | Audio, signal | 26K |
| A2/102 | Left telephone antenna | 2E |
| A2/102 | Left telephone antenna | 54E |
| A2/103 | Right telephone antenna | 2F |
| A2/103 | Right telephone antenna | 54F |
| A2/109 | Telephone antenna splitter | 7E |
| A2/109 | Telephone antenna splitter | 48E |
| A2/161 | WLAN antenna 1 | 22E |
| A2/161 | WLAN antenna 1 | 32E |
| A2/162 | Wi-Fi antenna 2 | 23F |
| A2/162 | Wi-Fi antenna 2 | 33F |
| A2/91 | Bluetooth® antenna | 22E |
| A2/91 | Bluetooth® antenna | 32E |
| A26/17 | Head unit | 27F |
| B25/20 | Driver hands-free system microphone | 1K |
| B25/21 | Front passenger hands-free system microphone | 1L |
| CAN A | Telematics CAN | 17G |
| CAN A | Telematics CAN | 24G |
| Code 549 | Connect 20 HIGH (NTG6) | 22F |
| Code 549 | Connect 20 HIGH (NTG6) | 32F |
| N123/9 | Telephone control unit | 12F |
| N123/9 | Telephone control unit | 43E |
