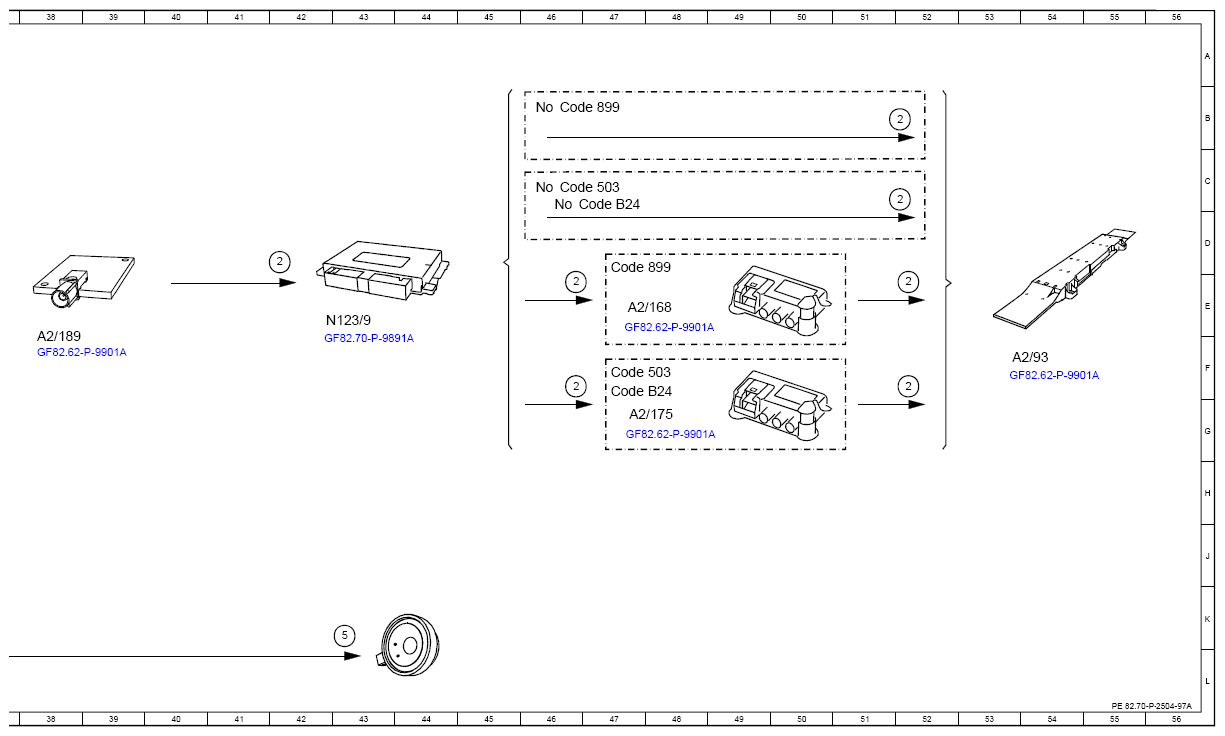

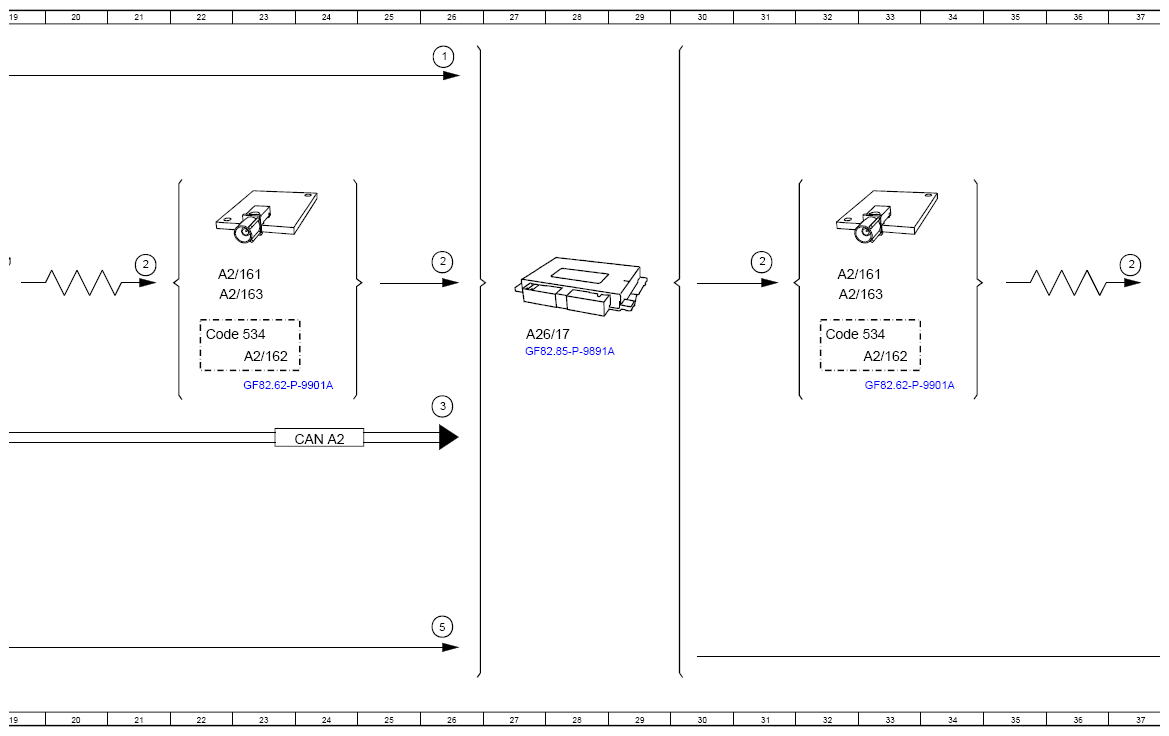

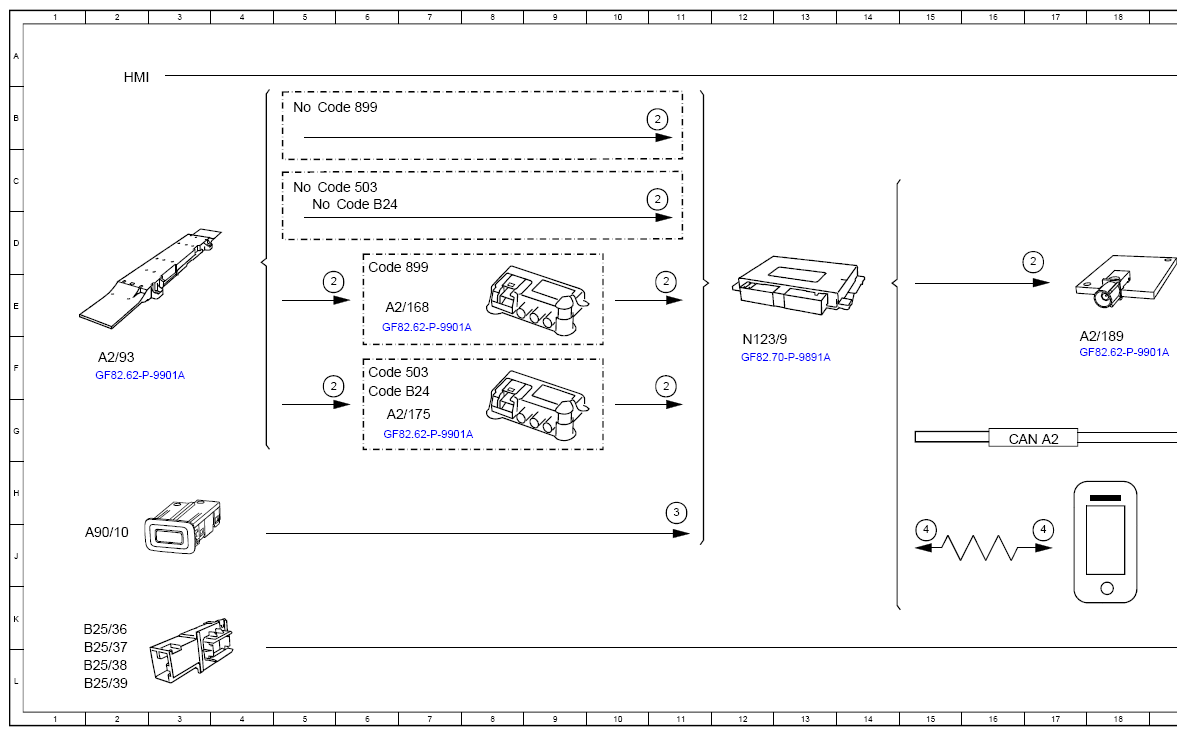

(Function Schematic For Telephony With Telephone Control Unit - PE82.70-P-2504-97A)
Model 223 with code 380 (Car telephony package)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Operation, signal | 26A |
| 2 | Telephone, signal | 11B |
| 2 | Telephone, signal | 11E |
| 2 | Telephone, signal | 11C |
| 2 | Telephone, signal | 11F |
| 2 | Telephone, signal | 5E |
| 2 | Telephone, signal | 5F |
| 2 | Telephone, signal | 52B |
| 2 | Telephone, signal | 52E |
| 2 | Telephone, signal | 52C |
| 2 | Telephone, signal | 52F |
| 2 | Telephone, signal | 46E |
| 2 | Telephone, signal | 46F |
| 2 | Telephone, signal | 17D |
| 2 | Telephone, signal | 21D |
| 2 | Telephone, signal | 26D |
| 2 | Telephone, signal | 31D |
| 2 | Telephone, signal | 37D |
| 2 | Telephone, signal | 42D |
| 3 | SIM card, status | 11H |
| 3 | SIM card, status | 26G |
| 4 | Bluetooth® SAP, communication | 15J |
| 4 | Bluetooth® SAP, communication | 17J |
| 5 | Audio, signal | 43K |
| 5 | Audio, signal | 26K |
| A2/161 | Driver's side Bluetooth®/Wi-Fi antenna | 22E |
| A2/161 | Driver's side Bluetooth®/Wi-Fi antenna | 32E |
| A2/162 | Center Bluetooth®/Wi-Fi antenna | 23F |
| A2/162 | Center Bluetooth®/Wi-Fi antenna | 33F |
| A2/163 | Front passenger side Bluetooth®/Wi-Fi antenna | 22E |
| A2/163 | Front passenger side Bluetooth®/Wi-Fi antenna | 32E |
| A2/168 | Antenna changeover switch | 6E |
| A2/168 | Antenna changeover switch | 47E |
| A2/175 | Antenna changeover switch | 6G |
| A2/175 | Antenna changeover switch | 47G |
| A2/189 | Bluetooth®/Wi-Fi antenna | 18F |
| A2/189 | Bluetooth®/Wi-Fi antenna | 38F |
| A2/93 | Roof antenna module | 2F |
| A2/93 | Roof antenna module | 54F |
| A26/17 | Head unit | 27F |
| A90/10 | Telephone multimedia connection unit | 2J |
| B25/36 | Microphone | 2K |
| B25/37 | Microphone | 2L |
| B25/38 | Microphone | 2L |
| B25/39 | Microphone | 2L |
| CAN A2 | CAN 2 for telematics | 16G |
| CAN A2 | CAN 2 for telematics | 24G |
| Code 503 | Remote-controlled parking | 5C |
| Code 503 | Remote-controlled parking | 6F |
| Code 503 | Remote-controlled parking | 46C |
| Code 503 | Remote-controlled parking | 47F |
| Code 534 | Connect 20 Premium (NTG7) | 22F |
| Code 534 | Connect 20 Premium (NTG7) | 32F |
| Code 899 | Wireless phone charging at front and antenna | 5B |
| Code 899 | Wireless phone charging at front and antenna | 6D |
| Code 899 | Wireless phone charging at front and antenna | 46B |
| Code 899 | Wireless phone charging at front and antenna | 47D |
| Code B24 | Remote control for auxiliary heating | 6C |
| Code B24 | Remote control for auxiliary heating | 6F |
| Code B24 | Remote control for auxiliary heating | 46C |
| Code B24 | Remote control for auxiliary heating | 47F |
| N123/9 | Telephone control unit | 12F |
| N123/9 | Telephone control unit | 43E |
