Wiring Diagram Of Exterior Lights - PE82.10-P-2000-97IBE
Model 177
with code 640 (SAE dynamic LED headlamps, right-hand traffic)
Headlamps E2
Model 177
with code 641 (Dynamic LED headlamps, left-hand traffic)
Headlamps E2
Model 177
with code 642 (Dynamic LED headlamps, right-hand traffic)
Headlamps E2

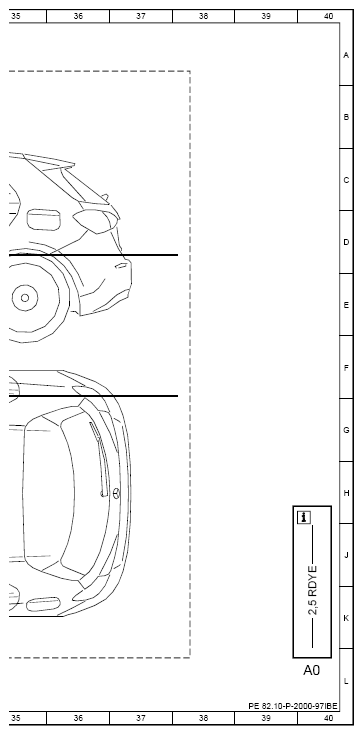

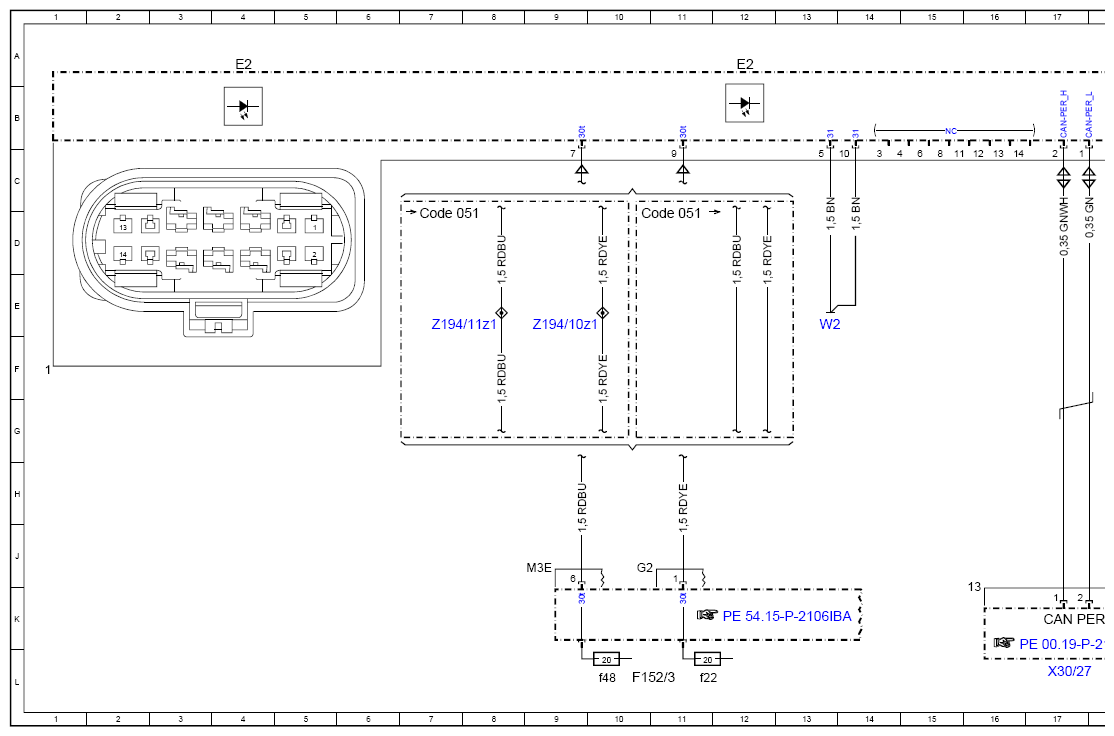

| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 40L |
| CAN PER | Peripherals CAN | 17K |

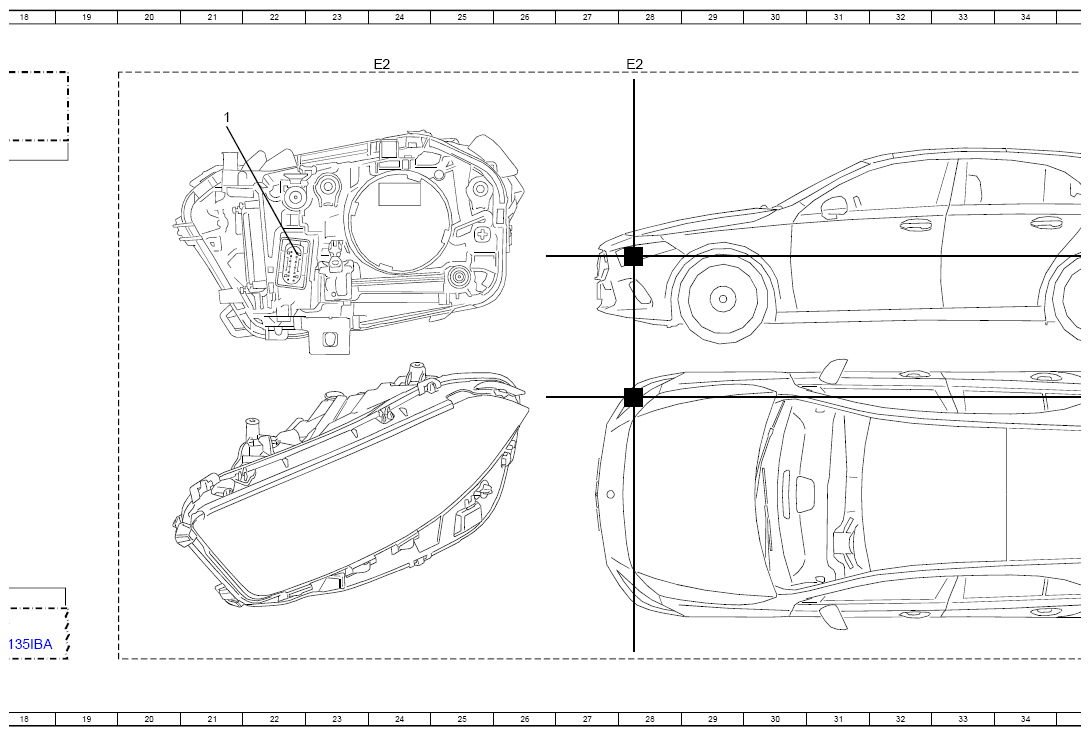

| E2 | Right front lamp unit | 4A |
| E2 | Right front lamp unit | 12A |
| E2 | Right front lamp unit | 24A |
| E2 | Right front lamp unit | 28A |
| F152/3 | Engine compartment fuse and relay module | 10L |
| F152/3f22 | Fuse 22 | 11L |
| F152/3f48 | Fuse 48 | 10L |
| W2 | Right front engine compartment ground point | 13E |
| X30/27 | Peripherals CAN (CAN PER) potential distributor electrical connector | 17L |
| Z194/10z1 | Terminal 30t connector sleeve | 9E |
| Z194/11z1 | Terminal 30t connector sleeve | 8E |
