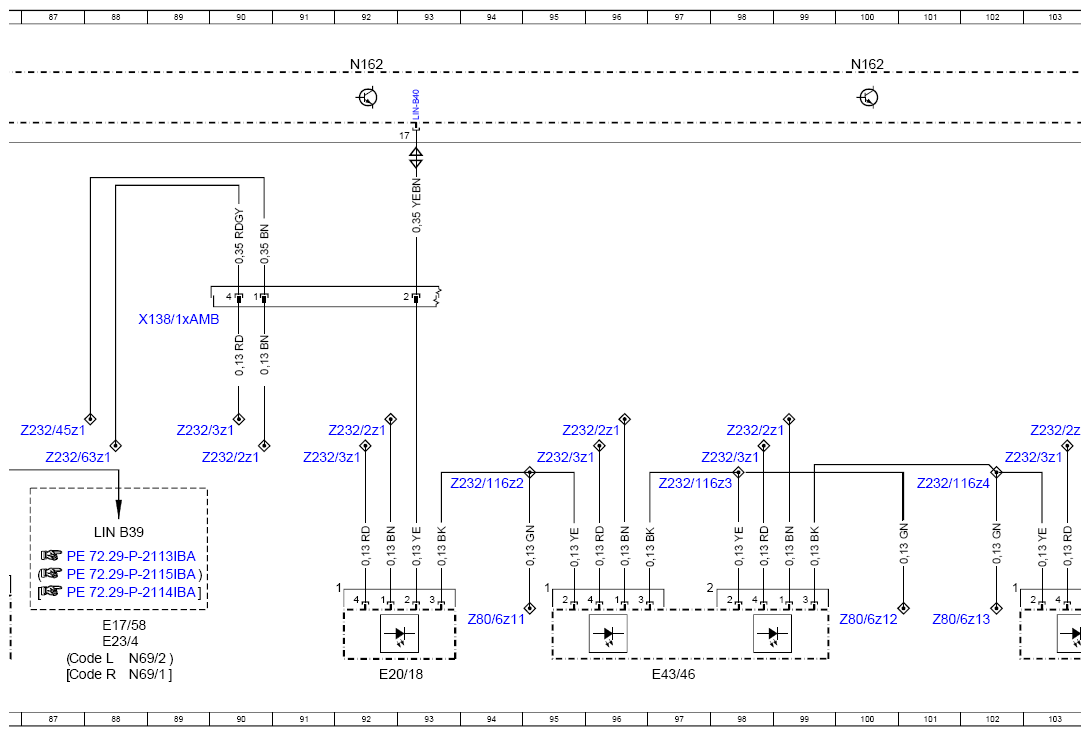

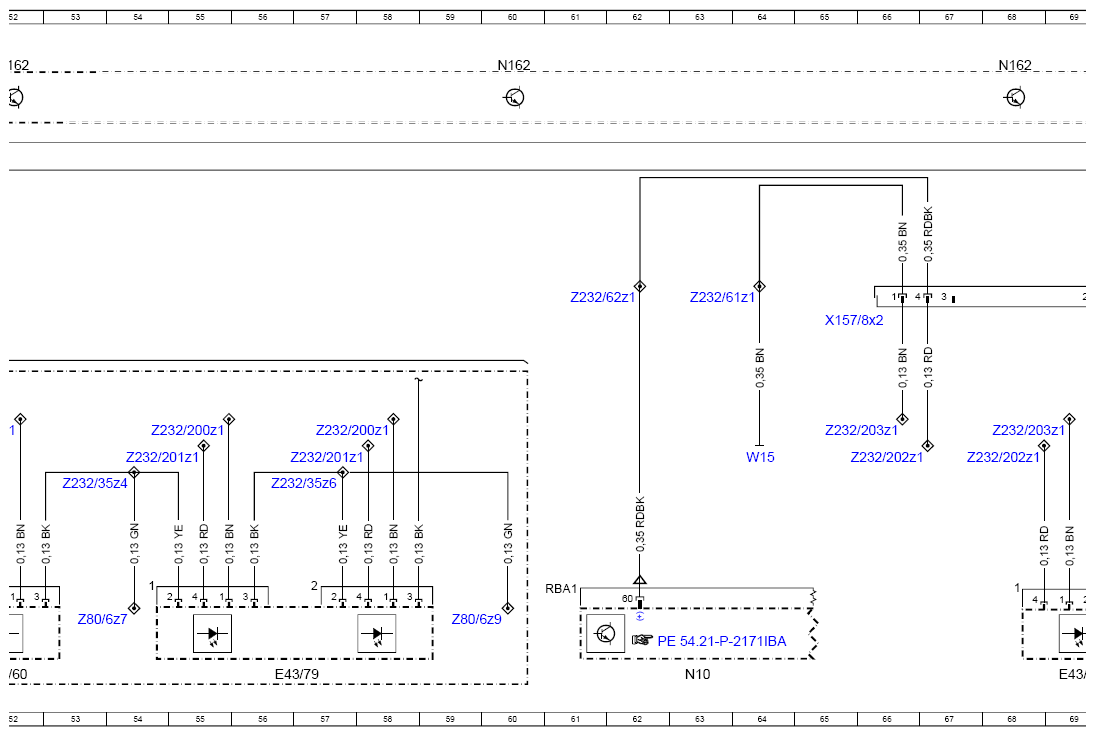

Wiring Diagram Of Ambiance Illumination Control Unit - PE82.20-P-2101-97IBA
Model 177
with code 877 (Ambient lighting)
Control unit N162
| Code: | Designation: | Position: |
|---|---|---|

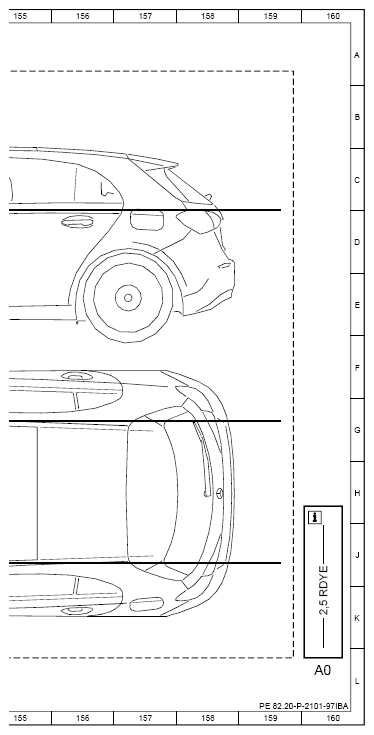

| A0 | Use of wiring diagrams | 160L |
| CAN B | Interior CAN | 11K |
| Code 7U3 | Seat model variant 3 | 110D |
| Code 7U3 | Seat model variant 3 | 122D |
| Code 7U3 | Seat model variant 3 | 125D |
| Code 7U3 | Seat model variant 3 | 138D |
| Code L | LEFT-HAND DRIVE | 82L |
| Code L | LEFT-HAND DRIVE | 6E |
| Code L | LEFT-HAND DRIVE | 87L |
| Code L | LEFT-HAND DRIVE | 148G |
| Code P27 | STYLE PACKAGE | 19F |
| Code P27 | STYLE PACKAGE | 44F |
| Code R | RIGHT-HAND DRIVE | 82L |
| Code R | RIGHT-HAND DRIVE | 6F |
| Code R | RIGHT-HAND DRIVE | 87L |
| Code R | RIGHT-HAND DRIVE | 148J |
| E17/57 | Left rear door handle ambiance illumination | 82K |
| E17/58 | Right rear door handle ambiance illumination | 88K |
| E20/18 | Center console cup holder ambiance illumination | 92L |
| E23/3 | Left rear door stowage compartment illumination | 82K |
| E23/4 | Right rear door stowage compartment illumination | 88K |
| E43/34 | Left rear footwell ambiance illumination | 132L |
| E43/34 | Left rear footwell ambiance illumination | 140L |
| E43/35 | Right rear footwell ambiance illumination | 116L |
| E43/35 | Right rear footwell ambiance illumination | 124L |
| E43/46 | Left center console ambiance illumination | 97L |
| E43/47 | Right center console ambiance illumination | 104L |
| E43/59 | Driver side air vent ambiance illumination | 28L |
| E43/59 | Driver side air vent ambiance illumination | 48L |
| E43/60 | Front passenger side air vent ambiance illumination | 31L |
| E43/60 | Front passenger side air vent ambiance illumination | 52L |
| E43/61 | Left center air vent ambiance illumination | 76L |
| E43/62 | Right center air vent ambiance illumination | 69L |

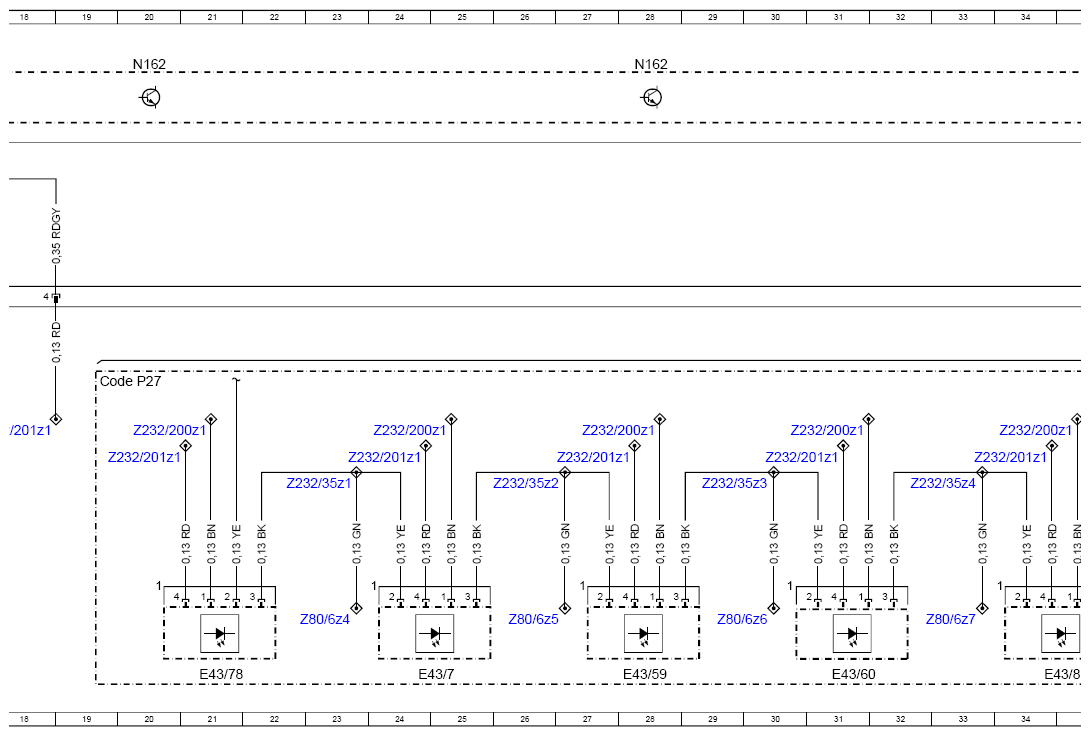

| E43/7 | Upper driver-side instrument panel ambiance illumination | 24L |

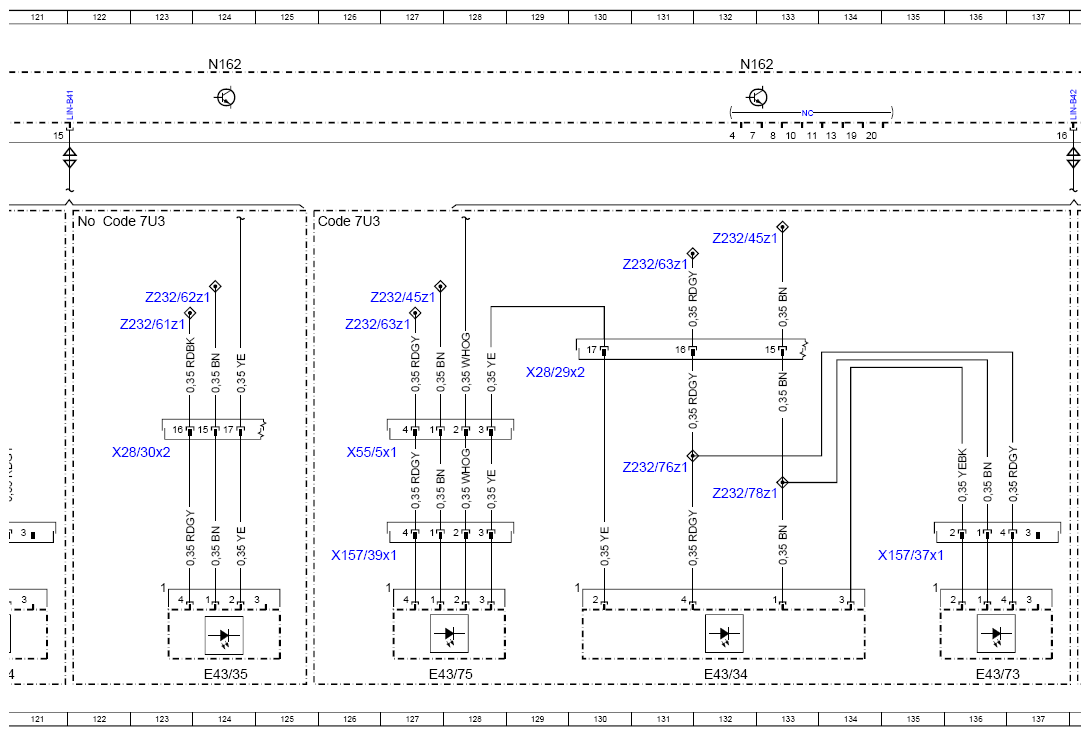

| E43/73 | Driver seat head restraint ambiance illumination | 136L |
| E43/74 | Front passenger seat head restraint ambiance illumination | 120L |
| E43/75 | Left rear seat head restraint ambiance illumination | 127L |

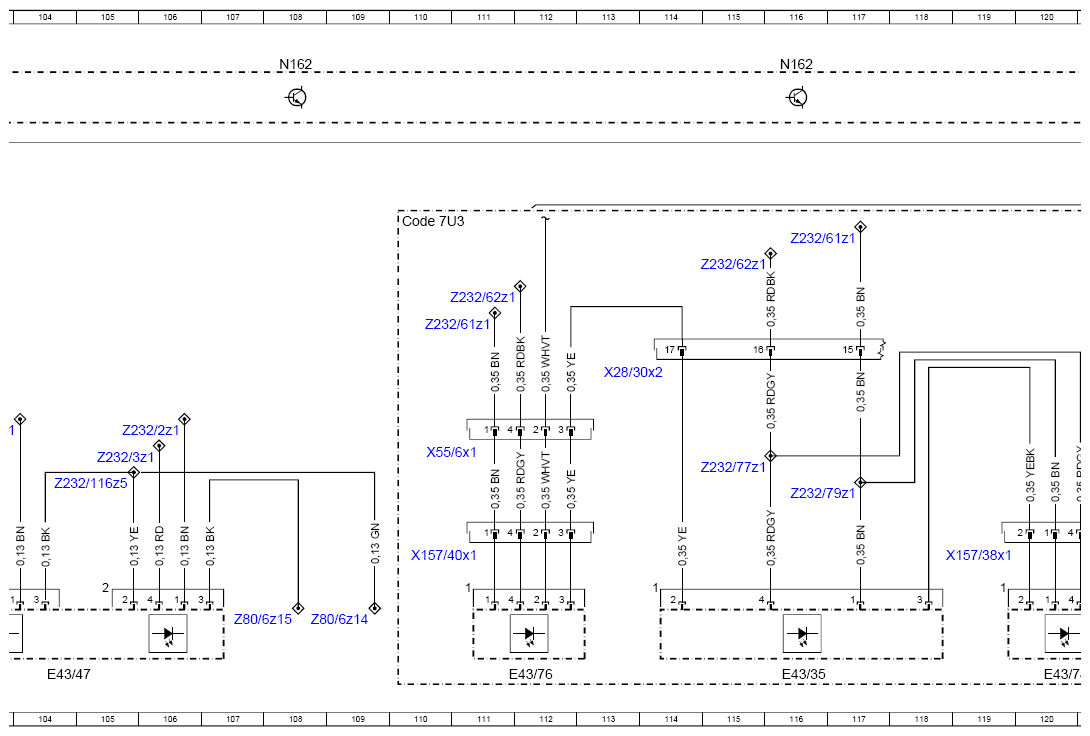

| E43/76 | Right rear seat head restraint ambiance illumination | 112L |
| E43/77 | Center, center air vent ambiance illumination | 72L |
| E43/78 | Lower driver-side instrument panel ambiance illumination | 21L |
| E43/78 | Lower driver-side instrument panel ambiance illumination | 45L |

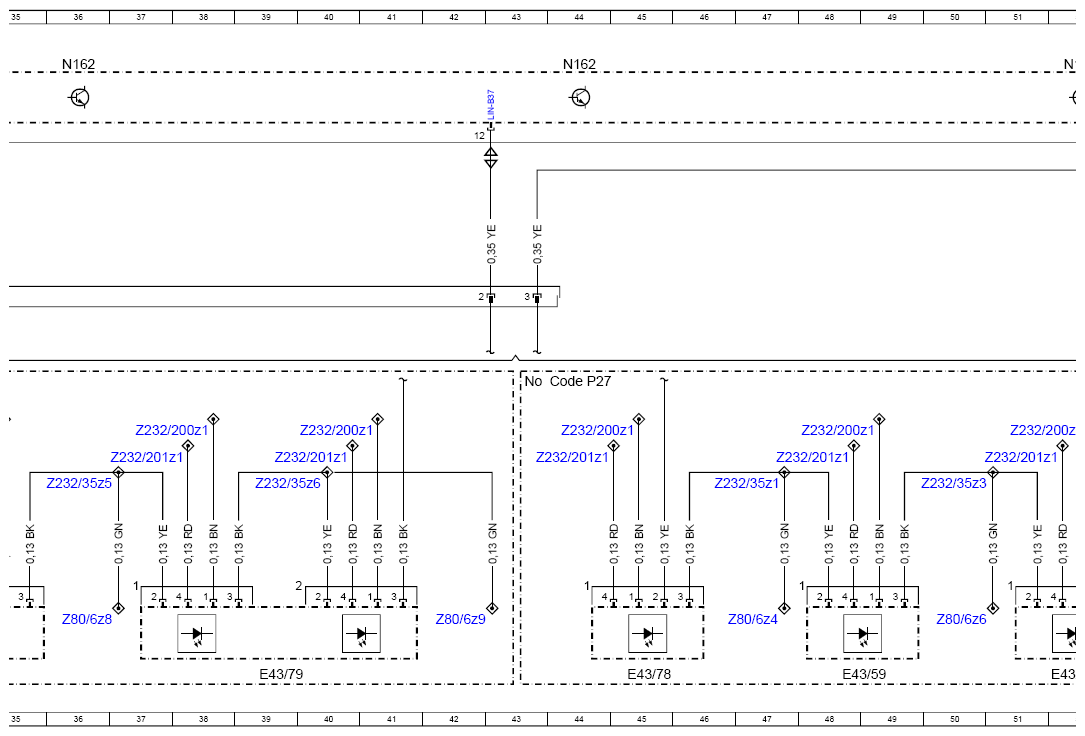

| E43/79 | Lower passenger-side instrument panel ambiance illumination | 56L |
| E43/79 | Lower passenger-side instrument panel ambiance illumination | 39L |
| E43/8 | Upper passenger-side instrument panel ambiance illumination | 34L |

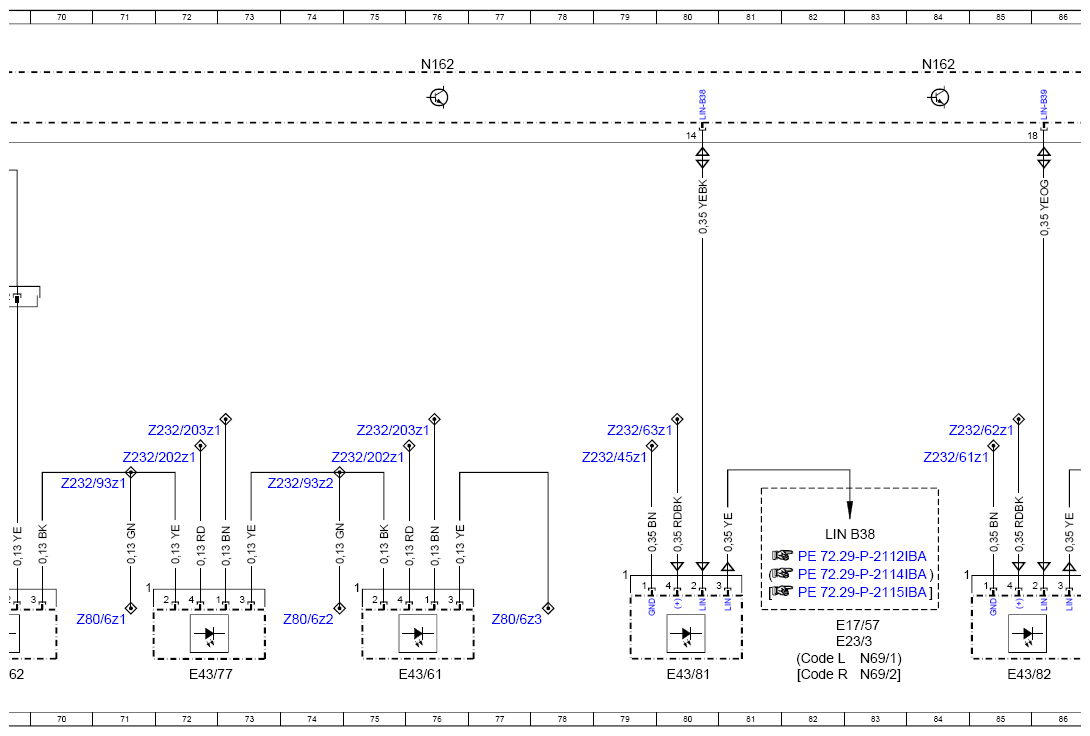

| E43/81 | Left front footwell ambiance illumination | 80L |
| E43/82 | Right front footwell ambiance illumination | 85L |

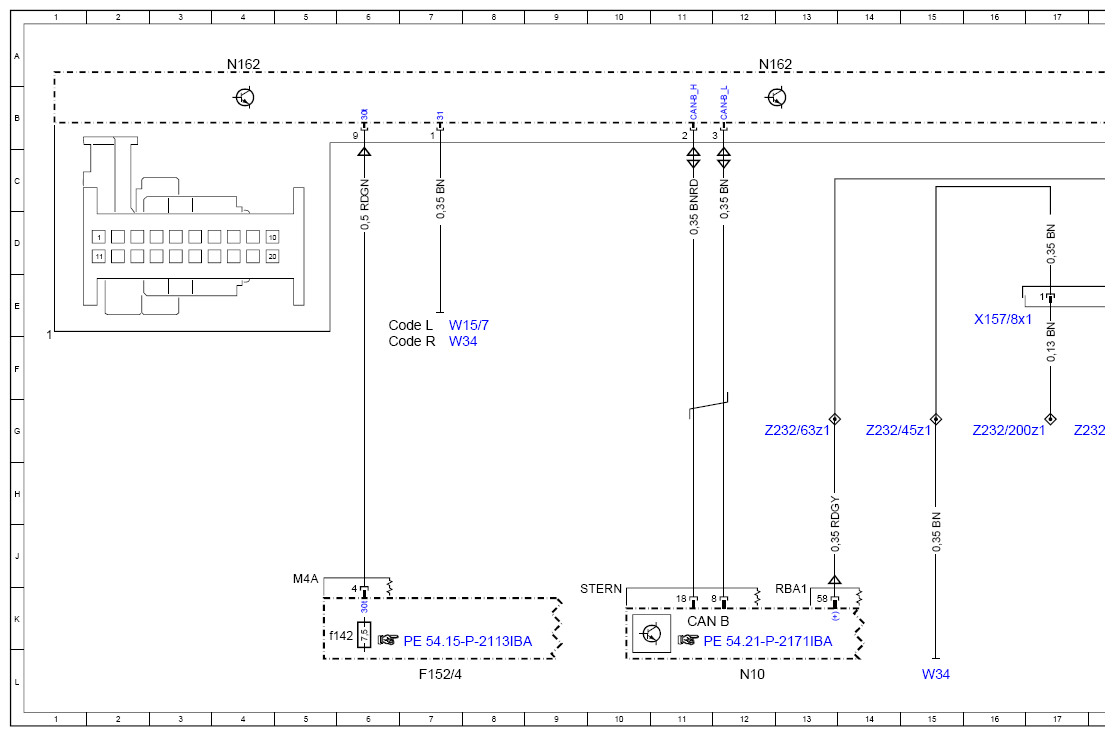

| F152/4 | Vehicle interior fuse and relay module | 7L |
| F152/4f142 | Fuse 142 | 6K |
| LIN B38 | Left vehicle interior ambiance illumination LIN | 82J |
| LIN B39 | Right vehicle interior ambiance illumination LIN | 88J |
| N10 | Central control module | 12L |
| N10 | Central control module | 63L |

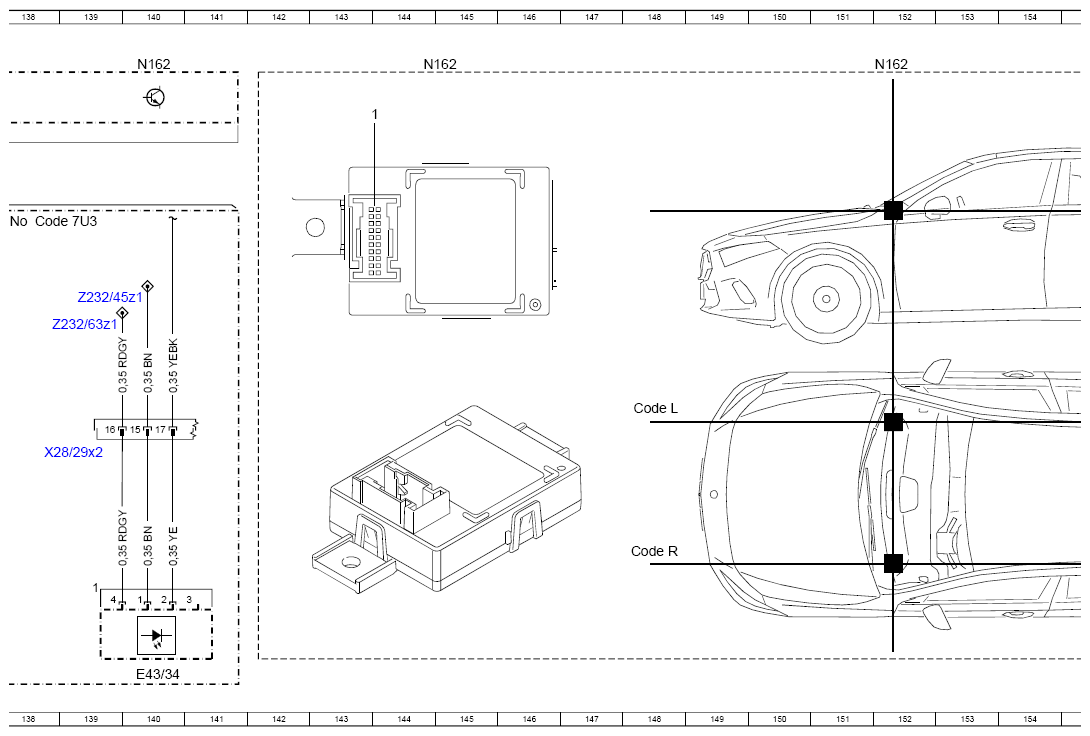

| N162 | Ambiance illumination control unit | 4A |
| N162 | Ambiance illumination control unit | 12A |
| N162 | Ambiance illumination control unit | 20A |
| N162 | Ambiance illumination control unit | 28A |
| N162 | Ambiance illumination control unit | 36A |
| N162 | Ambiance illumination control unit | 44A |
| N162 | Ambiance illumination control unit | 52A |
| N162 | Ambiance illumination control unit | 68A |
| N162 | Ambiance illumination control unit | 60A |
| N162 | Ambiance illumination control unit | 76A |
| N162 | Ambiance illumination control unit | 84A |
| N162 | Ambiance illumination control unit | 92A |
| N162 | Ambiance illumination control unit | 100A |
| N162 | Ambiance illumination control unit | 108A |
| N162 | Ambiance illumination control unit | 116A |
| N162 | Ambiance illumination control unit | 124A |
| N162 | Ambiance illumination control unit | 132A |
| N162 | Ambiance illumination control unit | 140A |
| N162 | Ambiance illumination control unit | 144A |
| N162 | Ambiance illumination control unit | 152A |
| N69/1 | Driver door control unit | 88L |
| N69/1 | Driver door control unit | 83L |
| N69/2 | Front passenger door control unit | 83L |
| N69/2 | Front passenger door control unit | 88L |
| W15 | Right front footwell ground point | 64H |
| W15/7 | Right front footwell ground point | 7E |
| W34 | Left footwell ground point | 15L |
| W34 | Left footwell ground point | 7F |
| X138/1xAMB | Center console electrical connector | 89E |
| X157/37x1 | Driver seat head restraint ambiance illumination electrical connector | 135J |
| X157/38x1 | Front passenger seat head restraint ambiance illumination electrical connector | 119J |
| X157/39x1 | Left rear seat head restraint ambiance illumination electrical connector | 126J |
| X157/40x1 | Right rear seat head restraint ambiance illumination electrical connector | 110J |
| X157/8x1 | Cockpit ambiance illumination electrical connector | 16E |
| X157/8x2 | Cockpit ambiance illumination electrical connector | 65E |
| X28/29x2 | Frame floor assembly/driver seat electrical connector | 139G |
| X28/29x2 | Frame floor assembly/driver seat electrical connector | 129F |
| X28/30x2 | Frame floor assembly/front passenger seat electrical connector | 113F |
| X28/30x2 | Frame floor assembly/front passenger seat electrical connector | 123G |
| X55/5x1 | Left rear seat electrical connector | 126G |
| X55/6x1 | Right rear seat electrical connector | 110G |
| Z232/116z2 | LIN B40 end sleeve | 94H |
| Z232/116z3 | LIN B40 end sleeve | 97H |
| Z232/116z4 | LIN B40 end sleeve | 101H |
| Z232/116z5 | LIN B40 end sleeve | 105H |
| Z232/200z1 | Ground connection connector sleeve | 31G |
| Z232/200z1 | Ground connection connector sleeve | 16G |
| Z232/200z1 | Ground connection connector sleeve | 28G |
| Z232/200z1 | Ground connection connector sleeve | 24G |
| Z232/200z1 | Ground connection connector sleeve | 20G |
| Z232/200z1 | Ground connection connector sleeve | 44G |
| Z232/200z1 | Ground connection connector sleeve | 40G |
| Z232/200z1 | Ground connection connector sleeve | 38G |
| Z232/200z1 | Ground connection connector sleeve | 34G |
| Z232/200z1 | Ground connection connector sleeve | 55G |
| Z232/200z1 | Ground connection connector sleeve | 51G |
| Z232/200z1 | Ground connection connector sleeve | 48G |
| Z232/200z1 | Ground connection connector sleeve | 57G |
| Z232/201z1 | Voltage supply connector sleeve | 18G |
| Z232/201z1 | Voltage supply connector sleeve | 24G |
| Z232/201z1 | Voltage supply connector sleeve | 20G |
| Z232/201z1 | Voltage supply connector sleeve | 30G |
| Z232/201z1 | Voltage supply connector sleeve | 27G |
| Z232/201z1 | Voltage supply connector sleeve | 57G |
| Z232/201z1 | Voltage supply connector sleeve | 44G |
| Z232/201z1 | Voltage supply connector sleeve | 37G |
| Z232/201z1 | Voltage supply connector sleeve | 34G |
| Z232/201z1 | Voltage supply connector sleeve | 40G |
| Z232/201z1 | Voltage supply connector sleeve | 48G |
| Z232/201z1 | Voltage supply connector sleeve | 54G |
| Z232/201z1 | Voltage supply connector sleeve | 51G |
| Z232/202z1 | Voltage supply connector sleeve | 66G |
| Z232/202z1 | Voltage supply connector sleeve | 68G |
| Z232/202z1 | Voltage supply connector sleeve | 75G |
| Z232/202z1 | Voltage supply connector sleeve | 72G |
| Z232/203z1 | Ground connection connector sleeve | 66G |
| Z232/203z1 | Ground connection connector sleeve | 68G |
| Z232/203z1 | Ground connection connector sleeve | 75G |
| Z232/203z1 | Ground connection connector sleeve | 72G |
| Z232/2z1 | Ground connection connector sleeve | 92G |
| Z232/2z1 | Ground connection connector sleeve | 90G |
| Z232/2z1 | Ground connection connector sleeve | 106G |
| Z232/2z1 | Ground connection connector sleeve | 103G |
| Z232/2z1 | Ground connection connector sleeve | 98G |
| Z232/2z1 | Ground connection connector sleeve | 96G |
| Z232/35z1 | LIN B37 end sleeve | 23H |
| Z232/35z1 | LIN B37 end sleeve | 47H |
| Z232/35z2 | LIN B37 end sleeve | 26H |
| Z232/35z3 | LIN B37 end sleeve | 29H |
| Z232/35z3 | LIN B37 end sleeve | 50H |
| Z232/35z4 | LIN B37 end sleeve | 33H |
| Z232/35z4 | LIN B37 end sleeve | 53H |
| Z232/35z5 | LIN B37 end sleeve | 36H |
| Z232/35z6 | LIN B37 end sleeve | 57H |
| Z232/35z6 | LIN B37 end sleeve | 39H |
| Z232/3z1 | Voltage supply connector sleeve | 95G |
| Z232/3z1 | Voltage supply connector sleeve | 89G |
| Z232/3z1 | Voltage supply connector sleeve | 91G |
| Z232/3z1 | Voltage supply connector sleeve | 98G |
| Z232/3z1 | Voltage supply connector sleeve | 105G |
| Z232/3z1 | Voltage supply connector sleeve | 103G |
| Z232/45z1 | Ground connection connector sleeve | 14G |
| Z232/45z1 | Ground connection connector sleeve | 79G |
| Z232/45z1 | Ground connection connector sleeve | 87G |
| Z232/45z1 | Ground connection connector sleeve | 127E |
| Z232/45z1 | Ground connection connector sleeve | 132D |
| Z232/45z1 | Ground connection connector sleeve | 139E |
| Z232/61z1 | Ground connection connector sleeve | 63E |
| Z232/61z1 | Ground connection connector sleeve | 84G |
| Z232/61z1 | Ground connection connector sleeve | 111E |
| Z232/61z1 | Ground connection connector sleeve | 123E |
| Z232/61z1 | Ground connection connector sleeve | 116D |
| Z232/62z1 | Voltage supply connector sleeve | 61E |
| Z232/62z1 | Voltage supply connector sleeve | 85G |
| Z232/62z1 | Voltage supply connector sleeve | 111E |
| Z232/62z1 | Voltage supply connector sleeve | 115D |
| Z232/62z1 | Voltage supply connector sleeve | 123E |
| Z232/63z1 | Voltage supply connector sleeve | 13G |
| Z232/63z1 | Voltage supply connector sleeve | 79G |
| Z232/63z1 | Voltage supply connector sleeve | 87G |
| Z232/63z1 | Voltage supply connector sleeve | 126E |
| Z232/63z1 | Voltage supply connector sleeve | 131D |
| Z232/63z1 | Voltage supply connector sleeve | 139E |
| Z232/76z1 | Voltage supply connector sleeve | 131H |
| Z232/77z1 | Voltage supply connector sleeve | 115H |
| Z232/78z1 | Ground connection connector sleeve | 132H |
| Z232/79z1 | Ground connection connector sleeve | 116H |
| Z232/93z1 | LIN B37 end sleeve | 71H |
| Z232/93z2 | LIN B37 end sleeve | 74H |
| Z80/6z1 | LIN B37 end sleeve | 71K |
| Z80/6z11 | LIN B40 end sleeve | 94K |
| Z80/6z12 | LIN B40 end sleeve | 100K |
| Z80/6z13 | LIN B40 end sleeve | 102K |
| Z80/6z14 | LIN B40 end sleeve | 109K |
| Z80/6z15 | LIN B40 end sleeve | 107K |
| Z80/6z2 | LIN B37 end sleeve | 74K |
| Z80/6z3 | LIN B37 end sleeve | 77K |
| Z80/6z4 | LIN B37 end sleeve | 23K |
| Z80/6z4 | LIN B37 end sleeve | 47K |
| Z80/6z5 | LIN B37 end sleeve | 26K |
| Z80/6z6 | LIN B37 end sleeve | 29K |
| Z80/6z6 | LIN B37 end sleeve | 50K |
| Z80/6z7 | LIN B37 end sleeve | 33K |
| Z80/6z7 | LIN B37 end sleeve | 53K |
| Z80/6z8 | LIN B37 end sleeve | 36K |
| Z80/6z9 | LIN B37 end sleeve | 42K |
| Z80/6z9 | LIN B37 end sleeve | 59K |
