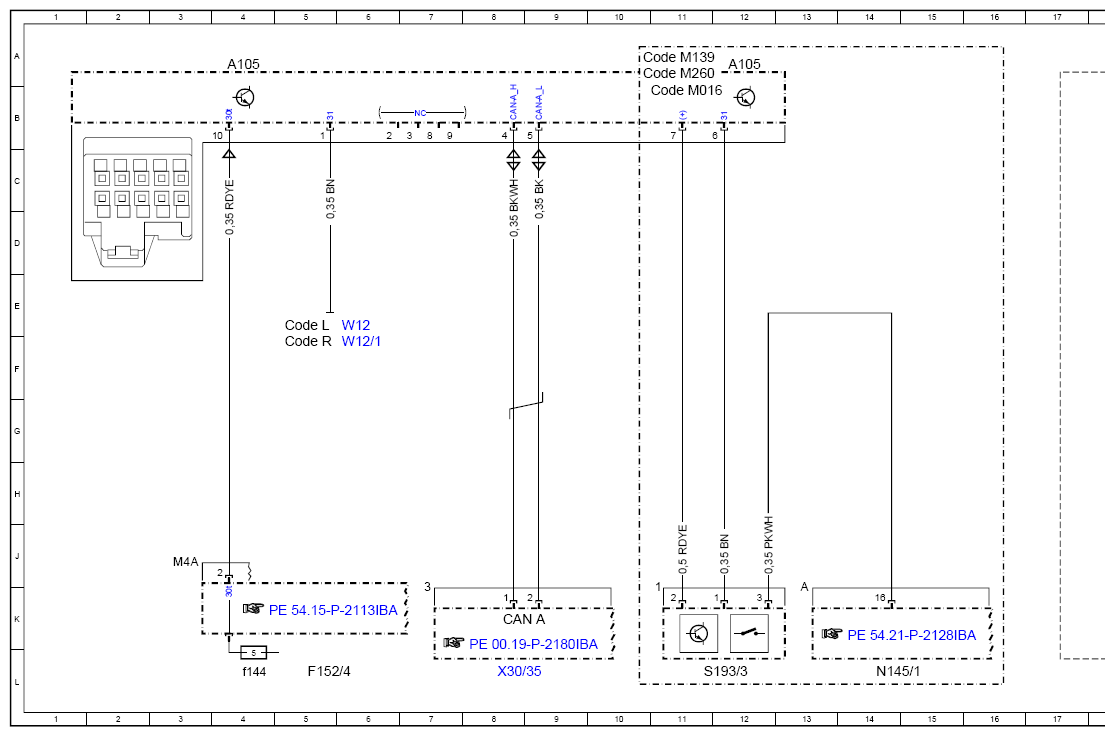

Wiring Diagram For Touchpad - PE82.00-P-2061-97IBA
Model 177
with code 446 (Touchpad only)

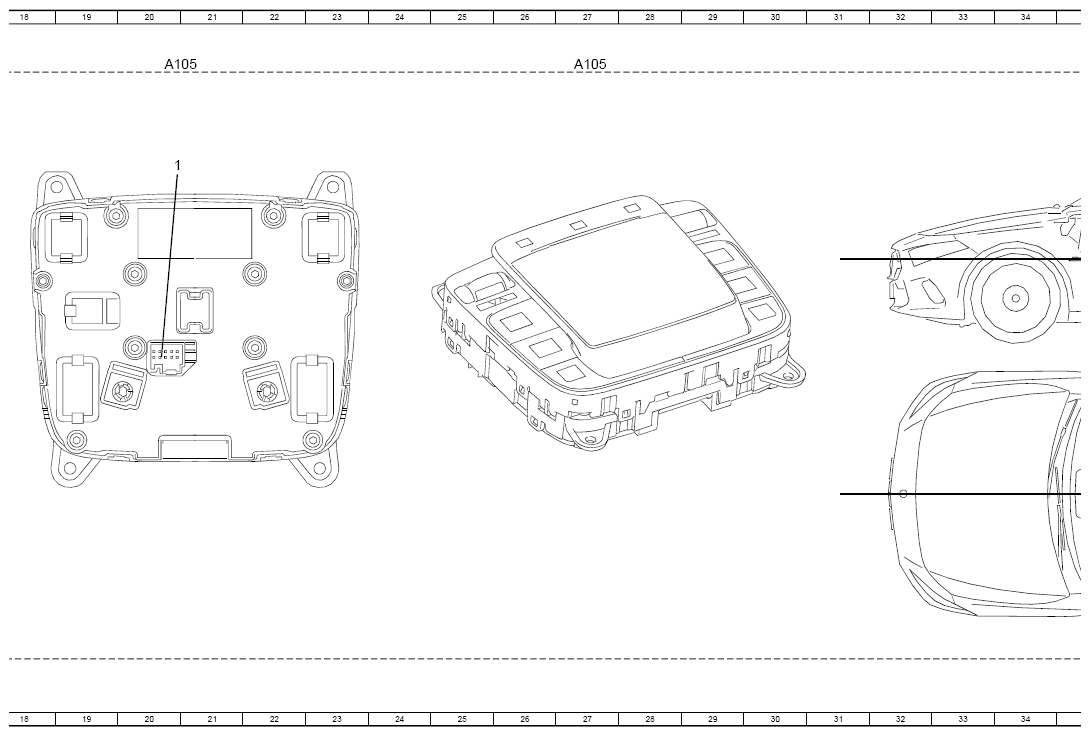

Touchpad A105
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 48L |
| A105 | Touchpad/lower control panel | 4A |
| A105 | Touchpad/lower control panel | 12A |
| A105 | Touchpad/lower control panel | 20A |
| A105 | Touchpad/lower control panel | 27A |

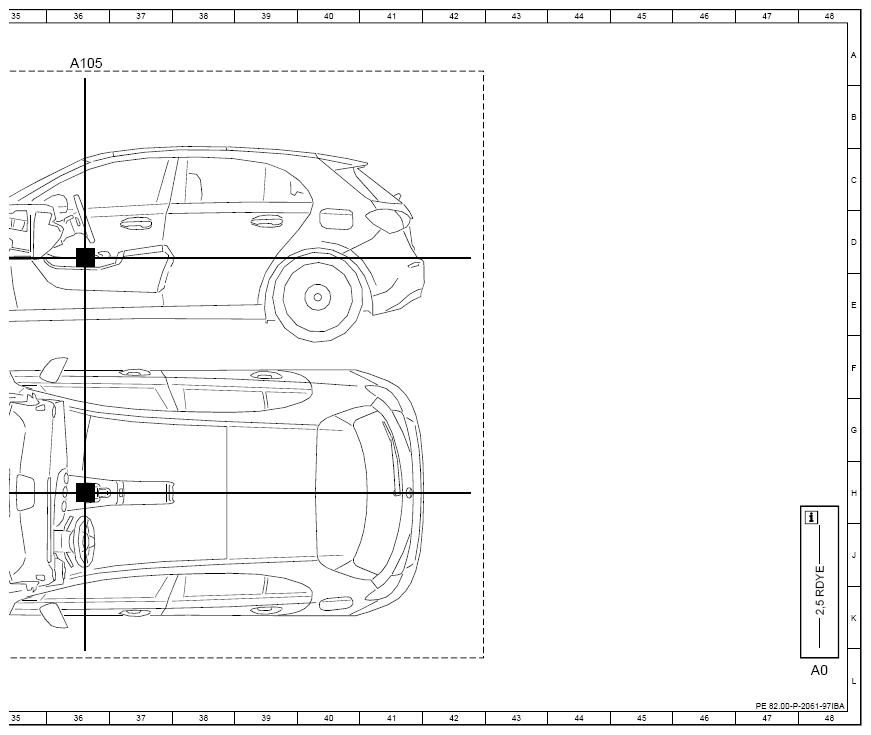

| A105 | Touchpad/lower control panel | 36A |
| CAN A | Telematics CAN | 8K |
| Code L | LEFT-HAND DRIVE | 5E |
| Code M016 | Uprated high-performance engine | 11B |
| Code M139 | Inline 4-cylinder SPARK-IGNITION ENGINE M139 - AMG | 10A |
| Code M260 | 4-CYLINDER INLINE SPARK-IGNITION ENGINE M260 | 10A |
| Code R | RIGHT-HAND DRIVE | 5F |
| F152/4 | Vehicle interior fuse and relay module | 5L |
| F152/4f144 | Fuse 144 | 4L |
| N145/1 | Drive unit control unit | 14L |
| S193/3 | AMG button | 12L |
| W12 | Left center console ground point | 6E |
| W12/1 | Right center console ground point | 6F |
| X30/35 | Telematics CAN potential distributor (CAN A) | 8L |
