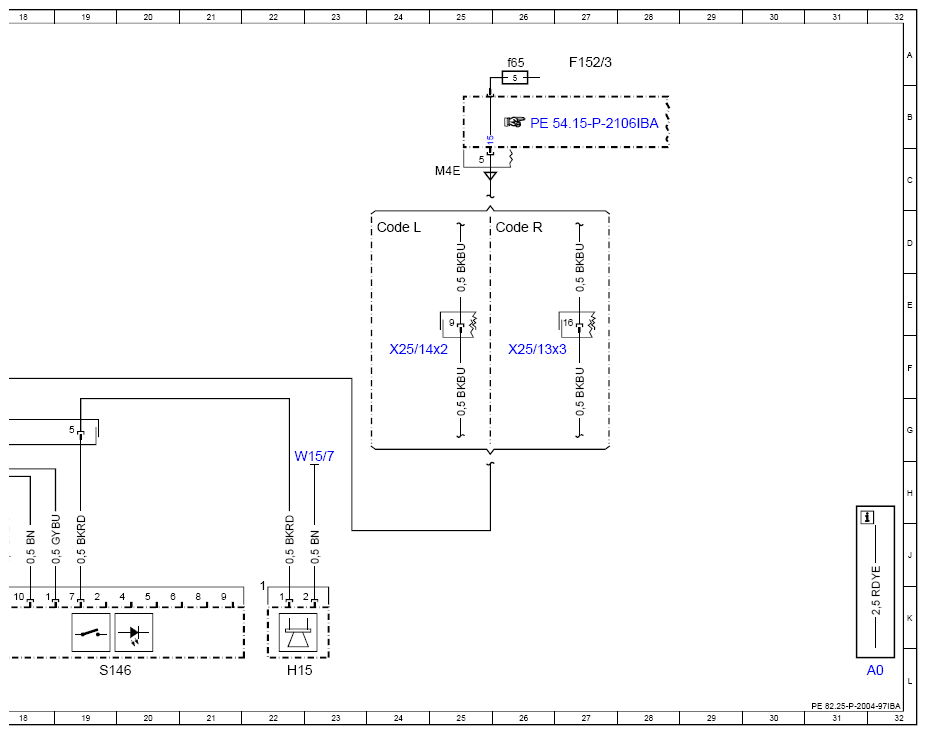

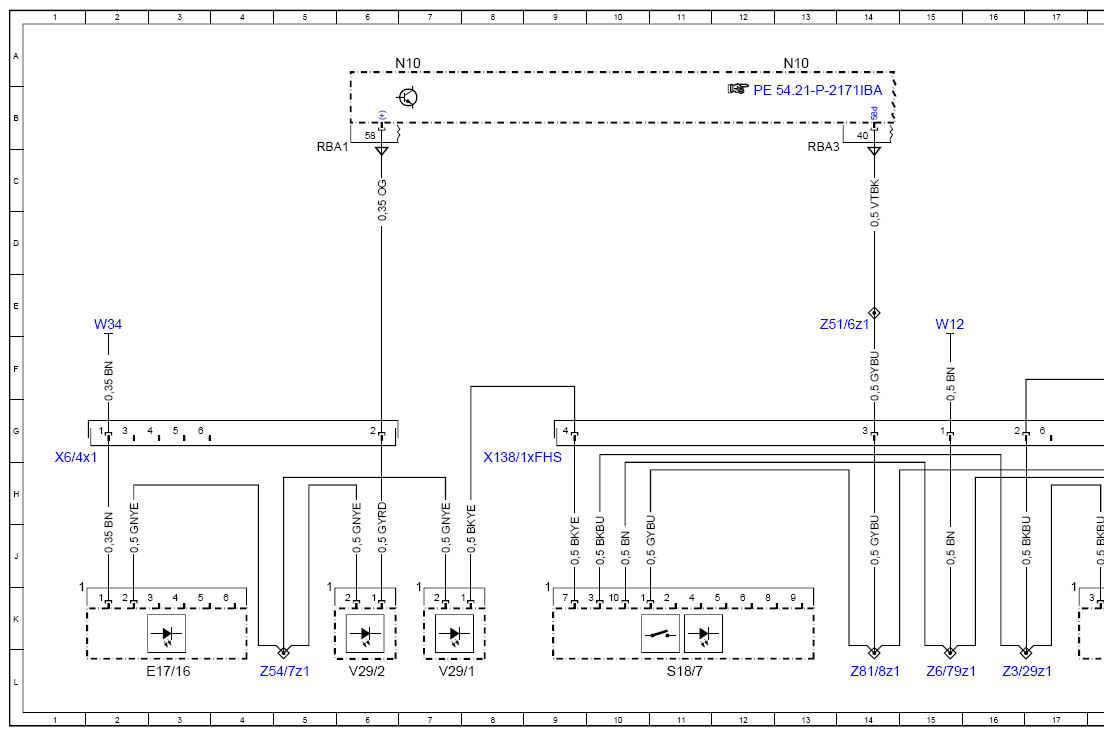

Wiring Diagram For Driving School Vehicle - PE82.25-P-2004-97IBA
Model 177
with code U63 (Driving school package)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 32L |
| Code L | LEFT-HAND DRIVE | 24D |
| Code R | RIGHT-HAND DRIVE | 26D |
| E17/16 | Left front footwell lamp | 3L |
| F152/3 | Engine compartment fuse and relay module | 27A |
| F152/3f65 | Fuse 65 | 26A |
| H15 | Pedal operation monitor buzzer | 22L |
| N10 | Central control module | 7A |
| N10 | Central control module | 13A |
| S146 | Pedal operation monitor switch | 19L |
| S18/7 | Footwell illumination switch | 11L |
| V29/1 | Footwell illumination diode 1 | 7L |
| V29/2 | Footwell illumination diode 2 | 6L |
| W12 | Left center console ground point | 15E |
| W15/7 | Right front footwell ground point | 23H |
| W34 | Left footwell ground point | 2E |
| X138/1xFHS | Center console electrical connector | 9H |
| X25/13x3 | Left engine compartment/vehicle interior electrical connector | 26F |
| X25/14x2 | Right engine compartment/vehicle interior electrical connector | 24F |
| X6/4x1 | Driving school package electrical connector | 1H |
| Z3/29z1 | Voltage supply connector sleeve | 16L |
| Z51/6z1 | Circuit 58d connector sleeve | 14E |
| Z54/7z1 | Voltage supply connector sleeve | 4L |
| Z6/79z1 | Ground connection connector sleeve | 15L |
| Z81/8z1 | Circuit 58d connector sleeve | 14L |
