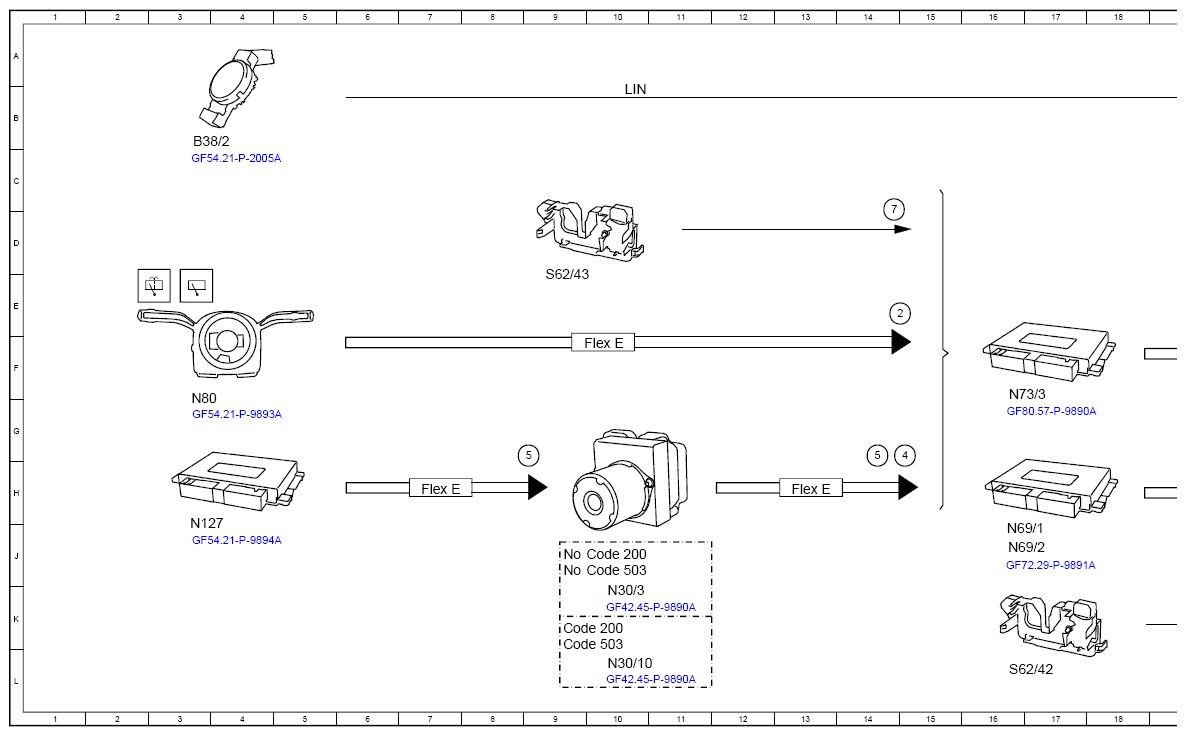

(Function Schematic, Wipe And Wash Windshield - PE82.30-P-2500-97C)
Model 192, 206, 214, 223, 232, 236, 254, 294, 295, 296, 297
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Wipe, request | 22A |
| 10 | Wipe request, signal | 28K |
| 2 | Combination switch, status | 14E |
| 2 | Combination switch, status | 22E |
| 3 | Circuit 15, status | 21E |
| 4 | Vehicle speed, signal | 21E |
| 4 | Vehicle speed, signal | 15G |
| 5 | Transmission position, signal | 9H |
| 5 | Transmission position, signal | 14H |
| 5 | Transmission position, signal | 20E |
| 6 | Door rotary tumbler switch, status | 22H |
| 7 | Engine hood contact switch, status | 22K |
| 7 | Engine hood contact switch, status | 14C |
| 7 | Engine hood contact switch, status | 20E |
| 8 | Wipe sensitivity, signal | 28A |
| 9 | Windshield washer system pump, actuation | 28D |
| 9 | Windshield washer system pump, actuation | 28G |
| B38/2 | Rain/light sensor with additional functions | 3B |
| B38/2 | Rain/light sensor with additional functions | 29C |
| CAN B1 | CAN 1 for vehicle interior | 20F |
| CAN B1 | CAN 1 for vehicle interior | 20H |
| Code 200 | Conditionally automated driving | 9K |
| Code 200 | Conditionally automated driving | 10J |
| Code 503 | Remote-controlled parking | 10J |
| Code 503 | Remote-controlled parking | 9K |
| Code 874 | MAGIC VISION CONTROL, heated | 29F |
| Flex E | Chassis FlexRay | 13H |
| Flex E | Chassis FlexRay | 10F |
| Flex E | Chassis FlexRay | 7H |
| LIN | Local Interconnect Network | 10B |
| LIN | Local Interconnect Network | 27K |
| LIN | Local Interconnect Network | 27B |
| LIN | Local Interconnect Network | 20B |
| M5/1 | Windshield washer system pump | 29F |
| M5/9 | Windshield washer system pump | 29H |
| M6/1 | Wiper motor | 29L |
| N10/6 | Front signal acquisition and actuation module control unit | 24G |
| N127 | Drivetrain control unit | 3J |
| N30/10 | Electronic Stability Program control unit | 10L |
| N30/3 | Electronic Stability Program control unit | 10K |
| N69/1 | Left front door control unit | 16J |
| N69/2 | Right front door control unit | 16J |
| N73/3 | Electronic ignition switch control unit | 16F |
| N80 | Steering column module control unit | 3G |
| S62/42 | Hood contact switch | 16L |
| S62/43 | Hood contact switch | 9E |
