Remove/Install Wi-Fi Antenna Left Of Instrument Panel - AR82.85-P-0012MFA
Model 118, 177
Shown on model 177.0
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1.1 | Remove HERMES control unit (N112/9). | Model 118, 177 with code 362 (HERMES LTE) |
|
| AR82.95-P-0019MFA | |||
| 1.2 | Remove light switch module. | Model 118, 177 except code 362 (HERMES LTE) |
|
| AR54.25-P-3270MFA | |||

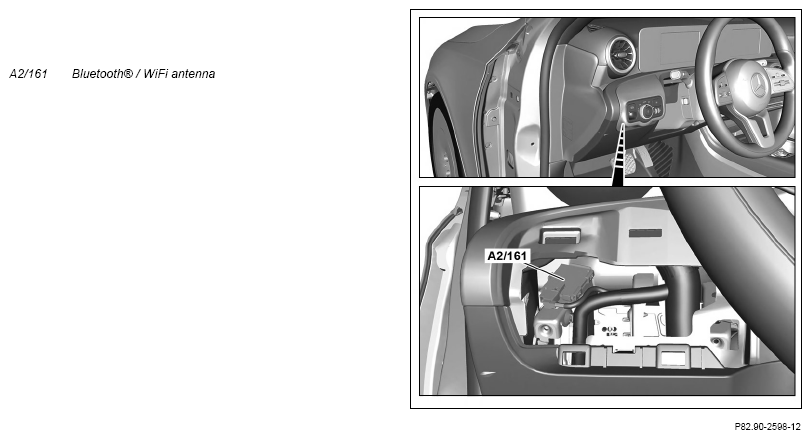

| 2 | Unclip Bluetooth®/Wi-Fi antenna (A2/161) carefully from holder. | Do not crush or kink or subject lines to tension This will result in damage to the lines which may impair their functional capability. |
|
| i33 | Fig 1 | ||
| 3 | Release and disconnect electrical connector from Bluetooth®/Wi-Fi antenna (A2/ 161). | ||
| 4 | Install in the reverse order. |
