Remove/Install Wi-Fi Antenna In Center Of Instrument Panel - AR82.85-P-0013MFA
Model 118, 177
with code 549 (Connect 20 HIGH (NTG6))
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove instrument panel. | AR68.10-P-1000MFA | |

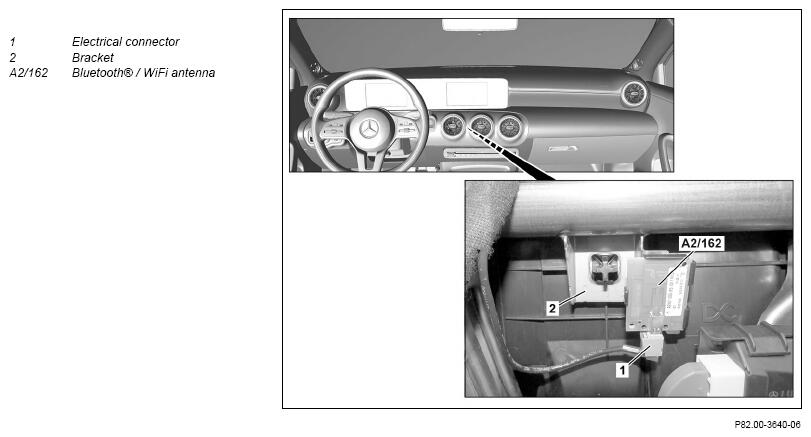

| 2 | Release electrical connector(1) and disconnect. | ||
| 3 | Unclip Bluetooth®/Wi-Fi antenna (A2/ 162) from bracket (2) and remove. | ||
| 4 | Install in the reverse order. |
