Prepare Spare Tire Well - Ar64.20-P-1245-02MFV

Model 177.1/9

The superordinate service document as well as the safety information in the service document must be observed.

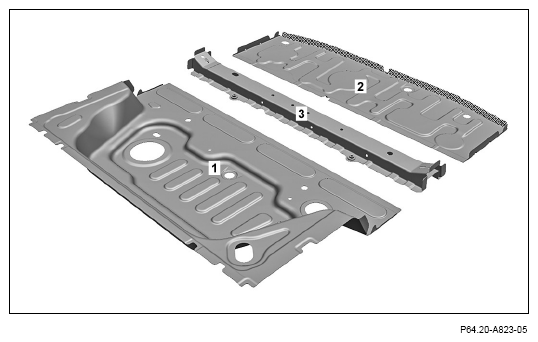

During installation, the spare wheel well (1) is connected to the separate parts of the rear-end floor (2) and the crossmember (3).

1. Grind rear-end floor (2) down to bare metal in cross-hatched areas.

   Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

   Sand down spot weld flanges to bare metal on both sides.

2. Remove grinding dust.

Shown on model 177.1
