Install Spare Tire Well - Ar64.20-P-1245-03MFV

Model 177.1/9

The superordinate service document as well as the safety information in the service document must be observed.

Courtesy of MERCEDES-BENZ USA

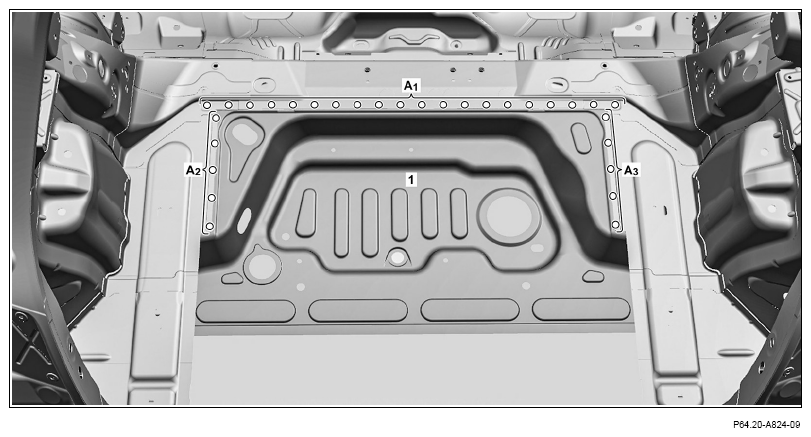

1. Install and fit spare wheel well (1).
2. Fix spare wheel well (1) in place.
3. Drill rivet holes with 6.7 mm diameter in spare wheel well (1) (areas A₁ , A₂ , A ₃ ).

   Drill rivet holes through existing holes in body.

4. Countersink rivet holes.

   Courtesy of MERCEDES-BENZ USA

   Shown on left side of vehicle

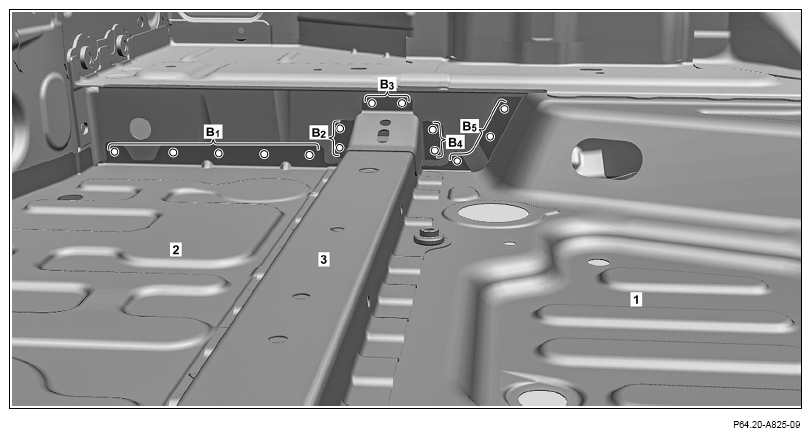

5. Install and fit rear-end floor (2) and crossmember (3).
6. Fix rear-end floor (2) and crossmember (3) in place.
7. Drill rivet holes with 6.7 mm diameter in spare wheel well (1), rear-end floor (2) and crossmember (3) on both sides of the vehicle (areas B₁ , B₂ , B ₃ , B₄ , B₅ ).
8. Countersink rivet holes.
9. Remove spare wheel well (1), rear-end floor (2) and crossmember (3).
10. Deburr rivet holes in spare wheel well (1), rear-end floor (2) and crossmember (3) on both sides of the body.
11. Remove drilling chips.
12. Coat insides of riveted joints with zinc dust paint.

    Courtesy of MERCEDES-BENZ USA

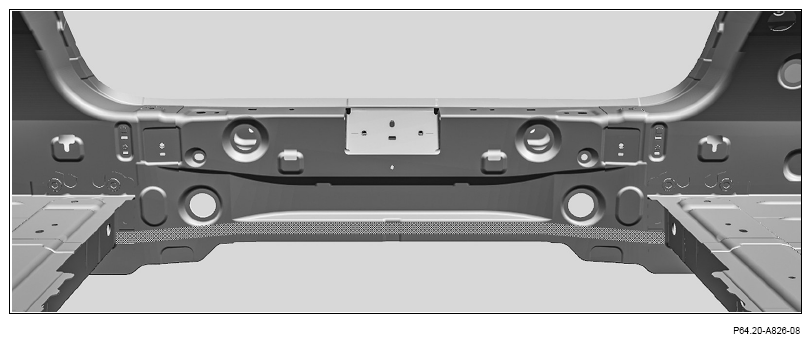

13. Apply 2-component adhesive in the cross-hatched area on the body.

    The 2-component adhesive is partly stripped off in this area when the rear-end floor (2) is installed, making it necessary to apply additional adhesive for compensation. Also apply 2-component adhesive to new part.

    Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

    Courtesy of MERCEDES-BENZ USA

14. Install and fix spare wheel well (1) in place.
15. Rivet spare wheel well (1) with rivets with 6.4x17 mm diameter (areas C₁ , C₂ , C ₃ ).

    Courtesy of MERCEDES-BENZ USA

    Shown on left side of vehicle

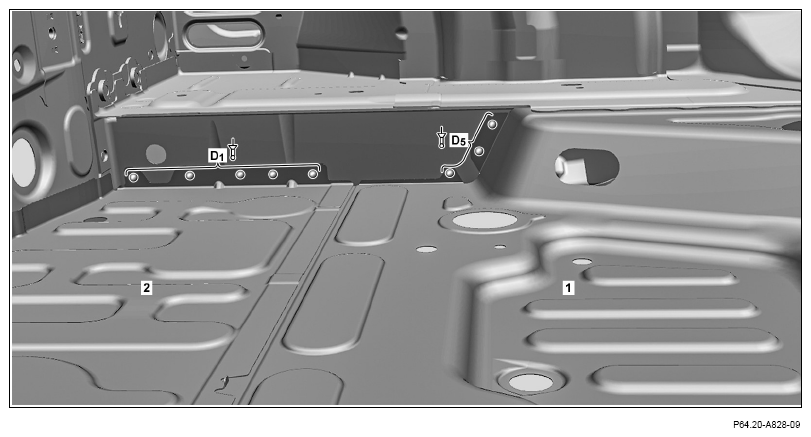

16. Install and fit rear-end floor (2).
17. Fix rear-end floor (2) in place.
18. Rivet spare wheel well (1) and rear-end floor (2) on both sides of the vehicle with rivets with 6.4x17 mm diameter (areas D₁ , D₅ ).

    Courtesy of MERCEDES-BENZ USA

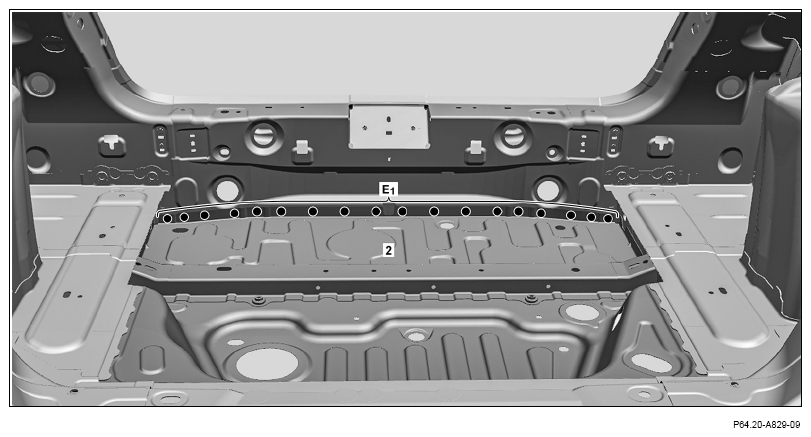

19. Rear-end floor (2) (areas E₁ ).

    Courtesy of MERCEDES-BENZ USA

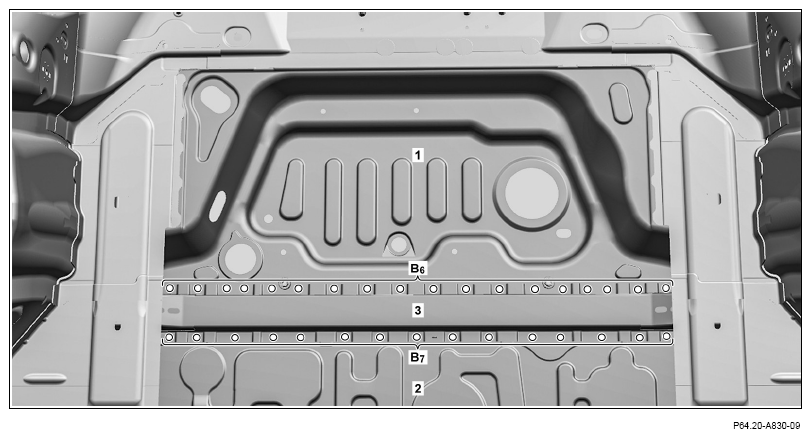

20. Install and fit crossmember (3).
21. Fix crossmember (3) in place.
22. Drill rivet holes with 6.7 mm diameter in crossmember (3), spare wheel well (1) and rear-end floor (2) (areas B₆ , B₇ ).
23. Countersink rivet holes.
24. Remove crossmember (3).
25. Deburr rivet holes in crossmember (3), spare wheel well (1) and rear-end floor (2) on both sides.
26. Remove drilling chips.
27. Coat insides of riveted joints with zinc dust paint.

    Courtesy of MERCEDES-BENZ USA

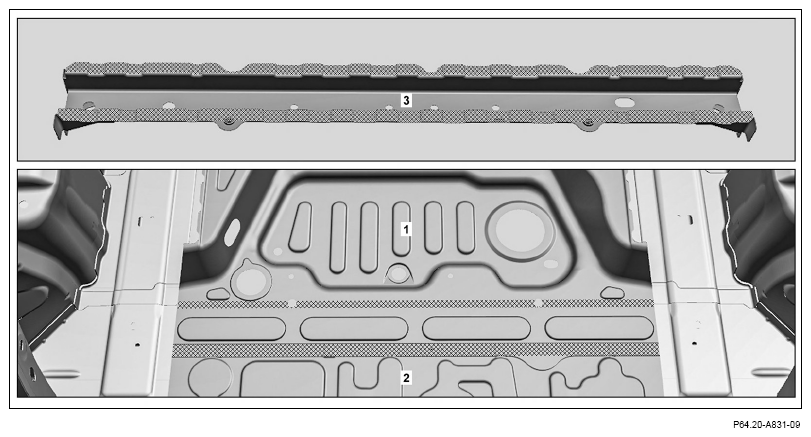

28. Apply 2-component adhesive in the cross-hatched area on the body.

    The 2-component adhesive is partly stripped off in this area when the crossmember (3) with spare wheel well (1) and the rear-end floor (2) are installed, making it necessary to apply additional adhesive for compensation.

    Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.

    Courtesy of MERCEDES-BENZ USA

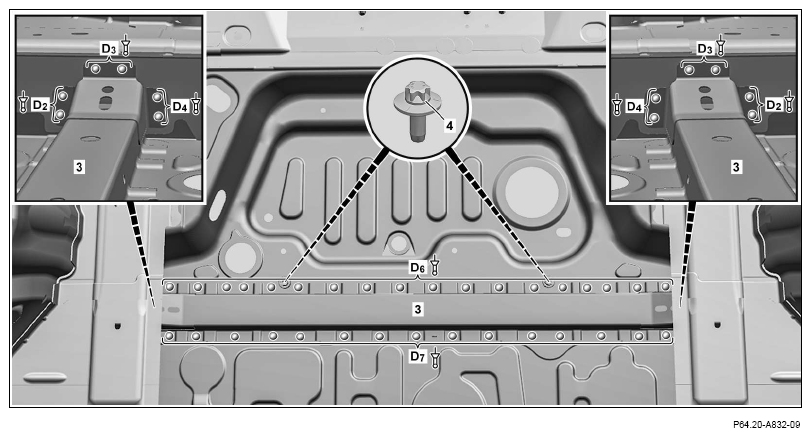

29. Install crossmember (3) and fix in place.
30. Lightly tighten bolts (4) by hand.
31. Rivet crossmember (3) with rivets with 6.4x17 mm diameter (areas D₂ , D₃ , D ₄ , D₆ , D₇ ).
32. Tighten screws(4).
