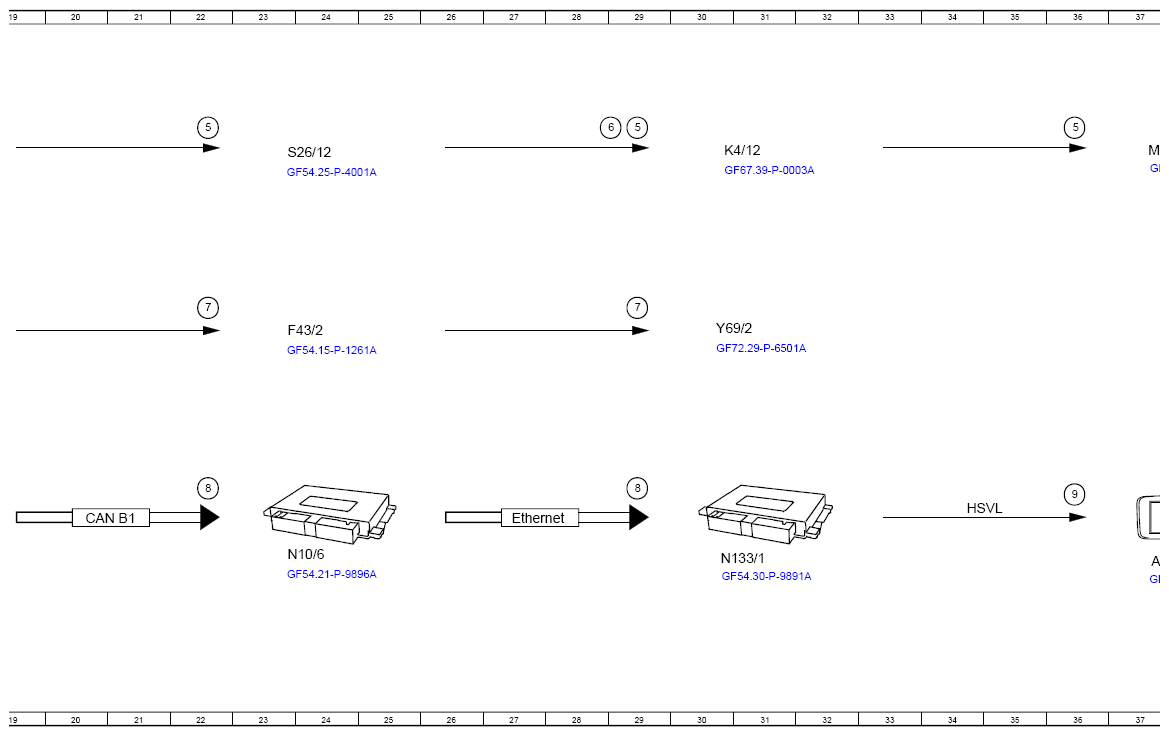

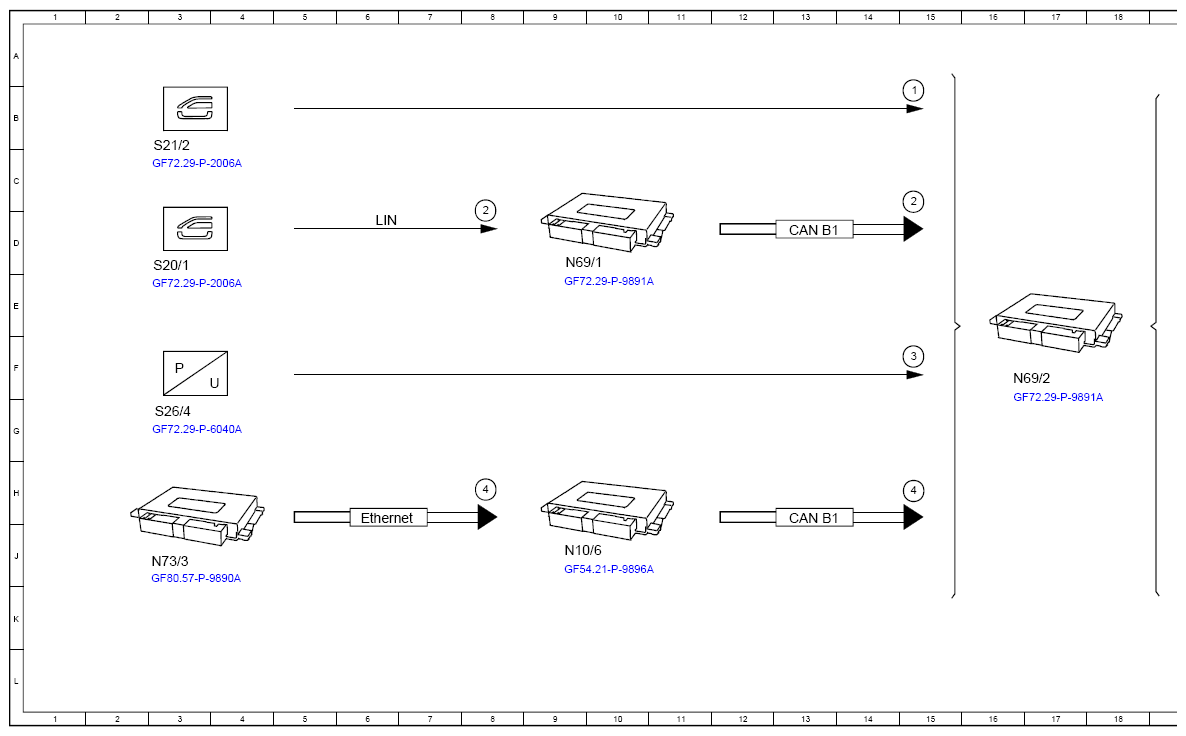

(Function Schematic For Actuation Of Hydraulic Power Window Assembly - PE67.39-P-2503-97B)
Model 223 with code Z12 (Right front power window for special protection)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Right front power window assembly switch, status | 15B |
| 2 | Left front power window assembly switch, status | 15C |
| 2 | Left front power window assembly switch, status | 8D |
| 3 | Hydraulic power window pressure switch, status | 15F |
| 4 | Circuit 15, status | 15H |
| 4 | Circuit 15, status | 8H |
| 5 | Power window hydraulic pump, actuation | 22B |
| 5 | Power window hydraulic pump, actuation | 29B |
| 5 | Power window hydraulic pump, actuation | 36B |
| 6 | Power window hydraulic pump temperature switch, status | 28B |
| 7 | Solenoid valve, actuation | 22F |
| 7 | Solenoid valve, actuation | 29F |
| 8 | Instrument cluster message, request | 22H |
| 8 | Instrument cluster message, request | 29H |
| 9 | Image data, signal | 36H |
| A40/18 | Instrument cluster display | 37J |
| CAN B1 | CAN 1 for vehicle interior | 13H |
| CAN B1 | CAN 1 for vehicle interior | 20H |
| CAN B1 | CAN 1 for vehicle interior | 13D |
| Ethernet | Ethernet | 6H |
| Ethernet | Ethernet | 27H |
| F43/2 | Right front door hydraulic power window assembly fuse block | 23E |
| HSVL | High-speed video link | 34H |
| K4/12 | Right front door power window hydraulic pump relay | 30C |
| LIN | Local Interconnect Network | 6D |
| M51/7 | Right front door power window hydraulic pump | 37C |
| N10/6 | Front signal acquisition and actuation module control unit | 9J |
| N10/6 | Front signal acquisition and actuation module control unit | 23J |
| N133/1 | Instrument cluster control unit | 30J |
| N69/1 | Left front door control unit | 9D |
| N69/2 | Right front door control unit | 16F |
| N73/3 | Electronic ignition switch control unit | 3J |
| S20/1 | Button group for power window and outside mirror adjustment, driver-side door | 3D |
| S21/2 | Button group for passenger-side door power window | 3C |
| S26/12 | Right front door power window hydraulic pump temperature switch | 23C |
| S26/4 | Right front door hydraulic window lifter pressure switch | 3G |
| Y69/2 | Right front door hydraulic power window lifter valve unit | 30E |
