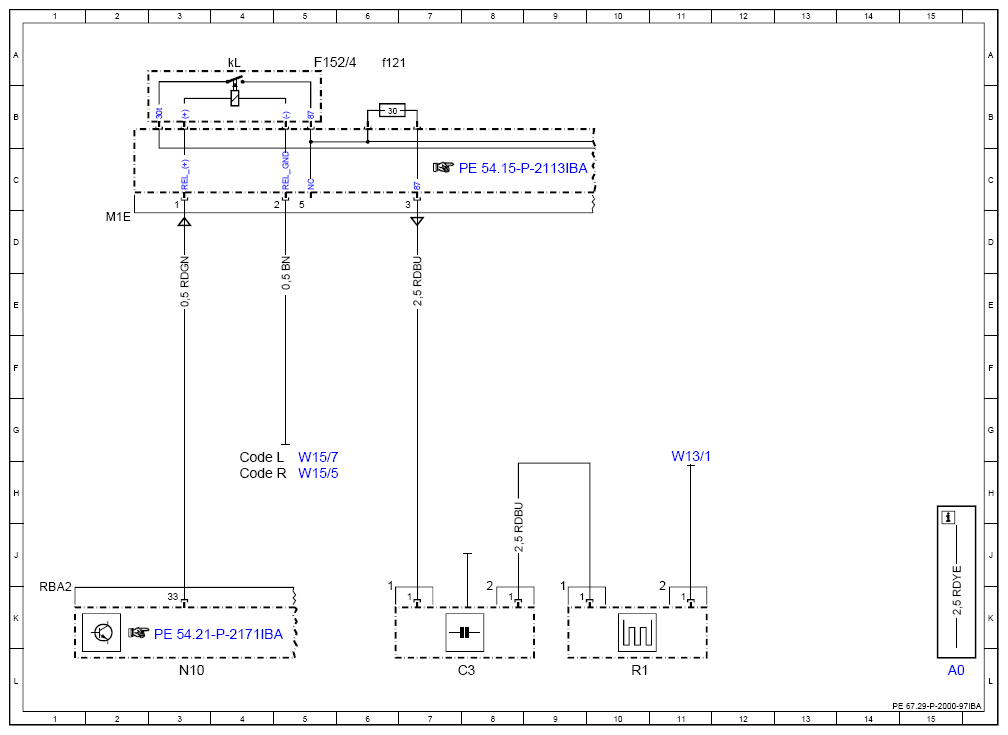

Electric Wiring Diagram For Heated Rear Window - PE67.29-P-2000-97IBA
Model 177
Heater R1
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 15L |
| C3 | Rear window interference suppression capacitor | 8L |
| Code L | LEFT-HAND DRIVE | 4H |
| Code R | RIGHT-HAND DRIVE | 4H |
| F152/4 | Vehicle interior fuse and relay module | 5A |
| F152/4f121 | Fuse 121 | 6A |
| F152/4kL | Heated rear window relay | 4A |
| N10 | Central control module | 3L |
| R1 | Rear window heater | 10L |
| W13/1 | Ground point (left rear window heater) | 11H |
| W15/5 | Left front footwell ground point | 5H |
| W15/7 | Right front footwell ground point | 5H |
