Replace Complete Wheel Well - Ar62.20-P-1200MFA

Model 118.3/6

Model 177.0/1/9

Model 247.0/6/7

MODIFICATION NOTES

19.08.2020 Method extension, picture P62.20-A237-08 with operation steps added Operation steps 11, 12, 13, 14 AR62.20-P-1200-17MFA
07.08.2020 Picture P62.20-A238-08 added
19.08.2020 Method extension, operation steps, added Operation steps 15, 16

Shown on model 177.0

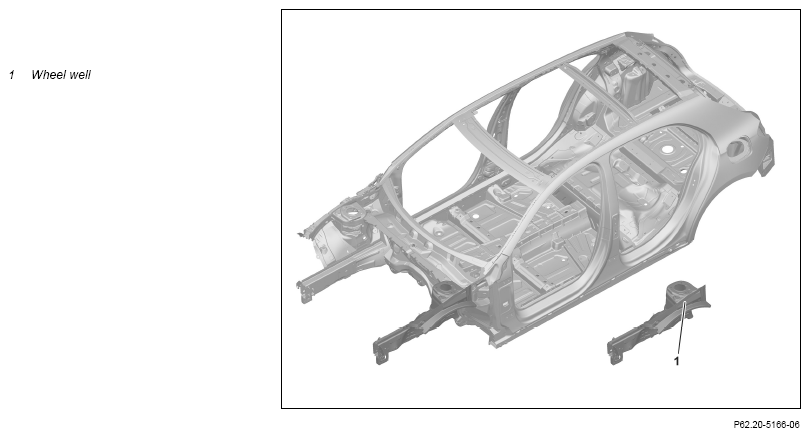

Fig 1: Front Wheel Well Component Location (Model 177.0)
G15492065Courtesy of MERCEDES-BENZ USA
G15492066Courtesy of MERCEDES-BENZ USA

Shown on model 177.0

DANGER The high voltage used for electric welding presents a lethal hazard. Risk of explosion  from welding in areas close to highly inflammable materials. Risk of injury  from weld splatter and UV-light when welding. Risk of poisoning  from inhaling welding gases Use insulating mats. Wear protective clothing, safety glasses and a protective mask. Remove highly inflammable materials from the hazard area. Use air extraction system. AS00.00-Z-0007-01A
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
WARNING Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects. Wear protective gloves, protective clothing and safety glasses, if necessary. AS00.00-Z-0002-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
AS00.00-Z-0017-01A
Notice Measures for preventing damage to components when performing electric welding and soldering work   AH60.00-P-0001-02A
Notice Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
Notice General information on body repair   AH60.00-P-0001-01KOA
Notice Pretreatment of bonding surfaces   AH60.00-P-0008-01SX
  General information on riveting   AH60.00-P-0003-01N
  General information on MB materials   AH98.00-P-9409-03A
REMOVING Remove
1 Remove detachable parts in area of repair point.
2 Cover all detachable parts remaining in vehicle with spark protection blanket.
3 Set up straightening bench with straightening bench support members and straightening set
REFER TO SPECIAL TOOLS 000 588 01 23 00 Body straightening system   WS60.00-P-0023K
4 Place vehicle on straightening bench and fasten.
5 Remove upper front longitudinal member.   AR62.20-P-1286MFA
6 Remove wheel well (1). Model 118.3/6
Model 177.0/1/9
Model 247.0
AR62.20-P-1200-21MFA
    Model 247.6/7 AR62.20-P-1200-21MFX
REFER TO SPECIAL TOOLS 000 588 00 84 00 Heat gun   WS54.00-P-0049B
    1K-zinc dust paint *BR00.45-Z-1056-07A
7 Prepare wheel well (1). Model 118.3/6 Model 177.0/1/9
Model 247.0
AR62.20-P-1200-19MFA
    Model 247.6/7 AR62.20-P-1200-19MFX
    1K-zinc dust paint *BR00.45-Z-1056-07A
INSTALLING Install
8 Install wheel well (1). Model 118.3/6 Model 177.0/1/9
Model 247.0
AR62.20-P-1200-17MFA
    Model 247.6/7 AR62.20-P-1200-17MFX
REFER TO SPECIAL TOOLS 000 588 01 84 00 Welder   WS60.00-P-0021K
REFER TO SPECIAL TOOLS 000 588 02 84 00 Welder   WS60.00-P-0022K
REFER TO SPECIAL TOOLS 000 588 01 23 00 Body straightening system   WS60.00-P-0023K
    Blind rivet Y2 6.5X12.5 (clamping range 2 mm to 5 mm, draw-off strength min. 19 kN) *BR00.45-Z-1012-13A
    Blind rivet Y3 6.5X14.5 (clamping range 4 mm to 7 mm, draw-off strength min. 19 kN) *BR00.45-Z-1016-13A
    Blind rivet Y1 6.4X12 (clamping range
1 mm to 3.5 mm, draw-off strength min. 15.5 kN)
*BR00.45-Z-1035-13A
    1K-zinc dust paint *BR00.45-Z-1056-07A
    Parts kit for 2-component adhesive for body *BR00.45-Z-1162-02A
9 Install upper front longitudinal member.   AR62.20-P-1286MFA
10 Release vehicle from straightening bench, lift and remove straightening bench.
11 Clean weld joints and sheet metal flange.
12 Remove spark protection blankets.
13 Clean repair area.
DANGER Risk of explosion  caused by paint vapors igniting. Risk of poisoning  caused by inhaling paint vapors. No smoking! No open fire! Use respiratory protection, protective clothing, gloves, safety glasses and protective skin cream. Ensure that the area is well ventilated. AS98.00-Z-0002-01A
14 Prime repair areas with a primer filler.
Notice Notes on paintwork repairs   AH98.00-P-9408-02A
  General information on operation items and work procedures for painting   AH98.00-P-0003-01A
    IMPORTANT Use only primer filler approved by Daimler AG: https://xentry.daimler.com

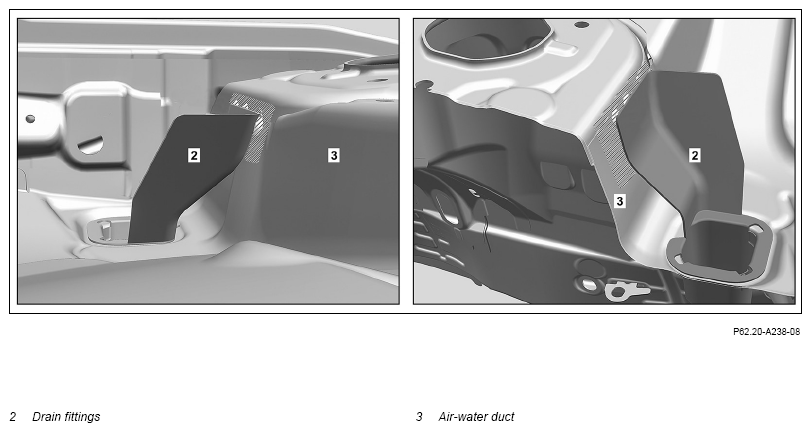

15 Install drainage fitting (2). IMPORTANT The drainage fitting (2) must audibly engage in the corresponding cutout in the air/ water duct (3).
16 Coat hatched area between the drainage fitting (2) and air/water duct (3) with silicone sealing compound. NOTES
The gap between the drainage fitting (2) and air/water duct (3) must be closed with sealing compound.
Otherwise, electrical component parts underneath could be damaged by the ingress of moisture.

    Silicone sealant *BR00.45-Z-1028-01A
17 Seal seam after repair.   AR97.10-P-4000MFA
DANGER Risk of explosion  caused by paint vapors igniting. Risk of poisoning  caused by inhaling paint vapors. No smoking! No open fire! Use respiratory protection, protective clothing, gloves, safety glasses and protective skin cream. Ensure that the area is well ventilated. AS98.00-Z-0002-01A
18 Paint repair areas and adjacent surfaces.
Notice Notes on paintwork repairs   AH98.00-P-9408-02A
  General information on operation items and work procedures for painting   AH98.00-P-0003-01A
    IMPORTANT Use only paints approved by Daimler AG: https://xentry.daimler.com
19 Supplement cavity preservation.   AR97.20-P-1500MFA
20 Reinstall detachable parts in area of repair point.
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1012-13A Blind rivet Y2 6.5X12.5 (clamping range 2 mm to 5 mm, draw-off strength min. 19 kN) A 004 990 16 97
BR00.45-Z-1016-13A Blind rivet Y3 6.5X14.5 (clamping range 4 mm to 7 mm, draw-off strength min. 19 kN) A 004 990 17 97
BR00.45-Z-1028-01A Silicone sealant Use corresponding commercially available repair materials.
BR00.45-Z-1035-13A Blind rivet Y1 6.4X12 (clamping range 1 mm to 3.5 mm, draw-off strength min. 15.5 kN) A 000 991 76 32
BR00.45-Z-1056-07A 1K-zinc dust paint A 000 986 28 00
BR00.45-Z-1162-02A Parts kit for 2-component adhesive for body A 012 989 17 71
