Remove And Install Strut Tower Brace - Ar62.30-P-2500MFA

Model 118, 177

with code 950 (AMG sport package)

Courtesy of MERCEDES-BENZ USA

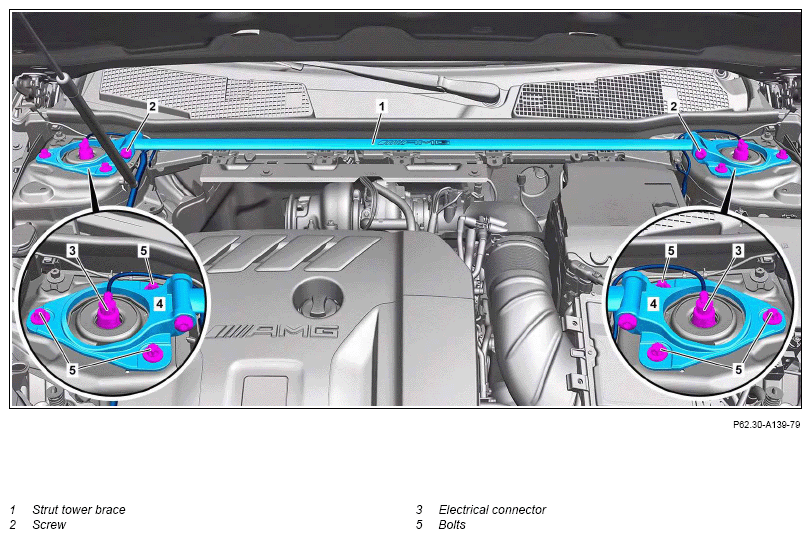

Shown on model 177

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove/install
1	Loosen screws (2).	Screws (2) must be released and tightened when vehicle is on wheels in ready-to-drive condition. Vehicle may not be with suspension compressed or at full rebound travel. Otherwise, the suspension will be under tension and this will affect camber of front wheels.
2	Raise vehicle.		AR00.60-P-1006A
3	Disconnect electrical connection (3).
Notice	Information on preventing damage to electronic components due to electrostatic discharge +		AH54.00-P-0001-01A
4	Remove strut tower brace (1).	To do this, remove the screw/bolts (5).
		Bolt, suspension strut to suspension strut tower If strut tower brace (1) will be replaced: ↓ Screws (2) of new strut tower brace (1) must be released.	*BA32.25-P-1002-04J
		Release tightened screws (2) of a new strut tower brace (1).
5	Install in the reverse order.
