Remove And Install Headlamp Support With CROSSMEMBER And Upper Frame CROSSMEMBER - Ar62.30-P-2200MFA

Model 118.3/6

Model 177.0/1/9

Model 247.0/6/7

MODIFICATION NOTES

03.05.2022 Document reference added Operation step 16

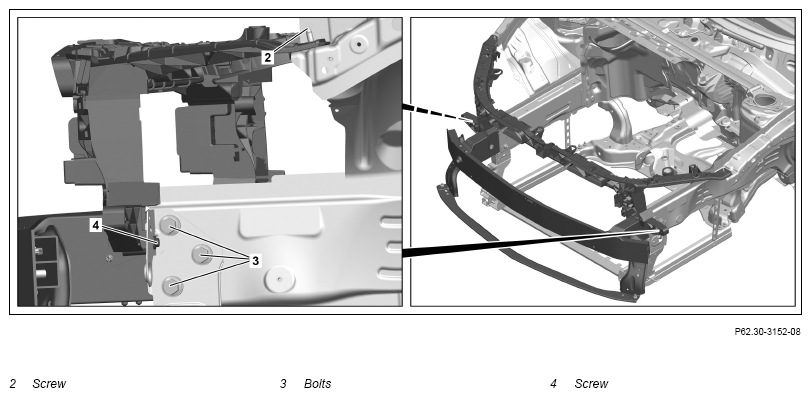

G15492071Courtesy of MERCEDES-BENZ USA

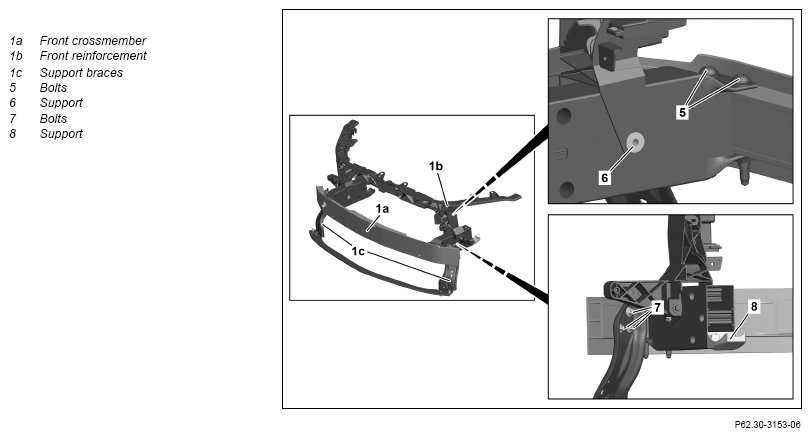

G15492072Courtesy of MERCEDES-BENZ USA
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
WARNING Risk of injury  due to fan starting 1  unexpectedly 1  Do not reach into the rotation or hazard area of the fan. Wear closed and close-fitting work clothes. AS20.40-Z-0001-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle AS00.00-Z-0017-01A
    parts.
Deburr repair panels.
Notice General information on body repair   AH60.00-P-0001-01KOA
REMOVINGINSTALLING Remove/install
1 Remove all detachable parts in repair area.
2 Remove screw (2) on left and right. TORQUE SPECIFICATION Bolt, assembly carrier at top to body *BA62.30-P-1007-02O
3 Remove screw/bolts (3). INSTALLATION IMPORTANT Replace screw/bolts (3). After performing fitting work, always tighten the center screw(3) first, then the outer screws.
    TORQUE SPECIFICATION Bolt, impact absorber/mounting support to longitudinal member *BA62.30-P-1002-02O
4 Unscrew screw (4) on left and right. TORQUE SPECIFICATION Bolt, assembly carrier at bottom to mounting support *BA62.30-P-1008-02O
5 Remove front crossmember (1 a) together with front reinforcement (1b).
6 Remove screws (7). Model 118.3/6
Model 177.0/1/9
Model 247.0
7 Remove front supports (1c) from front crossmember (1a). Model 118.3/6
Model 177.0/1/9
Model 247.0
8 Remove screws (5).
Notice Notes on threaded connections fastened using a tightening angle-based tightening process   AH00.00-P-0020-01A
    TORQUE SPECIFICATION Screw, impact absorber/absorber to crossmember *BA62.30-P-1001-02O
9 Remove front crossmember (1a).
10 Remove support (6).
11 Remove front reinforcement (1b).
12 Remove support (8).
13 Install in the reverse order.
14 Fit front module with front reinforcement (1b). IMPORTANT Remove bumper after adjustment work.
    IMPORTANT Tighten the center screw(3) first, then the outer screws.
    TORQUE SPECIFICATION Bolt, assembly carrier at top to body *BA62.30-P-1007-02O
    TORQUE SPECIFICATION Bolt, impact absorber/mounting support to longitudinal member *BA62.30-P-1002-02O
15 Adjust gap dimensions on lamp units and the bumper. HAND-HELD TESTER Model 118.3/6 Engine hood to bumper *BE60.00-P-1001-01NA
    HAND-HELD TESTER Model 118.3/6 Engine hood to fender *BE60.00-P-1002-01NA
    HAND-HELD TESTER Model 118.3/6 Headlamp top to bumper *BE60.00-P-1003-01NA
    HAND-HELD TESTER Model 118.3/6 Headlamp front to bumper *BE60.00-P-1004-01NA
    HAND-HELD TESTER Model 118.3/6 Headlamp bottom to bumper *BE60.00-P-1005-01NA
    HAND-HELD TESTER Model 247.0/6/7 Engine hood to bumper *BE60.00-P-1001-01MA
    HAND-HELD TESTER Model 247.0/6/7 Engine hood to fender *BE60.00-P-1002-01MA
    HAND-HELD TESTER Model 247.0/6/7 Headlamp front to bumper *BE60.00-P-1003-01MA
    HAND-HELD TESTER Model 247.0/6/7 Headlamp bottom to bumper *BE60.00-P-1004-01MA
    HAND-HELD TESTER Model 247.0/6/7 Headlamp to fender *BE60.00-P-1005-01MA
    HAND-HELD TESTER Model 177.0/1/9 Engine hood to bumper *BE60.00-P-1001-01JA
    HAND-HELD TESTER Model 177.0/1/9 Engine hood to fender *BE60.00-P-1002-01JA
    HAND-HELD TESTER Model 177.0/1/9 Headlamp front to bumper *BE60.00-P-1003-01JA
    HAND-HELD TESTER Model 177.0/1/9 Headlamp bottom to bumper *BE60.00-P-1004-01JA
    HAND-HELD TESTER Model 177.0/1/9 Headlamp to fender *BE60.00-P-1005-01JA
    SPECIAL TOOL Feeler gauge Fig 1
16 Apply wax at connections to body. After adjustment operations and when removing/installing parts of the front module with front reinforcement (1b).
      AR97.20-P-1500MFA
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number Designation Model 177.0 Model 177.1/9
BE60.00-P-1001-01JA Engine hood to bumper Dimension "A" mm 3 (±1) 3 (±1)
For picture, see   AR60.00-P-0700-01MFA AR60.00-P-0700-01MFA
GAP DIMENSIONS

Number Designation Model 247.0 Model 247.6
BE60.00-P-1001-01MA Engine hood to bumper Dimension "A" mm 3 (±1) 3(±1)
For picture, see   AR60.00-P-0700-01MFA AR60.00-P-0700-01MFA
GAP DIMENSIONS

Number Designation Model 247.7
BE60.00-P-1001-01MA Engine hood to bumper Dimension "A" mm 3(±1)
For picture, see   AR60.00-P-0700-01MFA
GAP DIMENSIONS

Number Designation Model 118.3 Model 118.6
BE60.00-P-1001-01NA Engine hood to bumper Dimension "A" mm 3 (±1) 3 (±1)
For picture, see   AR60.00-P-0700-01MFC AR60.00-P-0700-01MFC
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number Designation Model 177.0 Model 177.1/9
BE60.00-P-1002-01JA Engine hood to fender Dimension "B" mm 3 (±0, 5) 3 (±0, 5)
For picture, see   AR60.00-P-0700-01MFA AR60.00-P-0700-01MFA
GAP DIMENSIONS

Number Designation Model 247.0 Model 247.6
BE60.00-P-1002-01MA Engine hood to fender Dimension "B" mm 3 (±0, 5) 3(±0, 5)
Dimension "B1" mm - -
For picture, see   AR60.00-P-0700-01MFA AR60.00-P-0700-01MFA
HOOD TO FENDER GAP DIMENSIONS

Number Designation Model 247.7
BE60.00-P-1002-01MA Engine hood to fender Dimension "B" mm 3 (±0, 5)
Dimension "B1" mm 5(+1/-1, 5)
For picture, see   AR60.00-P-0700-01MFA
GAP DIMENSIONS

Number Designation Model 118.3 Model 118.6
BE60.00-P-1002-01NA Engine hood to fender Dimension "B" mm 3 (±0, 5) 3 (±0, 5)
For picture, see   AR60.00-P-0700-01MFC AR60.00-P-0700-01MFC
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number Designation Model 177.0 Model 177.1/9
BE60.00-P-1003-01JA Headlamp front to bumper Dimension "C" mm 2 (±1, 5) 2 (±1, 5)
For picture, see   AR60.00-P-0700-01MFA AR60.00-P-0700-01MFA
GAP DIMENSIONS

Number Designation Model 247.0 Model 247.6
BE60.00-P-1003-01MA Headlamp front to bumper Dimension "C" mm 2 (±1, 5) 2 (±1, 5)
Dimension "C1" mm - -
For picture, see   AR60.00-P-0700-01MFA AR60.00-P-0700-01MFA
GAP DIMENSIONS

Number Designation Model 247.7
BE60.00-P-1003-01MA Headlamp front to bumper Dimension "C" mm 2 (±1, 5)
Dimension "C1" mm 2(±1, 5)
For picture, see   AR60.00-P-0700-01MFA
GAP DIMENSIONS

Number Designation Model 118.3 Model 118.6
BE60.00-P-1003-01NA Headlamp top to bumper Dimension "C1" mm 2.5 (-05/+1.5) 2.5 (-05/+1.5)
For picture, see   AR60.00-P-0700-01MFC AR60.00-P-0700-01MFC
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number Designation Model 177.0 Model 177.1/9
BE60.00-P-1004-01JA Headlamp bottom to bumper Dimension "D" mm 2 (±1) 2 (±1)
For picture, see   AR60.00-P-0700-01MFA AR60.00-P-0700-01MFA
GAP DIMENSIONS

Number Designation Model 247.0 Model 247.6
BE60.00-P-1004-01MA Headlamp bottom to bumper Dimension "D" mm 2 (±1) 2 (±1)
For picture, see   AR60.00-P-0700-01MFA AR60.00-P-0700-01MFA
GAP DIMENSIONS

Number Designation Model 247.7
BE60.00-P-1004-01MA Headlamp bottom to bumper Dimension "D" mm 2 (±1)
For picture, see   AR60.00-P-0700-01MFA
GAP DIMENSIONS

Number Designation Model 118.3 Model 118.6
BE60.00-P-1004-01NA Headlamp front to bumper Dimension "C2" mm 2, 0 (±1, 5) 2, 0 (±1, 5)
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number Designation Model 177.0 Model 177.1/9
BE60.00-P-1005-01JA Headlamp to fender Dimension "E" mm 2 (±1) 2 (±1)
For picture, see   AR60.00-P-0700-01MFA AR60.00-P-0700-01MFA
GAP DIMENSIONS

Number Designation Model 247.0 Model 247.6
BE60.00-P-1005-01MA Headlamp to fender Dimension "E" mm 2 (±1) 2 (±1)
For picture, see   AR60.00-P-0700-01MFA AR60.00-P-0700-01MFA
GAP DIMENSIONS

Number Designation Model 247.7
BE60.00-P-1005-01MA Headlamp to fender Dimension "E" mm 2 (±1)
For picture, see   AR60.00-P-0700-01MFA
GAP DIMENSIONS

Number Designation Model 118.3 Model 118.6
BE60.00-P-1005-01NA Headlamp bottom to bumper Dimension "C3" mm 1, 5 (±1) 1, 5 (±1)
For picture, see   AR60.00-P-0700-01MFC AR60.00-P-0700-01MFC
FROND END WITH FRONT REINFORCEMENT

Number Designation Model 118 Model 177
BA62.30-P-1001-02O Screw, impact absorber/ absorber to crossmember M10 Stage 1 Nm 28 28
2nd stage ∠° 135 135
FROND END WITH FRONT REINFORCEMENT

Number Designation Model 247
BA62.30-P-1001-02O Screw, impact absorber/ absorber to crossmember M10 Stage 1 Nm 28
2nd stage ∠° 135
FROND END WITH FRONT REINFORCEMENT

Number Designation Model 118 Model 177
BA62.30-P-1002-02O Bolt, impact absorber/mounting support to longitudinal member M12 Nm 125 128
FROND END WITH FRONT REINFORCEMENT

Number Designation Model 247
BA62.30-P-1002-02O Bolt, impact absorber/mounting support to longitudinal member M12 Nm 125
FROND END WITH FRONT REINFORCEMENT

Number Designation Model 118 Model 177
BA62.30-P-1007-02O Bolt, assembly carrier at top to body M8 Nm 20 20
FROND END WITH FRONT REINFORCEMENT

Number Designation Model 247
BA62.30-P-1007-02O Bolt, assembly carrier at top to body M8 Nm 20
FROND END WITH FRONT REINFORCEMENT

Number Designation Model 118 Model 177
BA62.30-P-1008-02O Bolt, assembly carrier at bottom to mounting support M6 Nm 8 4
FROND END WITH FRONT REINFORCEMENT

Number Designation Model 247
BA62.30-P-1008-02O Bolt, assembly carrier at bottom to mounting support M6 Nm 4
Fig 1: Feeler Gauge (129 589 03 21 00)
