Wiring Diagram For Antennas - PE82.62-P-2106-97IBA
Model 177

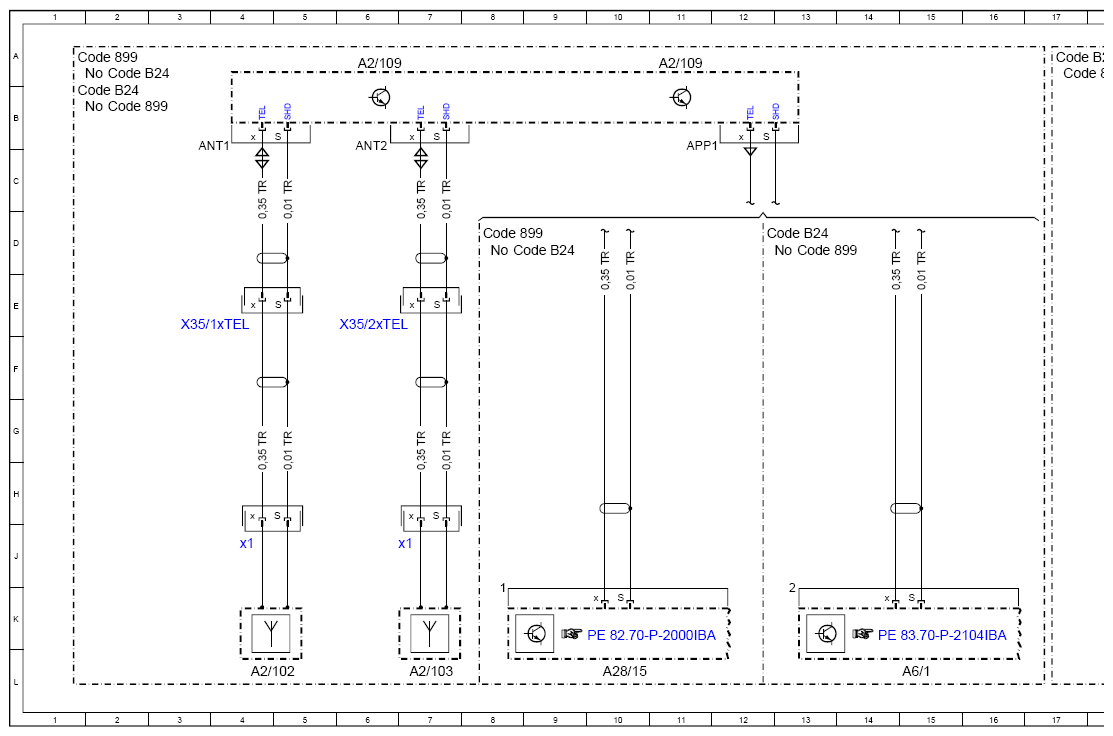

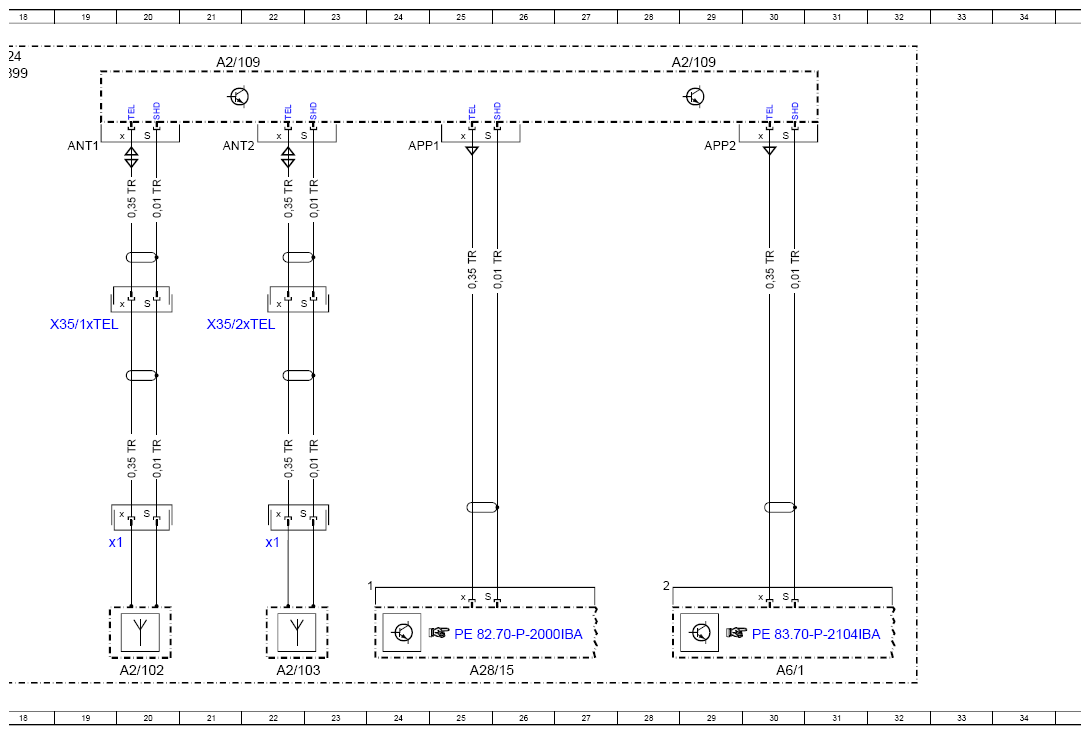

Telephone antenna
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 40L |
| A0 | Use of wiring diagrams | 40L |
| A2/102 | Driver-side telephone antenna | 4L |
| A2/102 | Driver-side telephone antenna | 20L |
| A2/102x1 | Driver"s side telephone antenna electrical connector | 4J |
| A2/102x1 | Driver"s side telephone antenna electrical connector | 19J |
| A2/103 | Passenger-side telephone antenna | 7L |
| A2/103 | Passenger-side telephone antenna | 22L |
| A2/103x1 | Front passenger side telephone antenna electrical connector | 7J |
| A2/103x1 | Front passenger side telephone antenna electrical connector | 22J |
| A2/109 | Telephone antenna splitter | 29A |
| A2/109 | Telephone antenna splitter | 21A |
| A2/109 | Telephone antenna splitter | 6A |
| A2/109 | Telephone antenna splitter | 11A |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 10L |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 25L |
| A6/1 | Stationary heater radio remote control receiver | 15L |
| A6/1 | Stationary heater radio remote control receiver | 30L |
| Code 899 | Wireless phone charging at front and antenna | 8D |
| Code 899 | Wireless phone charging at front and antenna | 13D |
| Code 899 | Wireless phone charging at front and antenna | 1A |
| Code 899 | Wireless phone charging at front and antenna | 2B |
| Code 899 | Wireless phone charging at front and antenna | 17A |
| Code B24 | Remote control for stationary heater | 12D |
| Code B24 | Remote control for stationary heater | 17A |
| Code B24 | Remote control for stationary heater | 2A |
| Code B24 | Remote control for stationary heater | 1B |
| Code B24 | Remote control for stationary heater | 8D |
| X35/1xTEL | Driver door electrical connector | 4E |
| X35/1xTEL | Driver door electrical connector | 19E |
| X35/2xTEL | Front passenger door electrical connector | 6E |
| X35/2xTEL | Front passenger door electrical connector | 22E |
