Telephone (TEL) Wiring Diagram - PE82.70-P-2000-97IBA
Model 177
with code 897 (Front wireless telephone charging)
Control unit N123/8
Model 177
with code 899 (Multifunction telephony)
Control unit N123/8, amplifier A28/15
| Code: | Designation: | Position: |
|---|---|---|

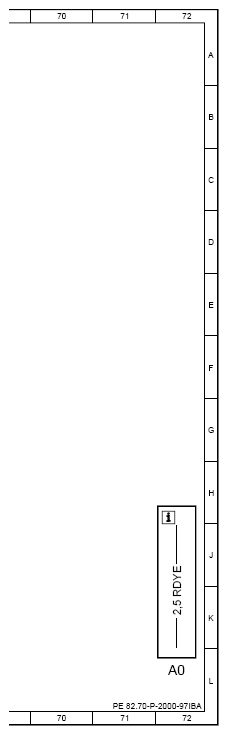

| A0 | Use of wiring diagrams | 72L |
| A2/102 | Driver-side telephone antenna | 12K |
| A2/103 | Passenger-side telephone antenna | 12L |
| A2/109 | Telephone antenna splitter | 12L |

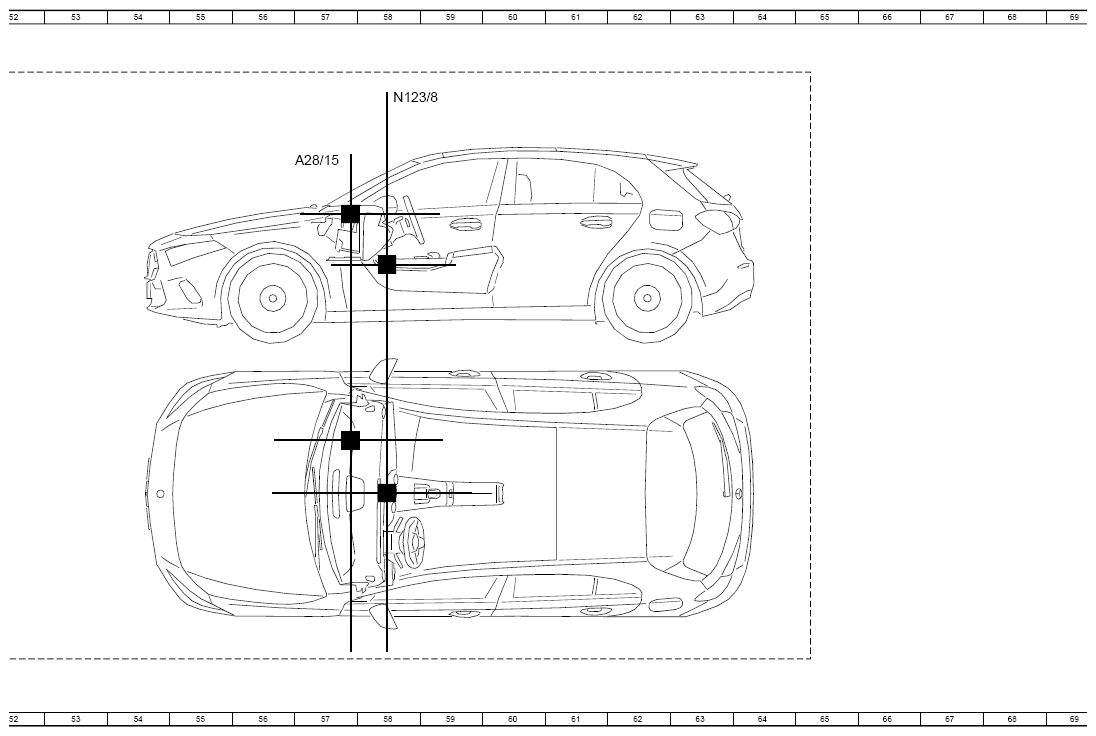

| A28/15 | Cellular telephone system antenna amplifier/compensator | 4A |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 12A |
| A28/15 | Cellular telephone system antenna amplifier/compensator | 57C |

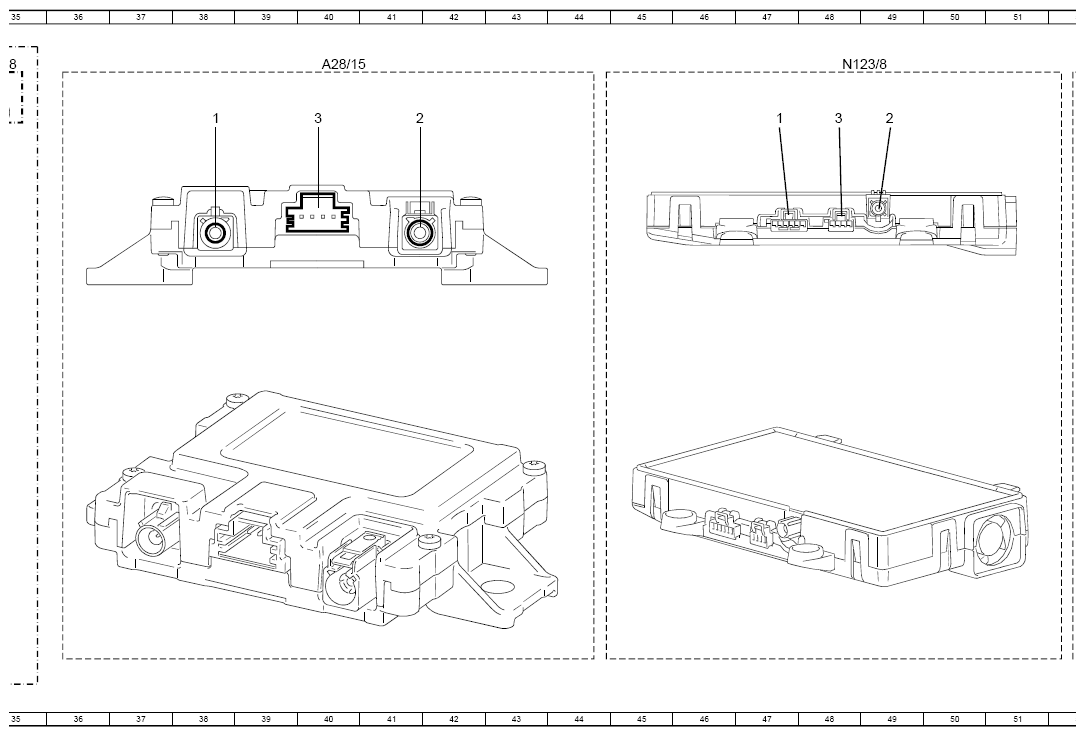

| A28/15 | Cellular telephone system antenna amplifier/compensator | 40A |
| CAN A | Telematics CAN | 32K |
| Code 897 | Wireless mobile phone charging | 26A |

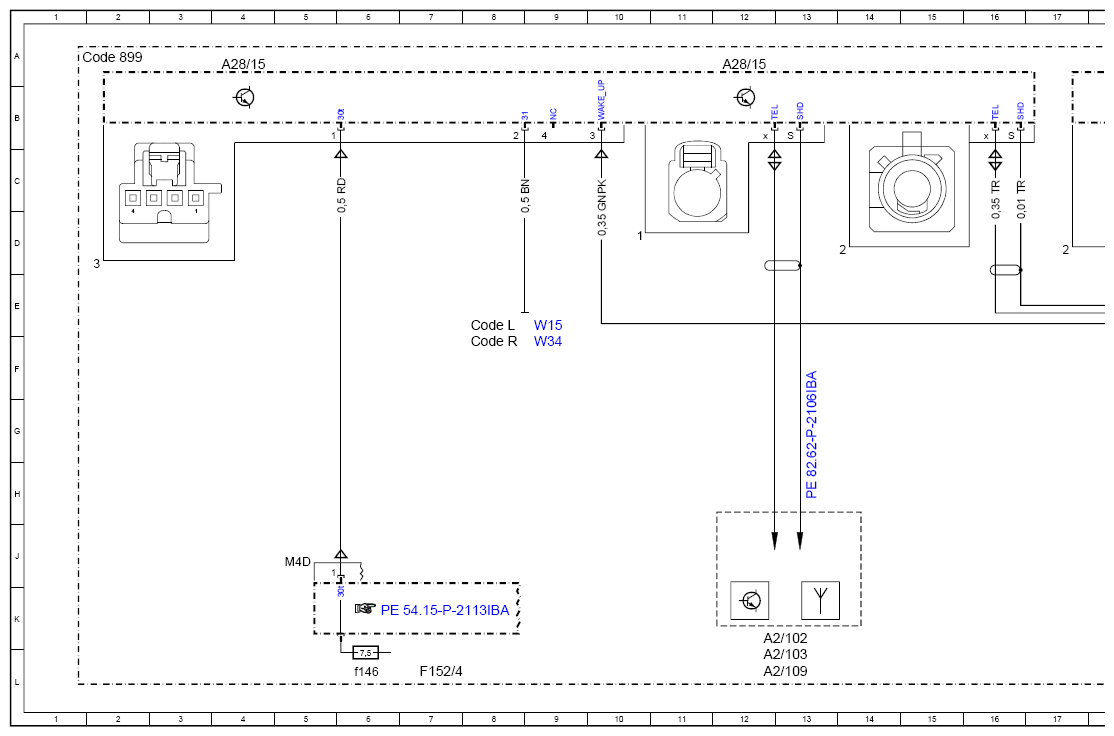

| Code 899 | Wireless phone charging at front and antenna | 1A |
| Code 899 | Wireless phone charging at front and antenna | 26A |
| Code L | LEFT-HAND DRIVE | 8E |
| Code L | LEFT-HAND DRIVE | 30E |
| Code R | RIGHT-HAND DRIVE | 8F |
| Code R | RIGHT-HAND DRIVE | 30F |
| F152/4 | Vehicle interior fuse and relay module | 7L |
| F152/4 | Vehicle interior fuse and relay module | 29L |
| F152/4f146 | Fuse 146 | 6L |
| F152/4f146 | Fuse 146 | 28L |

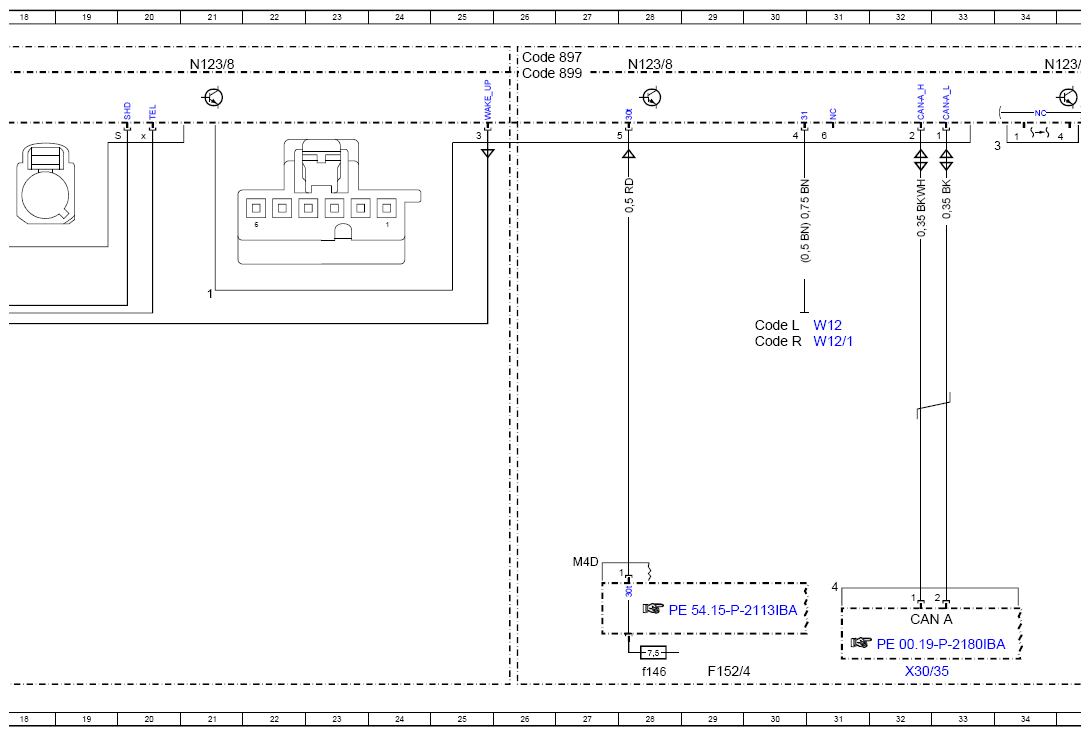

| N123/8 | Front mobile phone cradle control unit | 21A |
| N123/8 | Front mobile phone cradle control unit | 28A |
| N123/8 | Front mobile phone cradle control unit | 34A |
| N123/8 | Front mobile phone cradle control unit | 48A |
| N123/8 | Front mobile phone cradle control unit | 58B |
| W12 | Left center console ground point | 31E |
| W12/1 | Right center console ground point | 31F |
| W15 | Right front footwell ground point | 9E |
| W34 | Left footwell ground point | 9F |
| X30/35 | Telematics CAN potential distributor (CAN A) | 32L |
