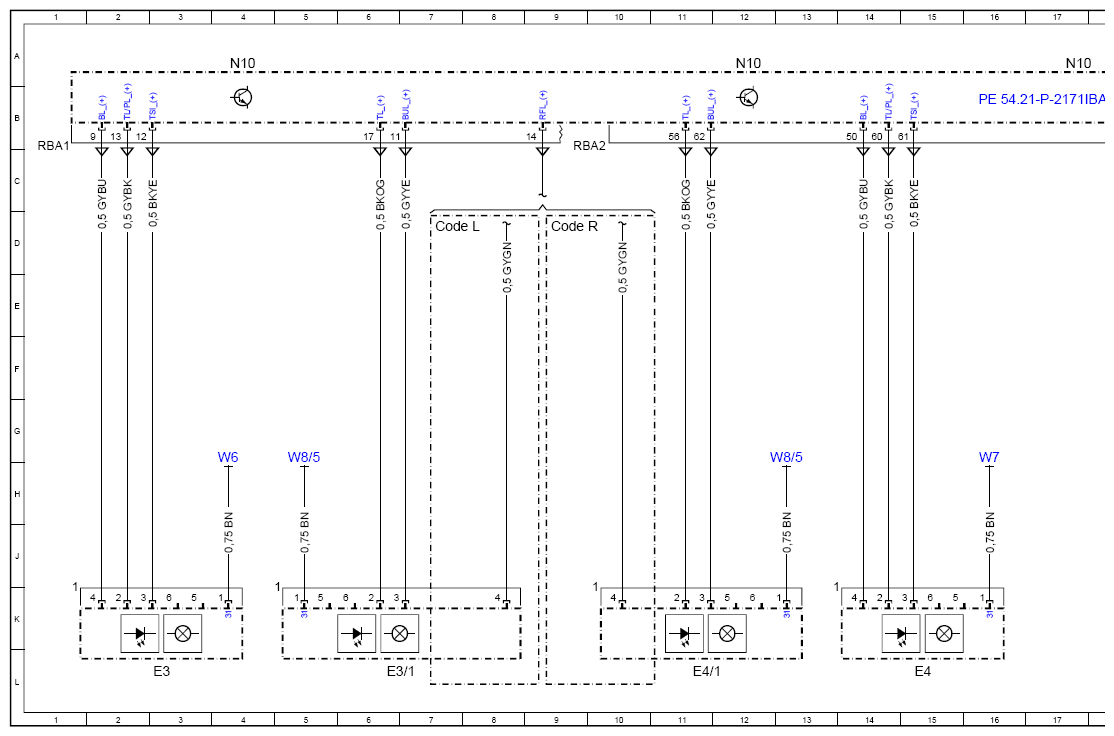

Wiring Diagram Of Exterior Lights - PE82.10-P-2000-97IBF
Model 177
with code 613 (headlights left-hand-traffic)
except code 631 (Static LED headlamps, left-hand traffic)
except code 632 (Headlamps, LED, static, right-side traffic)
except code 640 (SAE dynamic LED headlamps, right-hand traffic)
except code 641 (Dynamic LED headlamps, left-hand traffic)
except code 642 (Dynamic LED headlamps, right-hand traffic)
Rear lamps E3, E3/1, E4, E4/1
Model 177
with code 620 (Right-hand traffic headlamps)
except code 631 (Static LED headlamps, left-hand traffic)
except code 632 (Headlamps, LED, static, right-side traffic)
except code 640 (SAE dynamic LED headlamps, right-hand traffic)
except code 641 (Dynamic LED headlamps, left-hand traffic)
except code 642 (Dynamic LED headlamps, right-hand traffic)
Rear lamps E3, E3/1, E4, E4/1
| Code: | Designation: | Position: |
|---|---|---|

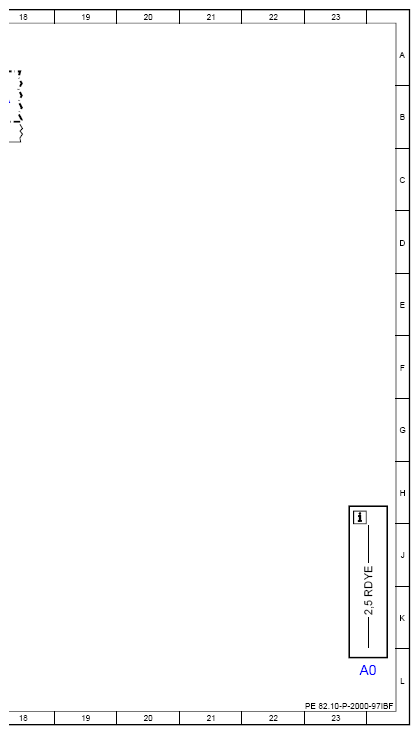

| A0 | Use of wiring diagrams | 23L |
| Code L | LEFT-HAND DRIVE | 7D |
| Code R | RIGHT-HAND DRIVE | 9D |
| E3 | Left rear lamp unit | 3L |
| E3/1 | Inner left rear lamp unit | 6L |
| E4 | Right rear lamp unit | 15L |
| E4/1 | Inner right rear lamp unit | 11L |
| N10 | Central control module | 4A |
| N10 | Central control module | 12A |
| N10 | Central control module | 17A |
| W6 | Left wheel arch trunk ground point | 4H |
| W7 | Right wheelhouse trunk ground point | 16H |
| W8/5 | Right tailgate ground point | 5H |
| W8/5 | Right tailgate ground point | 13H |
