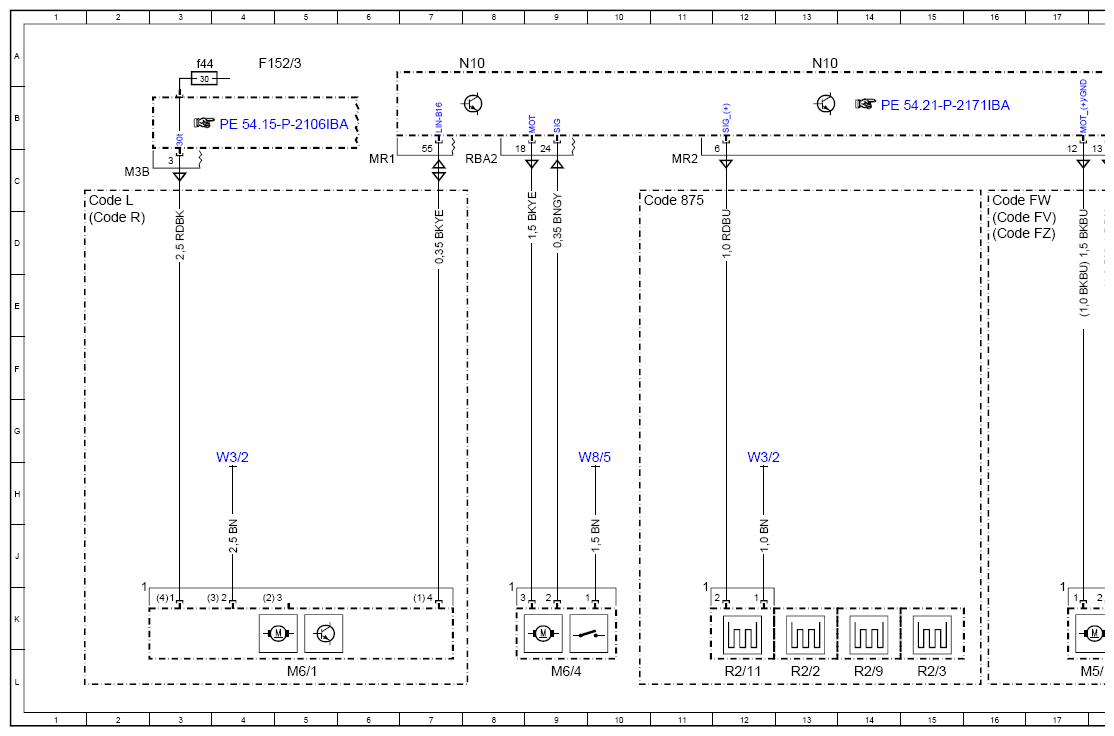

Wiring Diagram For Windshield Wiper System - PE82.30-P-2003-97IBA
Model 177
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 23L |
| Code 875 | Heated windshield washer system | 10C |
| Code FV | LONG SEDAN | 16D |
| Code FW | SEDAN | 16C |
| Code FZ | SPECIAL VERSION | 16D |
| Code L | LEFT-HAND DRIVE | 2C |
| Code R | RIGHT-HAND DRIVE | 2D |
| F152/3 | Engine compartment fuse and relay module | 4A |
| F152/3f44 | Fuse 44 | 3A |
| M5/1 | Windshield washer system pump | 17L |
| M6/1 | Wiper motor | 5L |
| M6/4 | Tailgate wiper motor | 9L |
| N10 | Central control module | 8A |
| N10 | Central control module | 13A |
| R2/11 | Spray nozzle hose heater | 12L |
| R2/2 | Left spray nozzle heater | 13L |
| R2/3 | Right spray nozzle heater | 15L |
| R2/9 | Center spray nozzle heater | 14L |
| W3/2 | Left front wheel arch ground point | 4H |
| W3/2 | Left front wheel arch ground point | 12H |
| W8/5 | Right tailgate ground point | 10H |
