Check Suspension Data, Assign Actual Value To Table - AR40.20-P-0001-01MFP

Model 177.051/151

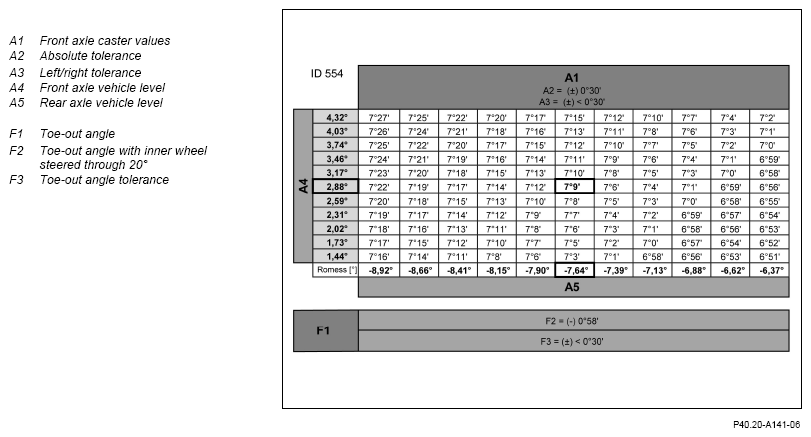

G15489277

Courtesy of MERCEDES-BENZ USA

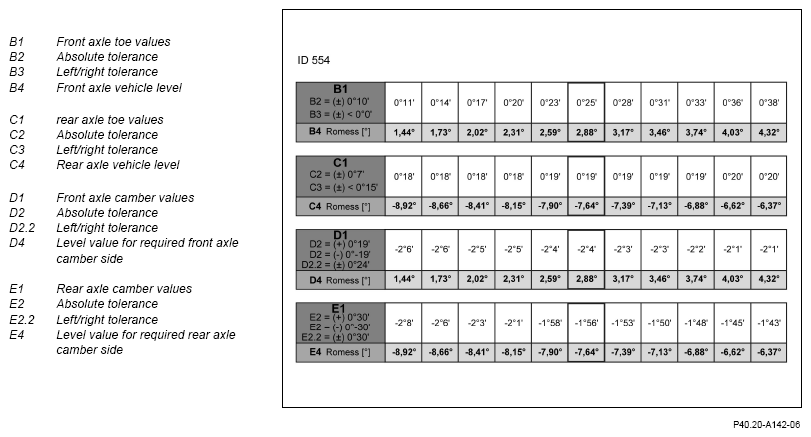

G15489278

Courtesy of MERCEDES-BENZ USA
