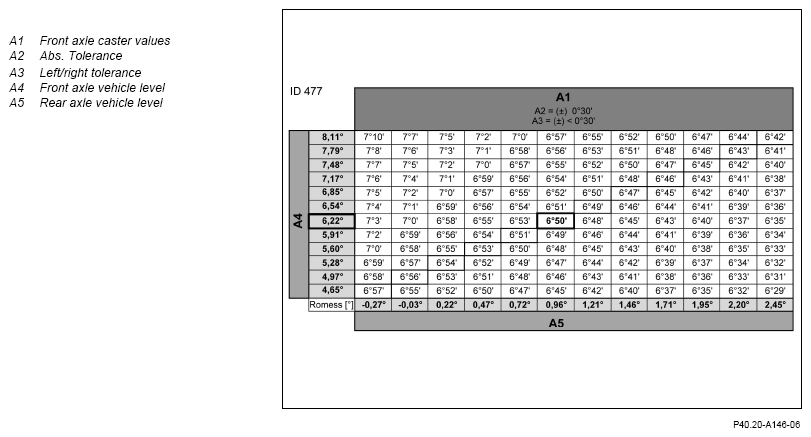

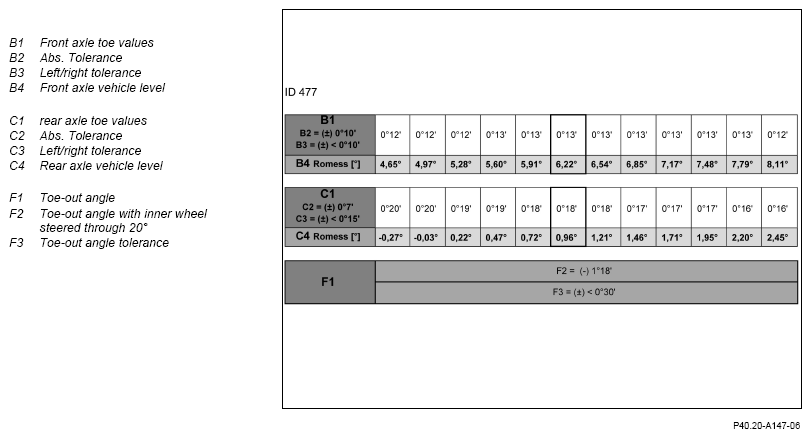

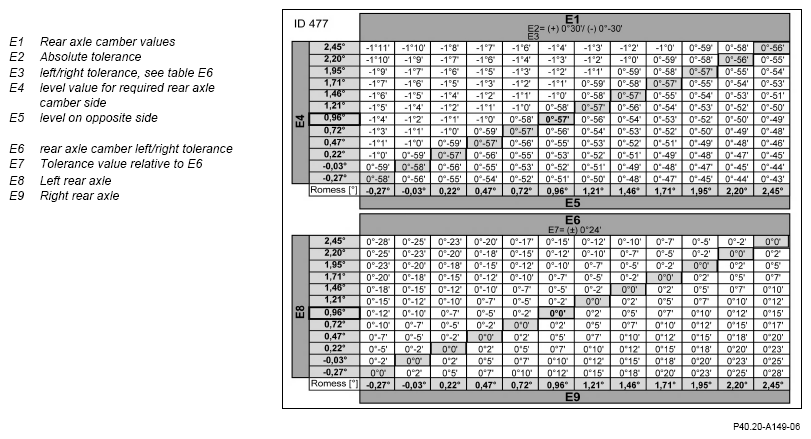

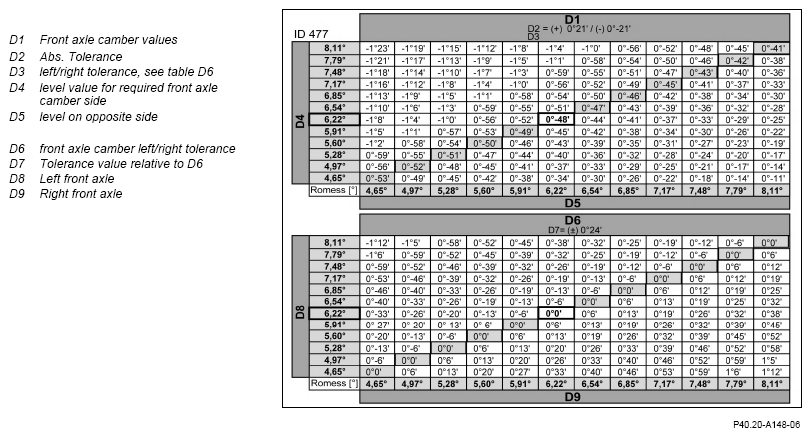

Check Suspension Data, Assign Actual Value To Table - AR40.20-P-0001-01MFD

Model 177.0 (except 177.051/053/054), 177.1 (except 177.151), 177.9 (except 177.951)

with code 485 (Comfort suspension)

with code ME08 (Hybrid drive 75-84 kW VARIANT (INCLUDING PLUGIN))

with code U54 (Compound-link axle)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA
