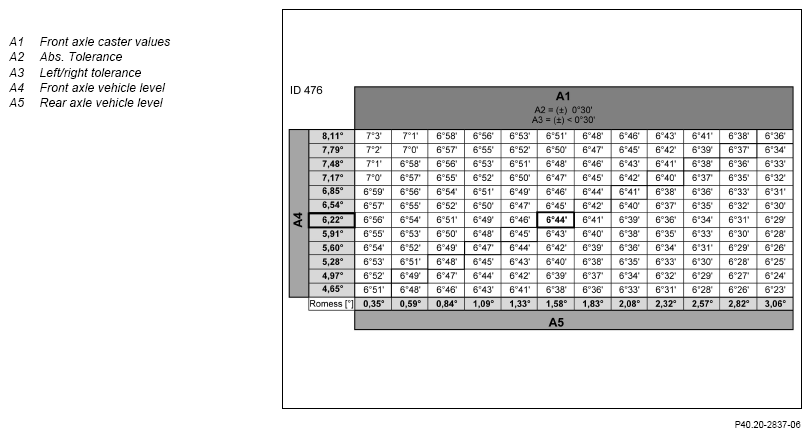

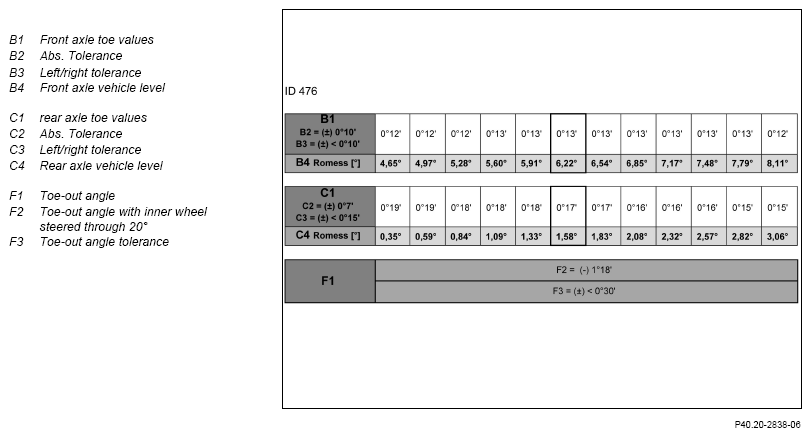

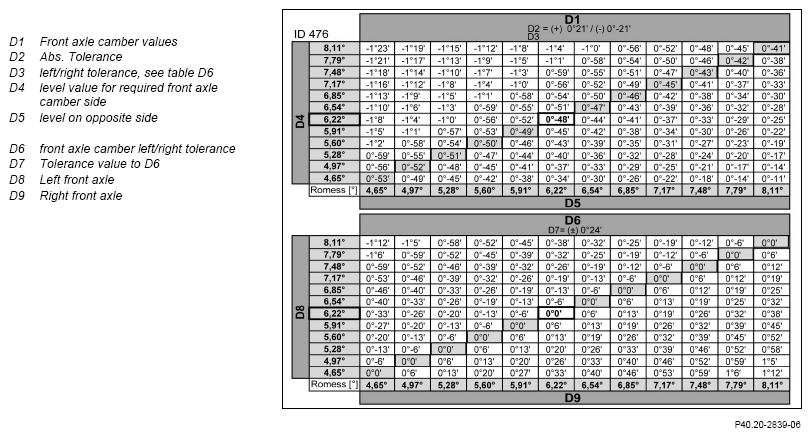

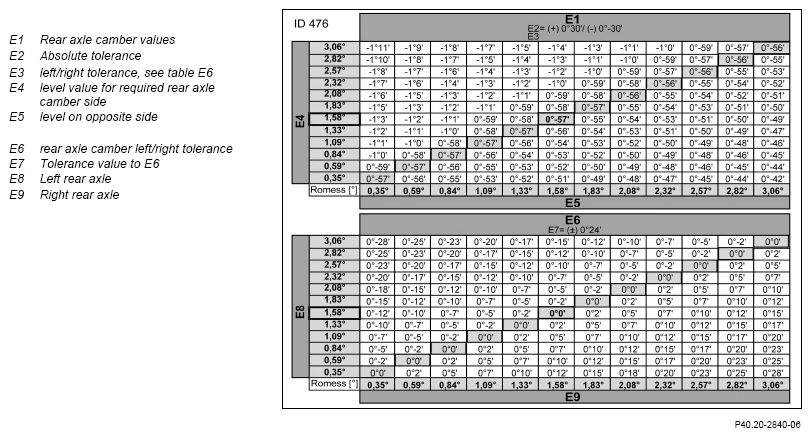

Check Suspension Data, Assign Actual Value To Table - AR40.20-P-0001-01MFB

Model 177.0 (except 177.051/053/054), 177.1 (except 177.151)

with code 482 (Off-road comfort suspension)

with code U54 (Compound-link axle)

except code 459 (Steel suspension with adjustable damping)

except code ME08 (Hybrid drive 75-84 kW VARIANT (INCLUDING PLUGIN))
