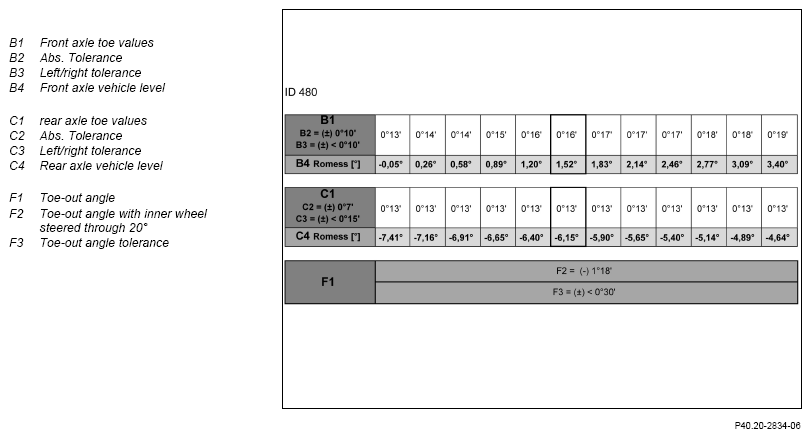

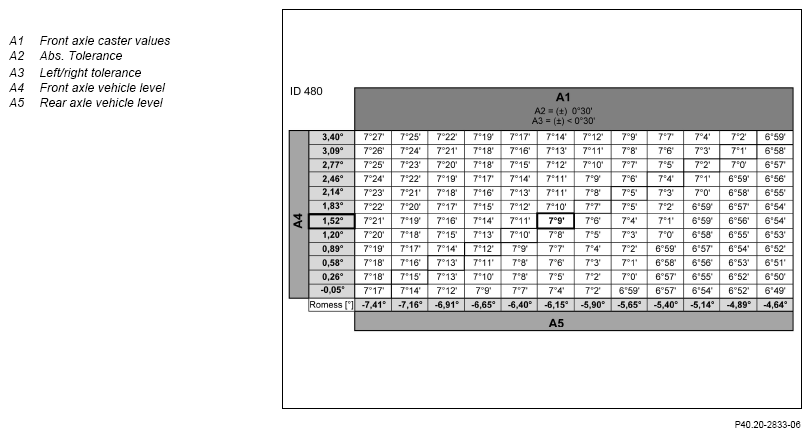

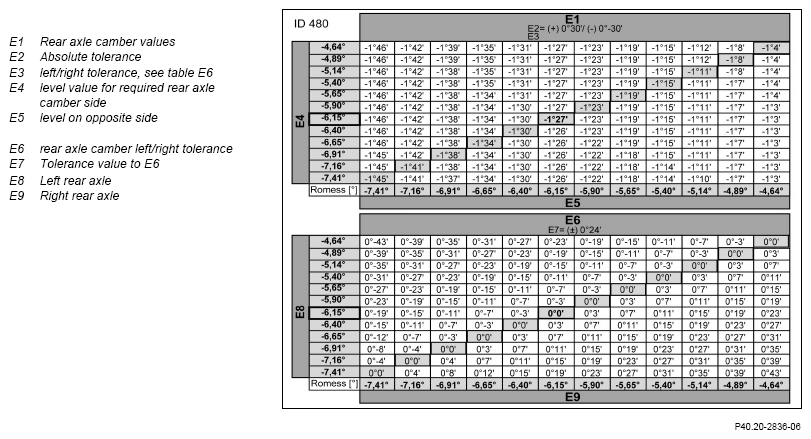

Check Suspension Data, Assign Actual Value To Table - AR40.20-P-0001-01MFA

Model 177.0 (except 177.051/053/054), 177.1 (except 177.151)

with code 459 (Steel suspension with adjustable damping)

with code U55 (Multi-link axle)

except code ME08 (Hybrid drive 75-84 kW VARIANT (INCLUDING PLUGIN))

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA
