(Check Suspension Data, Assign Actual Value To Table - AR40.20-P-0001-01MFQ)

Model 177.951

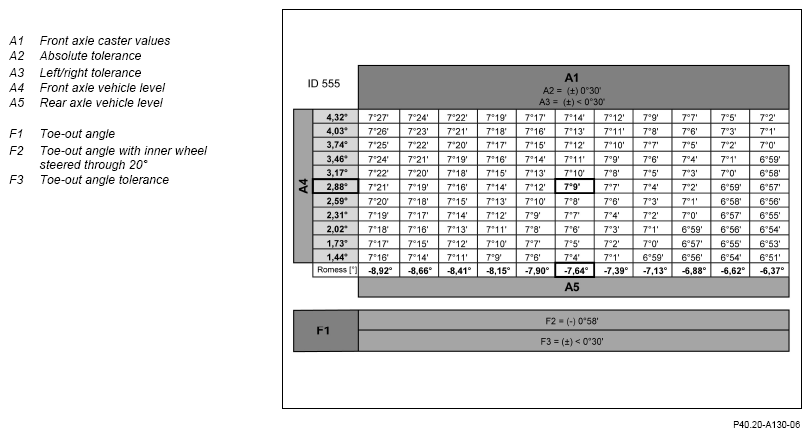

G15489279

Courtesy of MERCEDES-BENZ USA

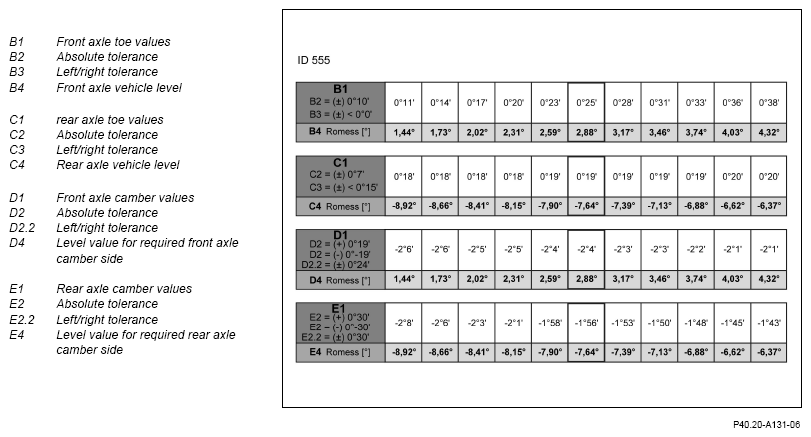

G15489280

Courtesy of MERCEDES-BENZ USA
