Remove/Install Windshield Washer System Pump - AR82.35-P-6002MFA
Model 118, 177, 243, 247
MODIFICATION NOTES
| 07.01.2020 | Remove washer fluid reservoir for windshield washer system. | Operation step 1.2. |
Shown on model 177.0 with engine 282

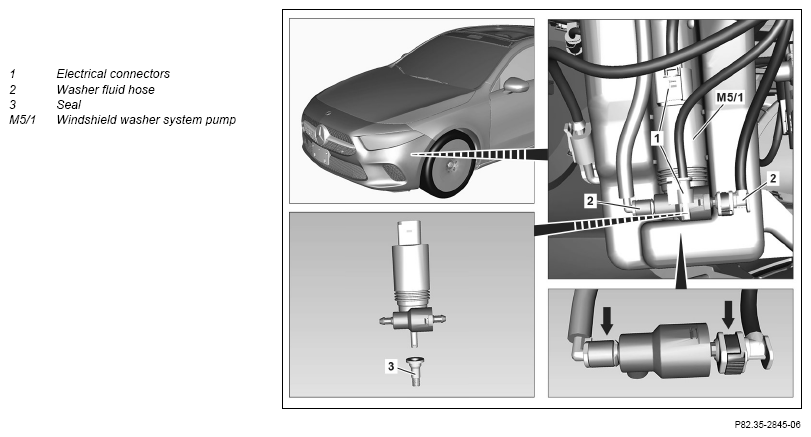

Fig 1: Windshield Washer System Pump Components Location - Model 177 (Shown On Model 177.0 With Engine 282)
| Risk of fire and explosion caused by ignition of window washing fluid or antifreeze and their vapors. Risk of poisoning caused by swallowing window washing fluid or antifreeze or inhaling their vapors. Risk of injury or physical irritations caused by contact of window washing fluid or antifreeze with eyes, mucous membranes or skin. | Wear protective clothing and tight-fitting safety glasses. No open flames, fire or ignition sources. Avoid contact with eyes, mucous membranes and skin. When working with window washing fluids or antifreeze, do not eat, drink, or smoke. Do not inhale vapors and ensure sufficient ventilation in the working area. Store window washing fluid and antifreeze leakfree in safely closed original containers and out of the reach of children. | AS82.35-Z-0001-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1.1 | Remove front section of left front fender liner. | Model 118, 177, 247 with engine 260, 282, 608, 654 Model 243 |
|
| Model 118, 177, 247 with engine 260, 282, 608, 654 | AR88.10-P-1301MFA | ||
| Model 243 | AR88.10-P-1301EQA | ||
| 1.2 | Remove windshield washer system washer fluid reservoir until the windshield washer system pump (M5/1) is accessible. | Model 118, 177, 247.7 with engine 139 | |
| AR82.35-P-6000MFB | |||
| 2 | Release and disconnect electrical connections (1). | ||
| 3 | Release washer fluid hoses (2) at arrows and detach. | ||
| 4 | Remove windshield washer system pump (M5/1). | ||
| 5 | Check seal (3) of windshield washer system pump (M5/1). | If there are problems, ↓ Replace seal (3). |
|
| 6 | Install in the reverse order. | ||
| 7 | Correct fluid level of windshield washer system. | ||
| Model 247 | AP82.35-P-8210F | ||
| Model 118, 177 | AP82.35-P-8210D | ||
| Model 243 | AP82.35-P-8210J | ||
| Check | |||
| 8 | Check windshield washer system for proper operation. | ||
| Model 118.6 | AP82.35-P-8252HB | ||
| Model 118.3 | AP82.35-P-8252H | ||
| Model 247 | AP82.35-P-8252G | ||
| Model 177 | AP82.35-P-8252E | ||
| Model 243 | AP82.35-P-8252K |
