Remove/Install Wi-Fi Antenna Right Of Instrument Panel - AR82.85-P-0014MFA
Model 118, 177, 243, 247
with code 548 (Connect 20 MID (NTG6))
Model 118, 177, 243, 247
with code 549 (Connect 20 HIGH (NTG6))
Model 118, 177, 247
with code 547 (Connect 20 Entry (NTG6))
Shown on model 177.0
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||

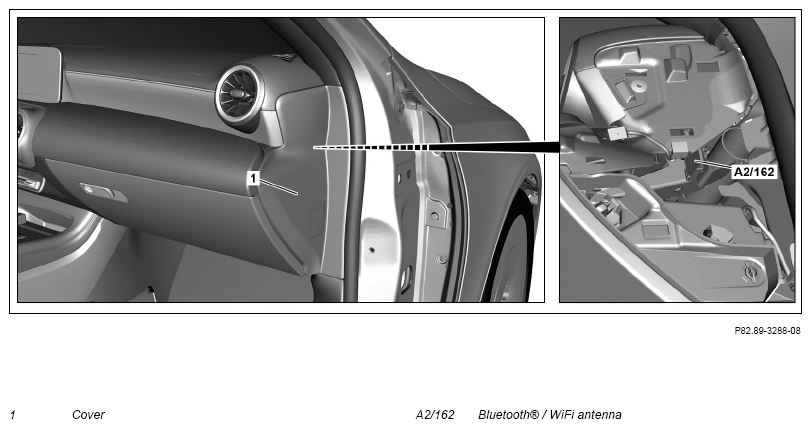

| 2 | Unclip trim (1) at right. | Fig 1 | |
| 3 | Unclip Bluetooth®/Wi-Fi antenna (A2/162) carefully from the holder. | ||
| 4 | Release and disconnect electrical connector from Bluetooth®/Wi-Fi antenna (A2/ 162). | ||
| 5 | Install in the reverse order. |
