Remove/Install Tail Lamp Unit On Trunk Lid - AR82.10-P-4927MFV
Model 118.3, 177.1/9

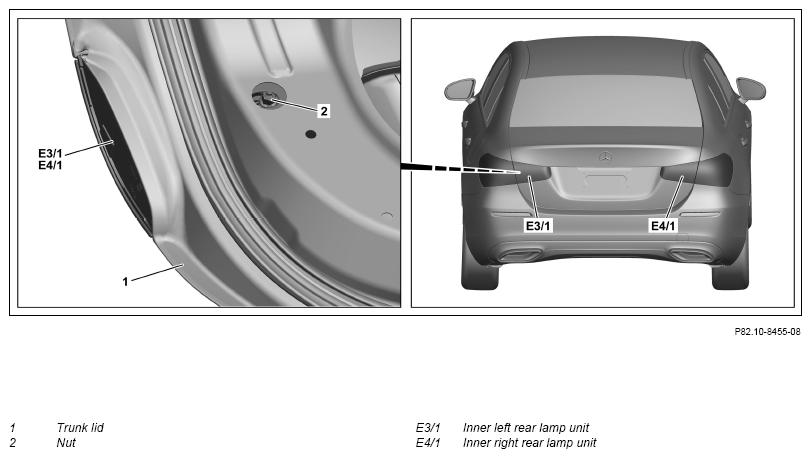

Shown on model 177.1
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Release trim of the trunk lid (1) until nut (2) is accessible. | AR68.30-P-8151MFV | |
| 2 | Unbolt nut (2). | ||
| 3 | Remove inner rear left lamp unit (E3/1) or inner rear right lamp unit (E4/1) far enough until the electrical connector is accessible. | Carefully position inner rear left lamp unit (E3/1) or inner rear right lamp unit (E4/1). Otherwise adjacent parts may be damaged. Do not crush or kink or subject lines to tension This leads to line damage. |
|
| 4 | Release and disconnect electrical connector of inner rear left lamp unit (E3/1) or inner rear right lamp unit (E4/1). | ||
| 5 | Install in the reverse order. |
