Remove/Install Tail Lamp Unit On Liftgate - AR82.10-P-4926MFA

Model 118.6, 177.0, 247.0/6

Shown on model 177.0

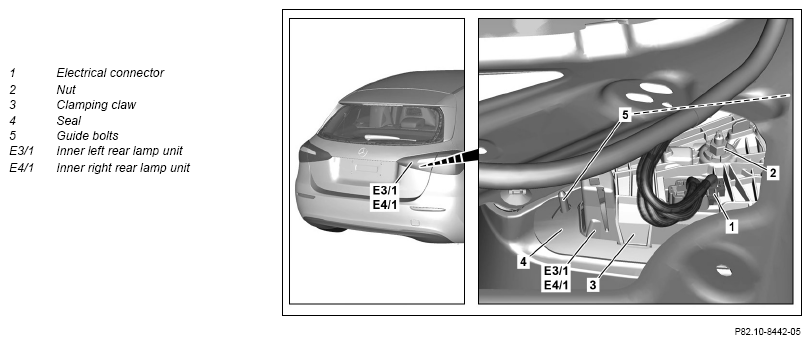

Fig 1: Tail Lamp Unit On Liftgate Components Location - Model 177.0

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on HANDS-FREE ACCESS		AH80.61-P-0001-01A
	Remove/install
1	Switch off ignition and store transmitter key outside of transmitter range (min. 2 m).
2	Remove center liftgate trim.		AR72.20-P-6618MFA
3	Release electrical connector (1) and disconnect.
4	Loosen nut (2).	The nut (2) remains on the inner left rear lamp unit (E3/1) or the inner right rear lamp unit (E4/1).
5	Squeeze clamping claw (3) together and remove inner left rear lamp unit (E3/1) or inner right rear lamp unit (E4/1) from liftgate.	Make sure that the guide pins (5) insert correctly into the liftgate.
6	Check seal (4) for damage.	If seal (4) is damaged, ↓ Install new seal (4).
7	Install in the reverse order.
