Remove/Install Subwoofer - AR82.62-P-7841MFD
Model 118, 177, 243, 247

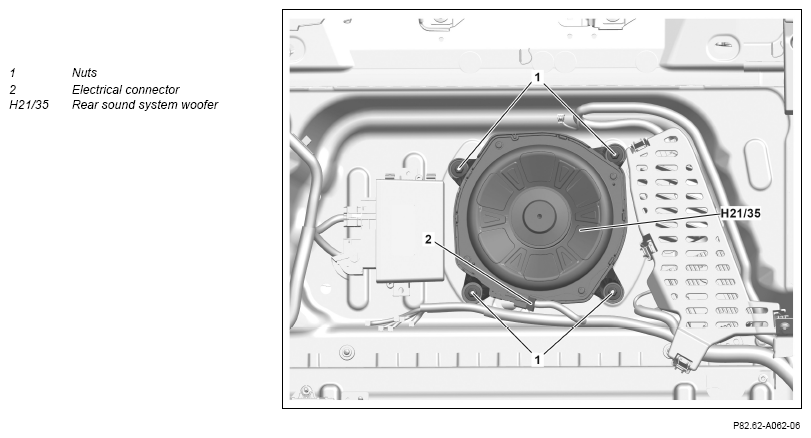

Shown on model 118

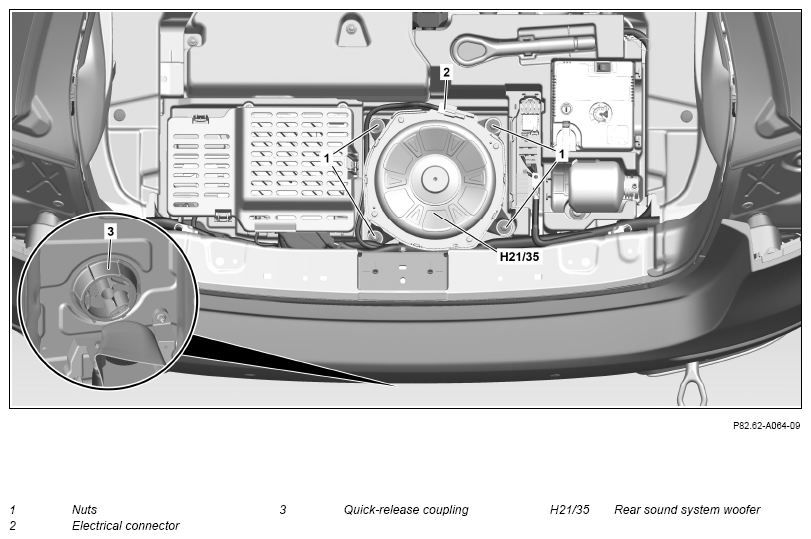

Shown on model 177 with engine 282 with code ME08 (Hybrid drive 75-84 KW VARIANT (INCLUDING PLUG-IN))
| Risk of death when working on component parts and systems with U > = 30 V alternating voltage (AC) or U > = 60 V direct voltage (DC) | Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. Model 177, 247 with engine 282 with code ME08 (Hybrid drive 75-84 kW VARIANT (INCLUDING PLUGIN)) | AS00.00-Z-0035-01A | |
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notice | General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment | Model 177, 247 with engine 282 with code ME08 (Hybrid drive 75-84 kW VARIANT (INCLUDING PLUGIN)) |
AH00.00-Z-0300-01A |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove rear underfloor paneling. | Model 177, 247 with engine 282 with code ME08 (Hybrid drive 75-84 kW VARIANT (INCLUDING PLUGIN)) |
|
| AR61.30-P-1001MFA | |||
| 2 | Remove quick-release fastener (3). | Model 177, 247 with engine 282 with code ME08 (Hybrid drive 75-84 kW VARIANT (INCLUDING PLUGIN)) |
|
| 3 | Lower vehicle. | Model 177, 247 with engine 282 with code ME08 (Hybrid drive 75-84 kW VARIANT (INCLUDING PLUGIN)) |
|
| AR00.60-P-1006A | |||
| 4.1 | Remove load compartment floor. | Model 118, 177, 243.7, 247.0/7 Model 243.6, 247.6 except code 847 (3rd seat row) |
|
| 4.2 | Remove rear seat in 3rd seat row. | Model 243.6, 247.6 with code 847 (3rd seat row) |
|
| AR91.12-P-0007MFX | |||
| 5 | Release and disconnect electrical connector (2). | ||
| 6 | Remove nuts (1). | ||
| 7 | Remove rear sound system bass speaker (H21/35). | ||
| 8 | Install in the reverse order. |
