Remove/Install Multimedia Connection Unit In Front Stowage Compartment - AR82.60-P-1032MFA

Model 118, 177, 243, 247

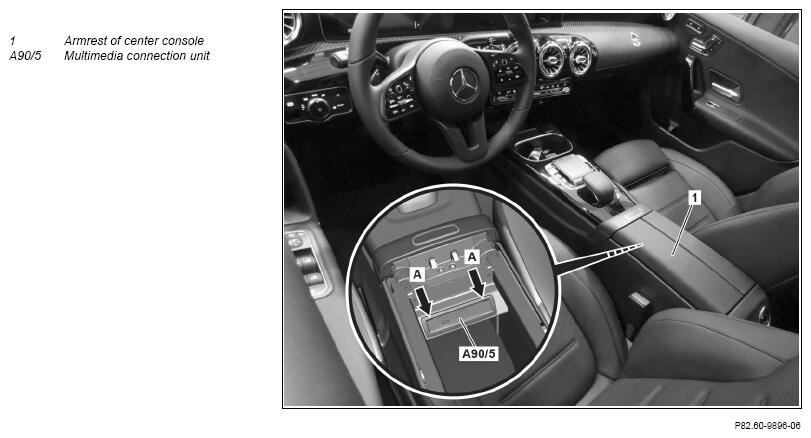

Fig 1: Multimedia Connection Unit In Front Stowage Compartment Components Location - Model 177

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Switch off ignition and store transmitter key outside of transmission range (min. 2 m)
2	Open armrest of center console (1)
3	Insert removal fixtures into openings (arrows A) of the multimedia connection unit (A90/5)	Removal assembly	Fig 2
4	Pull multimedia connection unit (A90/5) out of center console with removal fixtures until electrical connectors are accessible	Do not crush or kink or subject electric lines to tension. This will result in damage to the electric lines and can impair their function.
		Removal assembly	Fig 2
5	Release and disconnect electrical connectors	The number of electrical connectors varies according to vehicle equipment.
6	Operate locks on multimedia connection unit (A90/5) and pull out removal fixtures	Removal assembly	Fig 2
	Install
7	Connect electrical connectors	The number of electrical connectors varies according to vehicle equipment.
8	Insert multimedia connection unit (A90/5) in center console	The multimedia connection unit (A90/5) must audibly lock on both sides.
9	Close armrest on center console (1)

Fig 2: Identifying Removal Assembly (000 589 88 63 00)

Courtesy of MERCEDES-BENZ USA
