Remove/Install HERMES Control Unit - AR82.95-P-0019MFA

Model 118, 177, 243, 247

with code 362 (HERMES communications module LTE)

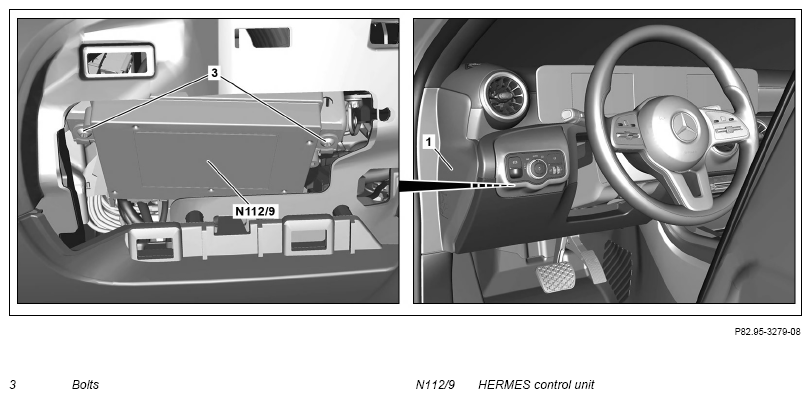

Fig 1: HERMES Control Unit Components Location - Model 177 With Code 362

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Switch off ignition and store transmitter key outside of transmitter range (min. 2 m).
2	Remove light switch module.		AR54.25-P-3270MFA
3	Remove covering under instrument panel.		AR68.10-P-1501MFA
4	Remove screw/bolts (3).
5	Remove HERMES control unit (N112/9) far enough until electrical connectors are accessible.	Do not stretch or kink lines. This will result in damage to the lines which may impair their functional capability.
6	Release and disconnect electrical connectors from HERMES control unit (N112/9) and remove HERMES control unit (N112/9).
7	Install in the reverse order.
	Finishing activity
8	Perform commissioning of HERMES control unit (N112/9).	When replacing the HERMES control unit (N112/9).
			AD00.00-P-2000-06MFA
