Remove/Install Global Positioning System (GPS) Antenna - AR82.85-P-0002MFA
Model 118, 177 with code 270 (Aerial for GPS)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove door trim on right front door | AR72.10-P-6575MFA | |

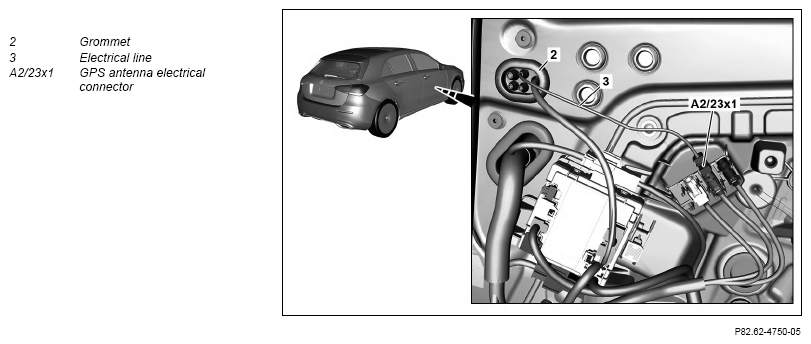

| 2 | Release and disconnect GPS antenna electrical connector (A2/23x1) | ||
| 3 | Remove grommet (2) | ||
| 4 | Remove right mirror glass | AR88.70-P-9020MFA | |
| 5 | Remove screw/bolts (4) | ||

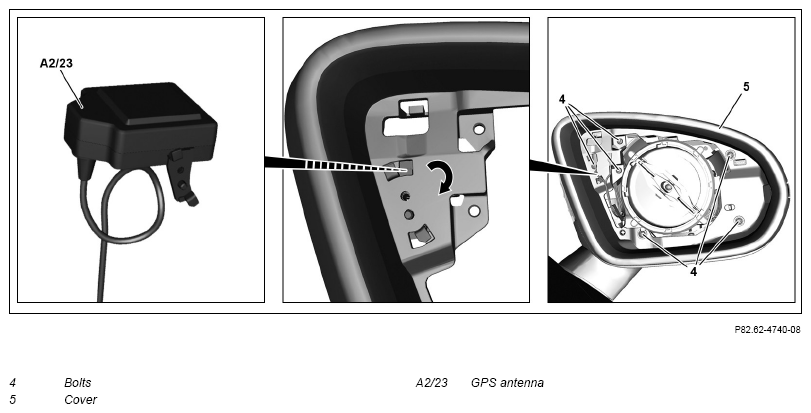

| 6 | Unclip cover (5) with GPS antenna (A2/23), route electric line (3) out of right front door (5) and remove cover with GPS antenna (A2/23) | AR88.70-P-9040MFA | |
| Check catch hooks for damage, if damaged ↓ Replace cover(5). |
|||
| 7 | Turn GPS antenna (A2/23) in direction of arrow and remove from cover (5) | ||
| 8 | Install in the reverse order |
