Remove/Install Gesture Camera/Hand Motion Sensor - AR82.90-P-0003MFA
Model 118, 177, 243, 247
with code 77B (Contactless gesture control at front)
Shown on model 118 with code 77B (Contactless gesture recognition system at front)

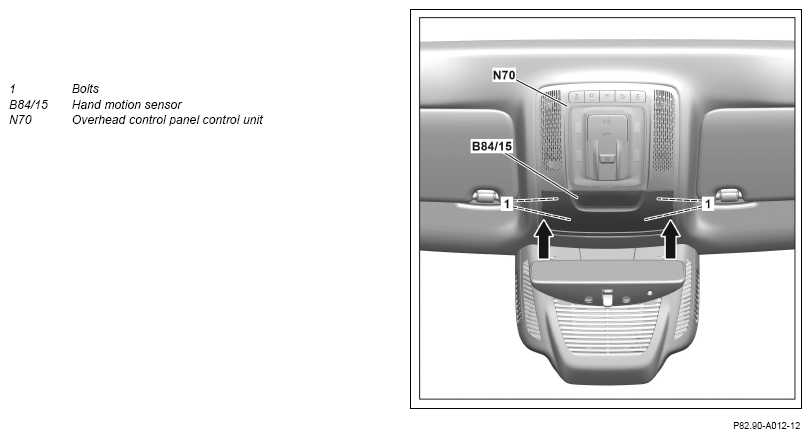

Fig 1: Gesture Camera/Hand Motion Sensor Components Location Components Location - Model 177 With Code 77B (Shown On Model 118)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove overhead control panel control unit (N70). | AR82.20-P-1000MFA | |
| 2 | Remove bolts (1). | ||
| 3 | Unclip hand motion sensor (B84/15) from overhead control panel control unit (N70) (arrows). | Fig 2 | |
| 4 | Install in the reverse order. | ||
| 5 | Perform commissioning of hand motion | When replacing hand motion sensor (B84/15). | |
| sensor (B84/15). | |||
| AD00.00-P-2000-06MFA |
