Remove/Install TV Antenna Amplifier Under Right A-Pillar Trim - AR82.62-P-8305MFA

Model 118, 177, 243, 247

with code 498 (Japanese version)

with code 865 (digital TV)

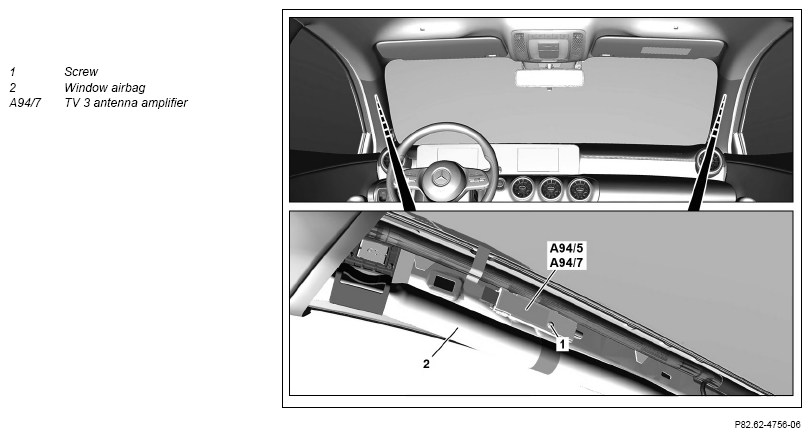

Shown on model 177.0

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove right A-pillar trim.		AR68.30-P-4050MFA
2	Loosen screw/bolt (1).	The screw (1) remains on the TV 3 antenna amplifier (A94/7), but it must be completely unscrewed.
3	Unclip TV 3 antenna amplifier (A94/7) and release and disconnect electrical connector.	Do not damage window airbag (2).
		Dismantling tool	Fig 1
4	Install in the reverse order.

Fig 1: Identifying Dismantling Tool (000 589 95 63 00)

Courtesy of MERCEDES-BENZ USA
