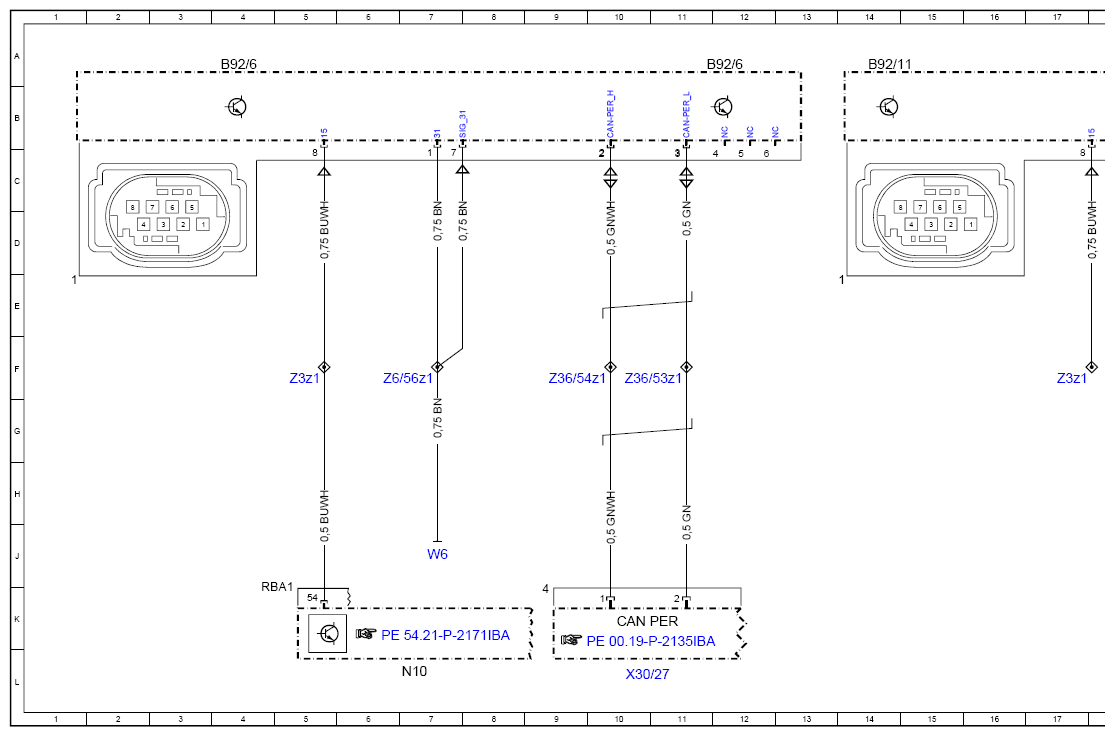

Blind Spot Assist Wiring Diagram - PE54.71-P-2100-97IBA
Model 177
with code 234 (Blind Spot Assist)

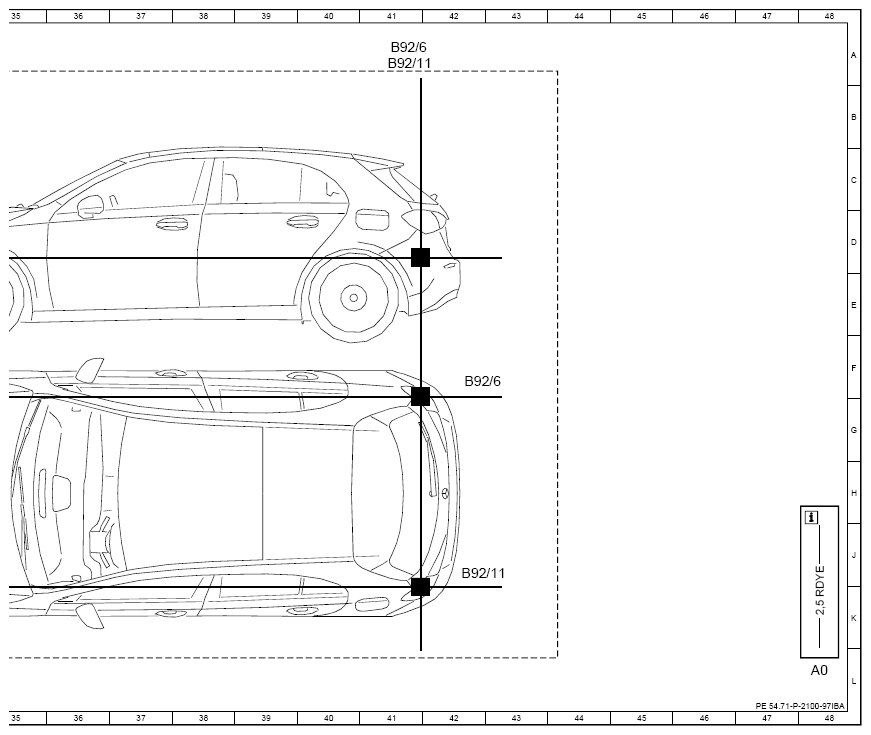

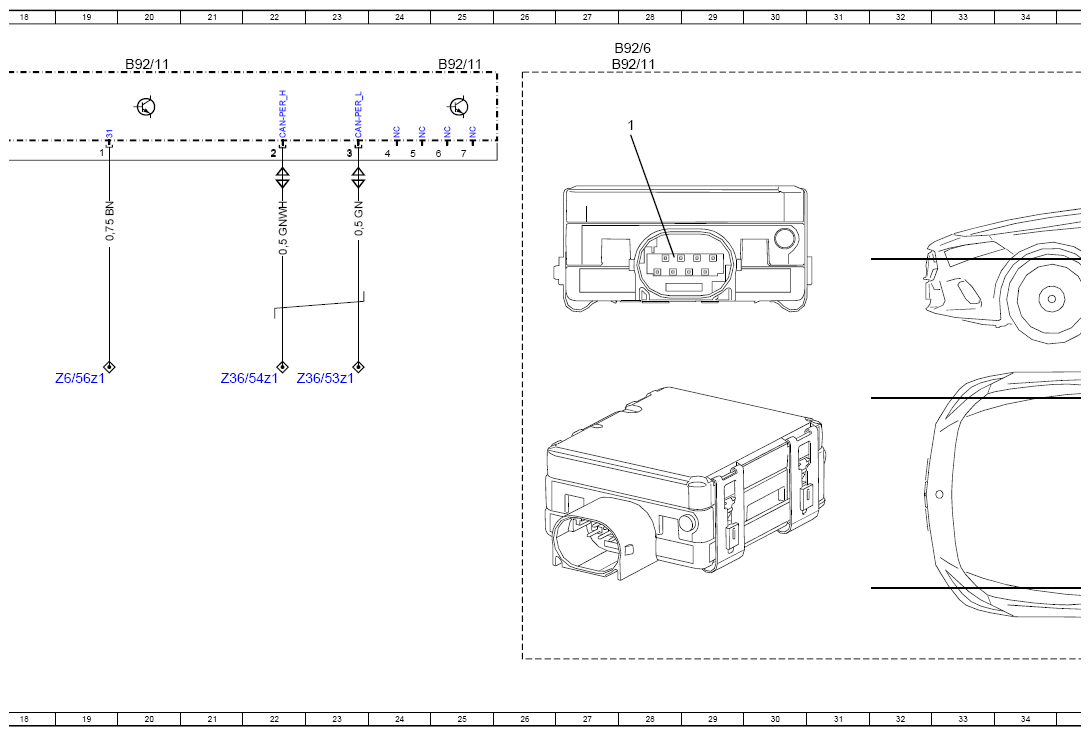

Radar sensor B92/6, B92/11
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Use of wiring diagrams | 48L |
| B92/11 | Left outer rear integrated radar sensor | 20A |
| B92/11 | Left outer rear integrated radar sensor | 25A |
| B92/11 | Left outer rear integrated radar sensor | 14A |
| B92/11 | Left outer rear integrated radar sensor | 41A |
| B92/11 | Left outer rear integrated radar sensor | 42J |
| B92/11 | Left outer rear integrated radar sensor | 28A |
| B92/6 | Right outer rear integrated radar sensor | 12A |
| B92/6 | Right outer rear integrated radar sensor | 4A |
| B92/6 | Right outer rear integrated radar sensor | 42F |
| B92/6 | Right outer rear integrated radar sensor | 41A |
| B92/6 | Right outer rear integrated radar sensor | 28A |
| CAN PER | Peripherals CAN | 10K |
| N10 | Central control module | 7L |
| W6 | Left wheel arch trunk ground point | 7J |
| X30/27 | Peripherals CAN (CAN PER) potential distributor electrical connector | 10L |
| Z36/53z1 | Periphery CAN (CAN PER) low connector sleeve | 23F |
| Z36/53z1 | Periphery CAN (CAN PER) low connector sleeve | 11F |
| Z36/54z1 | Periphery CAN (CAN PER) high connector sleeve | 22F |
| Z36/54z1 | Periphery CAN (CAN PER) high connector sleeve | 9F |
| Z3z1 | Tml. 15 connector sleeve | 17F |
| Z3z1 | Tml. 15 connector sleeve | 5F |
| Z6/56z1 | Circuit 31 connector sleeve | 19F |
| Z6/56z1 | Circuit 31 connector sleeve | 7F |
