(Analysis Sheet For 48 V Lithium-Ion Battery, Form - OF54.10-P-3000-15FR)
Model 167, 192, 205, 206, 213, 223, 232, 238, 253, 257, 290
| Analysis sheet for "Safe transportation" for 48 V battery (G1/3) | |
|---|---|
| Company-owned sales and service outlet/agency: | |
| Name of assessor (block capitals): | |
| Telephone number: | |
| Repair order number: | |
| Vehicle identification number: | |

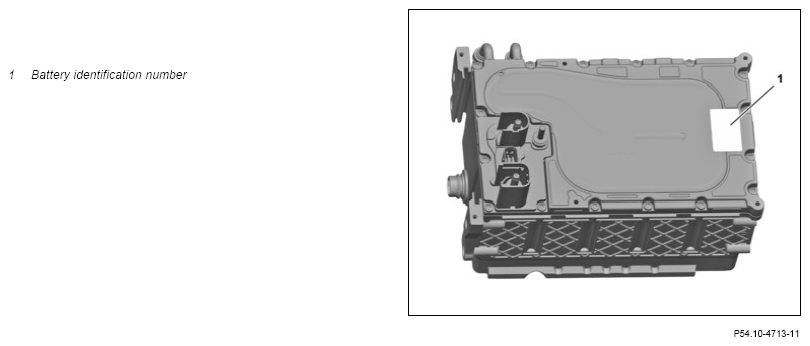

| Battery identification number: | |
|
IMPORTANT:
Fill out all fields!
|
|
Shown on model 206
Visual inspections
The visual inspection provides initial important information about the condition. Wear protective equipment for inspection as per the notes in the repair instructions.

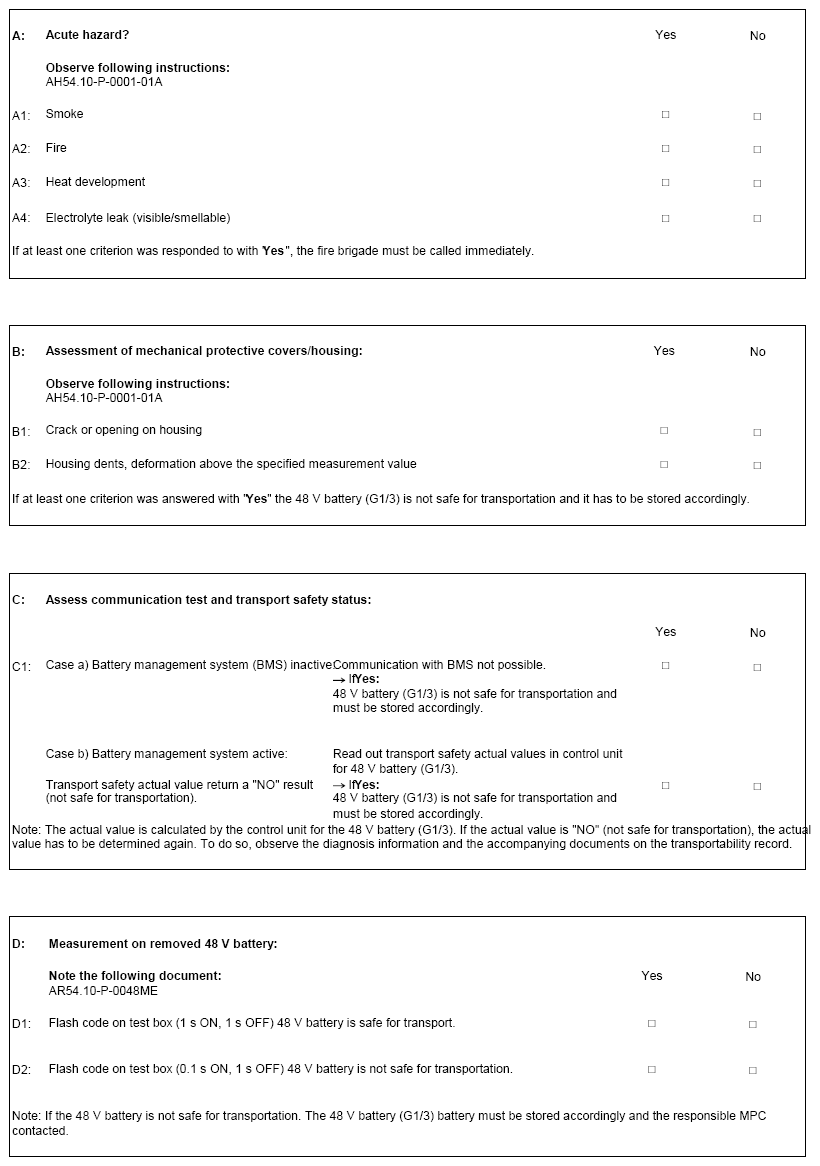

ASSESSMENT STEPS
If the 48 V battery (G1/3) is not safe for transportation, it must be stored in accordance with the conditions given in the guidelines for safe handling of a 48 V battery (G1/3). Also contact the responsible MPC or general distributor.
If the 48 V battery (G1/3) has been assessed as safe for transport, the 48 V battery (G1/3) can be transported safely.
