Wiring Diagram Of Hand Movement Sensor Control Unit - PE54.21-P-2160-97IBA
Model 177
with code 318K (Gesture control at front)

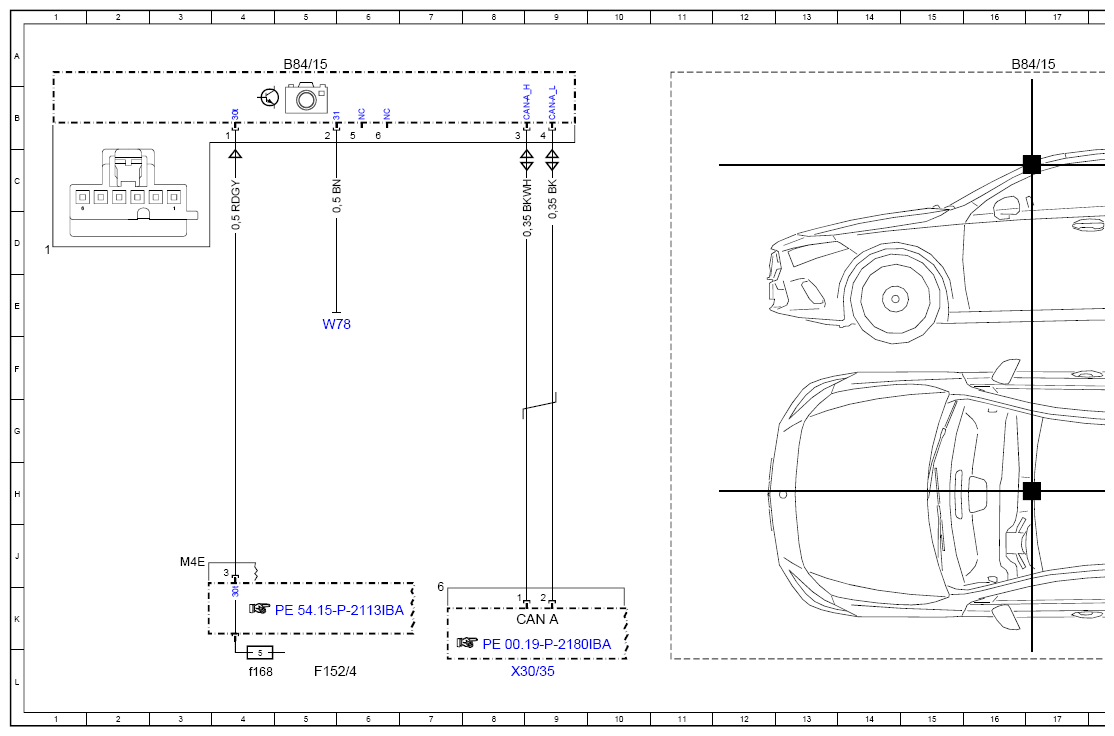

Control unit B84/15
| Code: | Designation: | Position: |
|---|---|---|

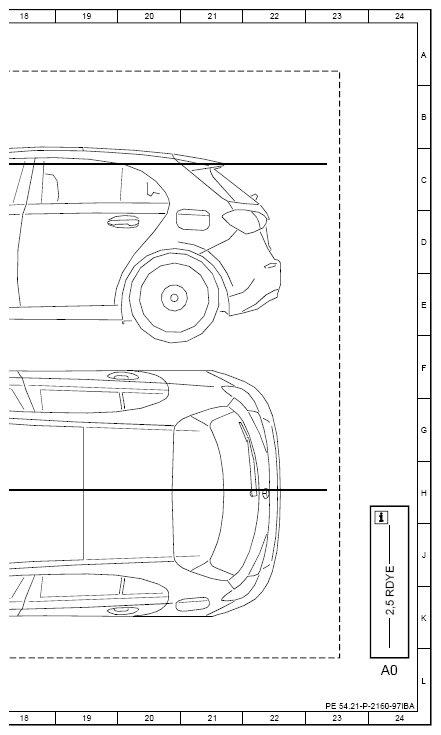

| A0 | Use of wiring diagrams | 24L |
| B84/15 | Hand motion sensor | 5A |
| B84/15 | Hand motion sensor | 16A |
| CAN A | Telematics CAN | 9K |
| F152/4 | Vehicle interior fuse and relay module | 5L |
| F152/4f168 | Electrical fuse 168 | 4L |
| W78 | Roof ground point 1 | 5E |
| X30/35 | Telematics CAN potential distributor (CAN A) | 8L |
