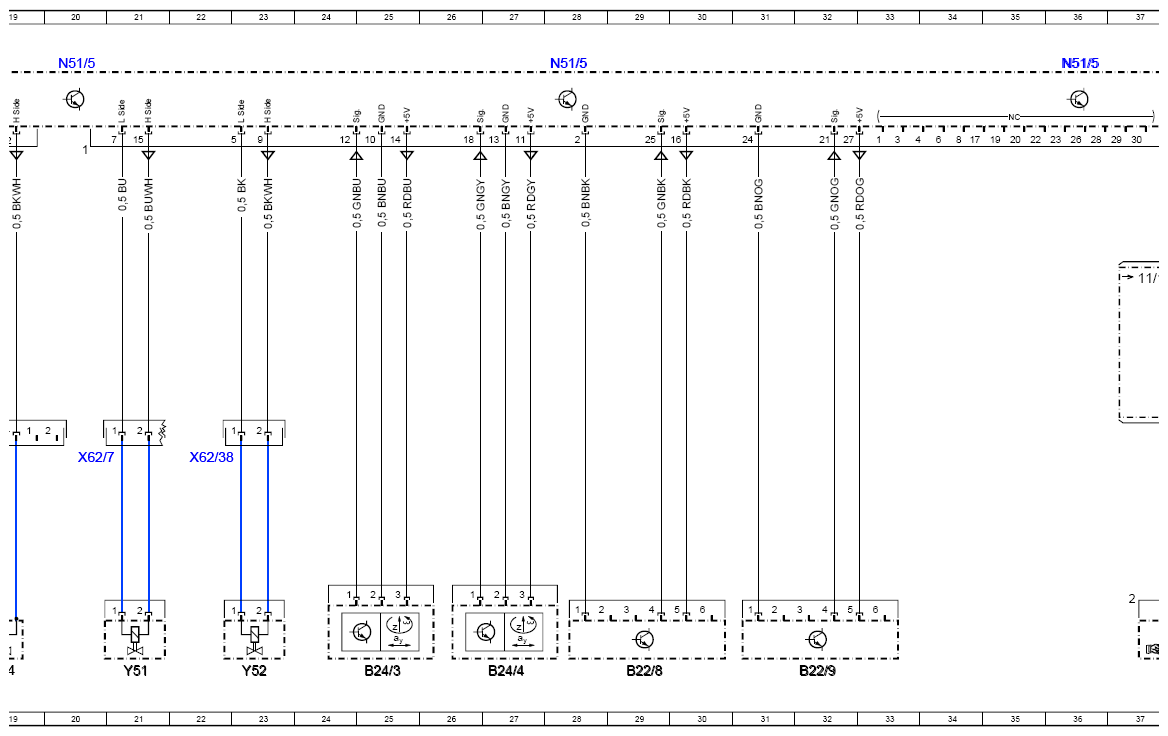

(Wiring Diagram For Adaptive Damping System (ADS) Control Unit - PE32.32-P-2101-97TAA)
Model 172.4 up to 2/29/16 with code 483 (ADVANCED AGILITY package) Control unit N51/5
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 48L |
| B22/10 | Right rear level sensor | 12L |
| B22/7 | Left rear level sensor | 9L |
| B22/8 | Left front level sensor | 29L |
| B22/9 | Right front level sensor | 32L |
| B24/3 | Left front body lateral acceleration sensor | 25L |
| B24/4 | Right front body lateral acceleration sensor | 27L |
| B24/6 | Right rear body lateral acceleration sensor | 7L |
| CAN E | Chassis CAN | 38K |
| N10/2 | Rear SAM control unit with fuse and relay module | 3L |
| N10/2f40 | Fuse 40 | 2L |
| N51/5 | Adaptive damping system control unit | 4A |
| N51/5 | Adaptive damping system control unit | 12A |
| N51/5 | Adaptive damping system control unit | 20A C |
| N51/5 | Adaptive damping system control unit | 28A |
| N51/5 | Adaptive damping system control unit | 36A |
| W6 | Left wheel arch trunk ground point | 3F |
| W7 | Right wheelhouse trunk ground point | 3E |
| X30/30 | Vehicle floor chassis CAN voltage distributor electrical connector | 38L |
| X62/38 | Right front axle adaptive damping system electrical connector | 22H |
| X62/7 | Front axle electrical connector, left distributor | 20H |
| X62/8 | Rear axle electrical distributor electrical connector | 16H |
| X62/8 | Rear axle electrical distributor electrical connector | 18H |
| Y51 | Left front axle damping valve unit | 21L |
| Y52 | Right front axle damping valve unit | 23L |
| Y53 | Left rear axle damping valve unit | 17L |
| Y54 | Right rear axle damping valve unit | 19L |
