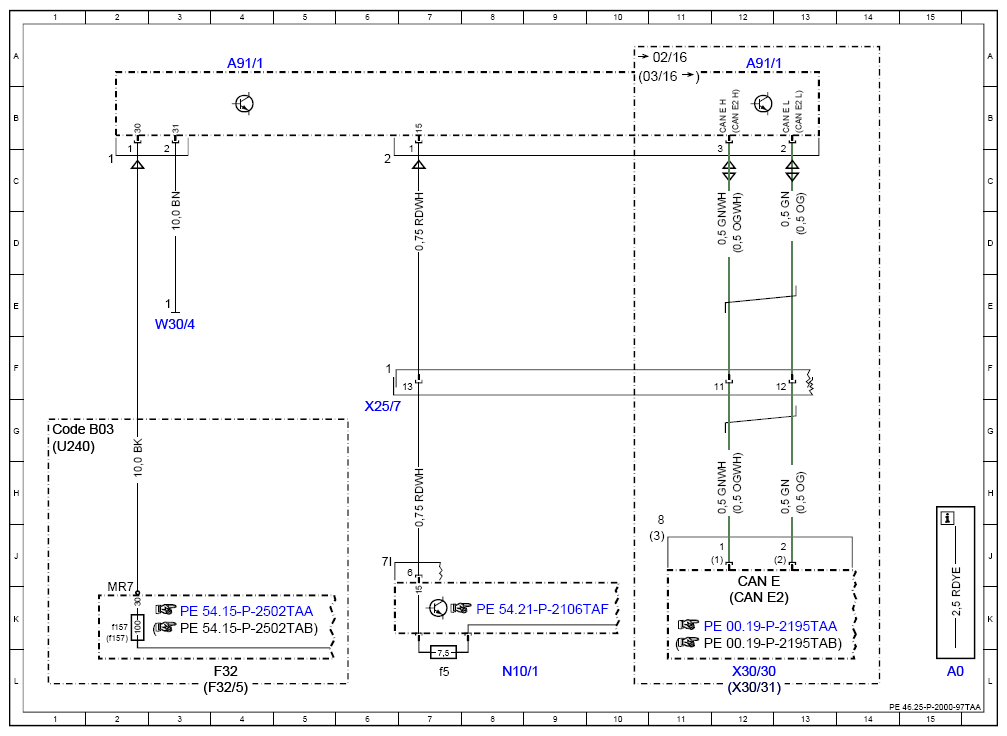

Wiring Diagram For Electrohydraulic Power Steering - PE46.25-P-2000-97TAA
Model 172.4 as of 6/1/15 with code 213 (Direct-Steer system)
| Code: | Designation: | Position: |
|---|---|---|
| A0 | Color code key | 15L |
| A91/1 | Electrohydraulic Power steering | 4A |
| A91/1 | Electrohydraulic Power steering | 12A |
| CAN E | Chassis CAN | 12J |
| CAN E2 | Chassis CAN 2 | 12K |
| Code B03 | ECO start/stop function | 1G |
| F32 | Front prefuse | 4L |
| F32/5 | Prefuse box without ECO start/stop function | 4L |
| F32/5f157 | Prefuse 157 | 2K |
| F32f157 | Prefuse 157 | 2K |
| N10/1 | Front SAM control unit with fuse and relay module | 8L |
| N10/1f5 | Fuse 5 | 7L |
| U240 | Valid for all except ECO start/stop function | 1G |
| W30/4 | Power steering pump ground point | 3E |
| X25/7 | Engine compartment/FFS [RBA] electrical connector | 6G |
| X30/30 | Vehicle floor chassis CAN voltage distributor electrical connector | 12L |
| X30/31 | Chassis 1 CAN (CAN E2) potential distributor electrical connector | 12L |
